MFG-2000 Series User Manual
98
Parameter
settings

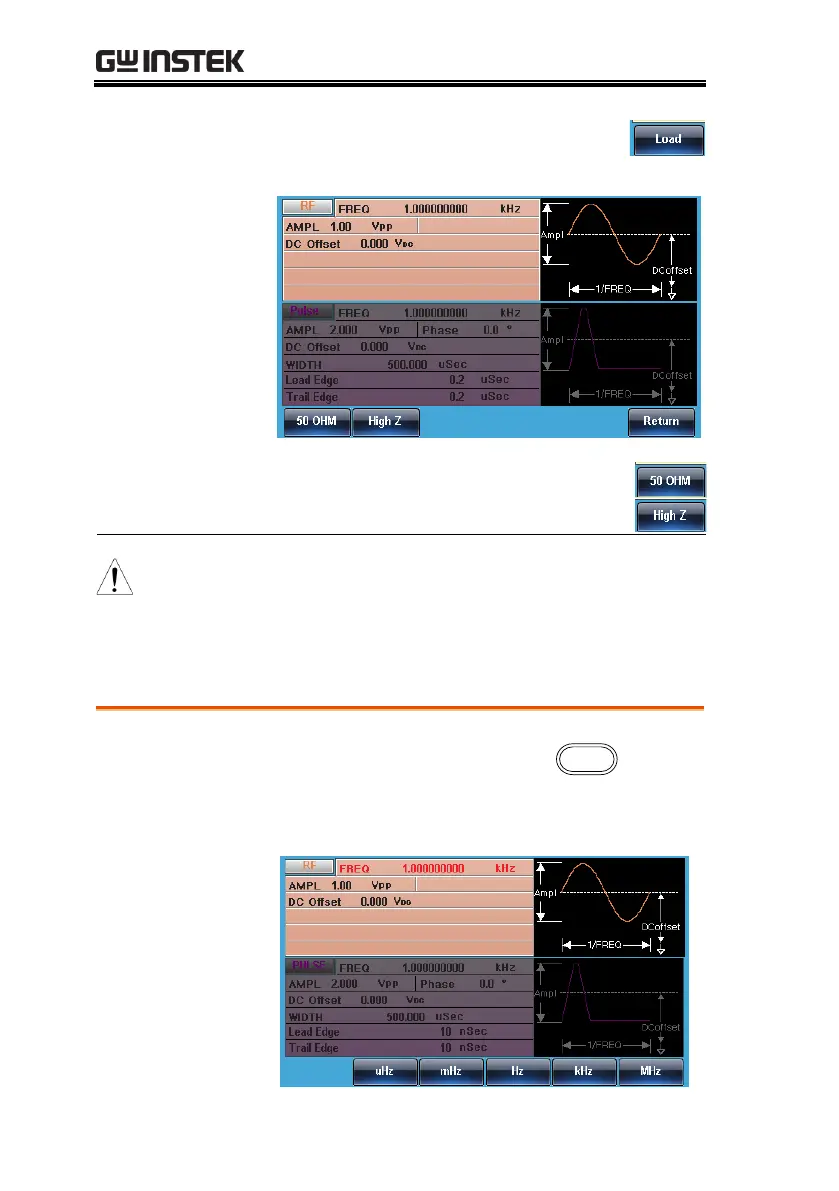

2. Load setting. Select the corresponding
channel and then press the F1(Load) .
3. Press the F1(50OHM) or F2(High Z) to
set the Load value.
AMPL is twice under High Z loading than that at 50
ohm. Users can check load setting state for each
channel in UTIL.
Setting the Frequency
Panel Operation
1. Press the FREQ/Rate key.
Q
2. The FREQ parameter will become highlighted
in the parameter window.
