GW Instek MFG-2000 Series - Modulating Waveform Frequency

MODULATION
169
Modulating Waveform Frequency
The frequency of the modulating waveform (SUM Frequency) can
be set from 2mHz to 20kHz. The function generator accepts internal
and external SUM sources.

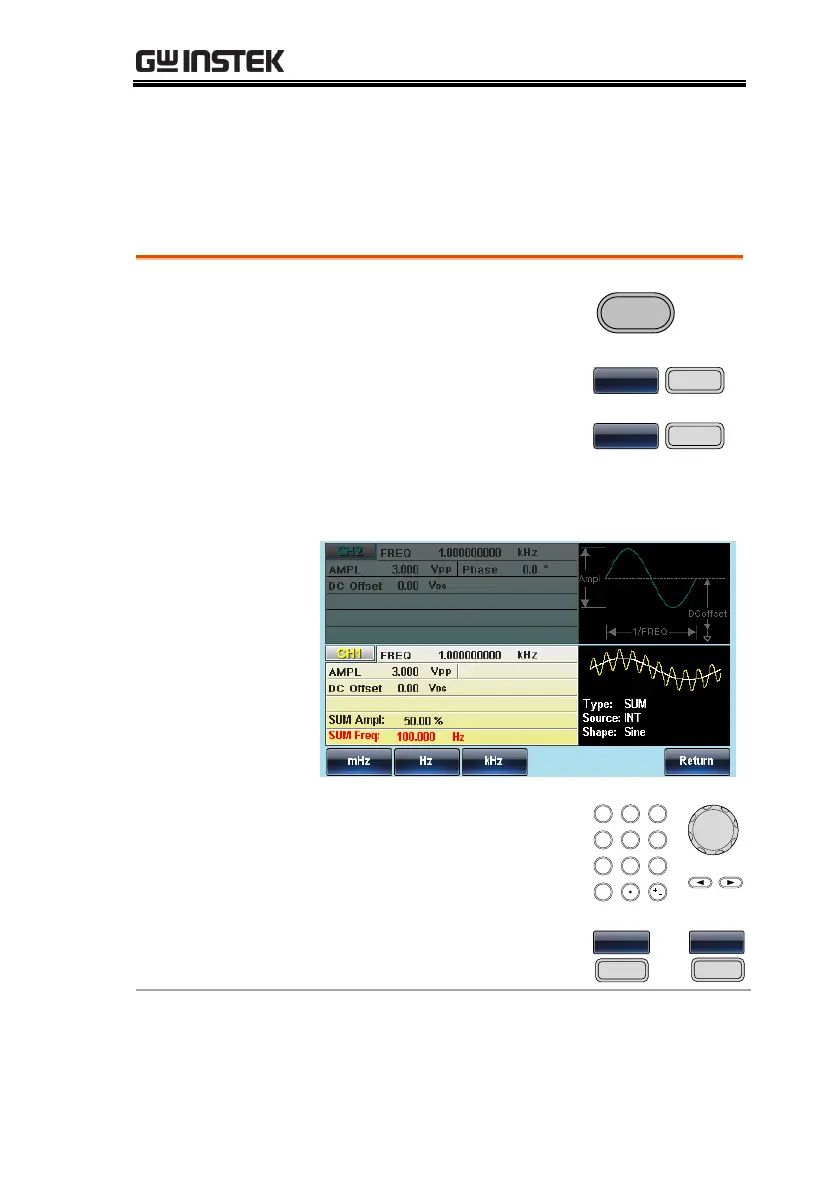

Panel Operation
1. Press the MOD key.

2. Press F5 (SUM).


3. Press F3 (SUM Freq).
q

4. The SUM Freq parameter will become
highlighted in the parameter window.
5. Use the arrow keys and scroll
wheel or number pad to enter
the SUM frequency.

/


 



6. Press F1~F3 to select the
frequency units.
z

~
kz

Range
Modulating range
2mHz~20kHz
Default frequency
100Hz
