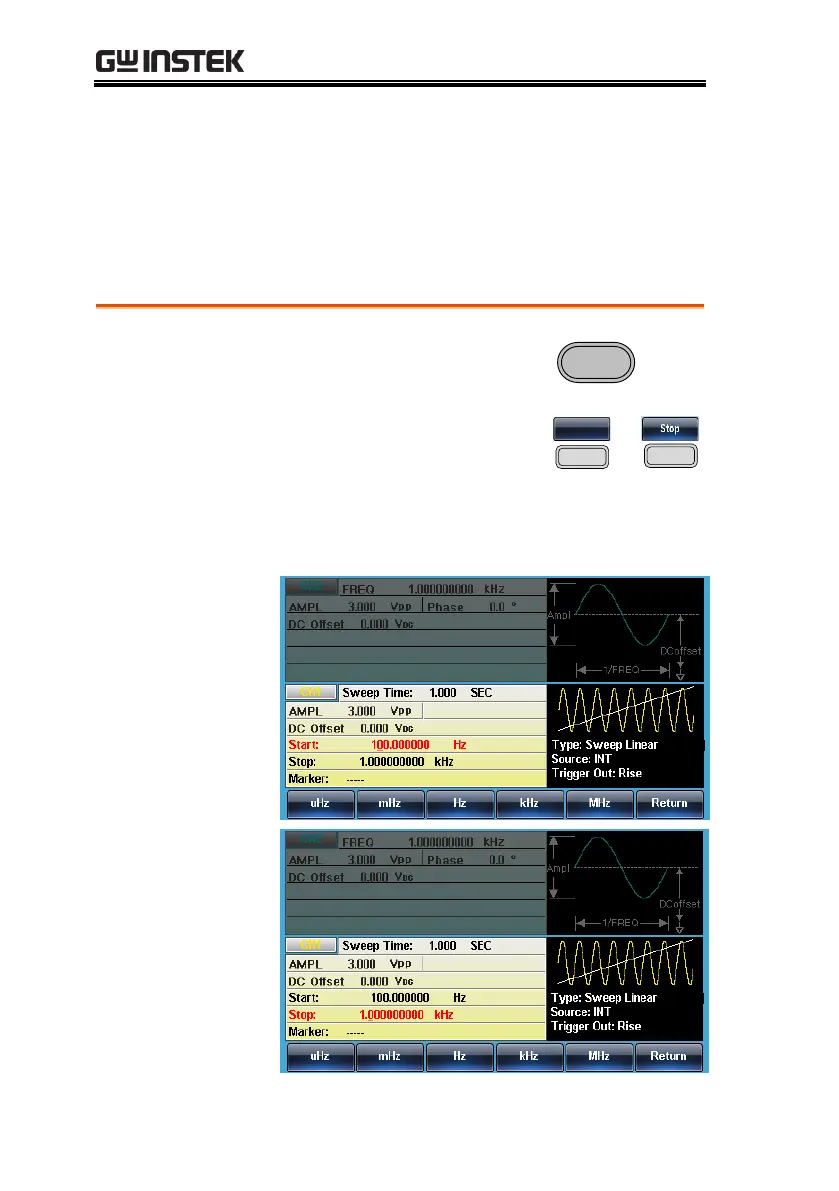

Setting Start and Stop Frequency
The start and stop frequencies define the upper and lower sweep
limits. The function generator will sweep from the start through to
the stop frequency and cycle back to the start frequency. The sweep
is phase continuous over the full sweep range (1μHz-max
Frequency).
Panel Operation
1. Press the SWEEP key.

2. Press F3 (Start) or F4 (Stop) to
selelect the start or stop
frequency.
a

~

3. The Start or Stop parameter will become
highlighted in the parameter window.
Start
Stop
