MFG-2000 Series User Manual
132

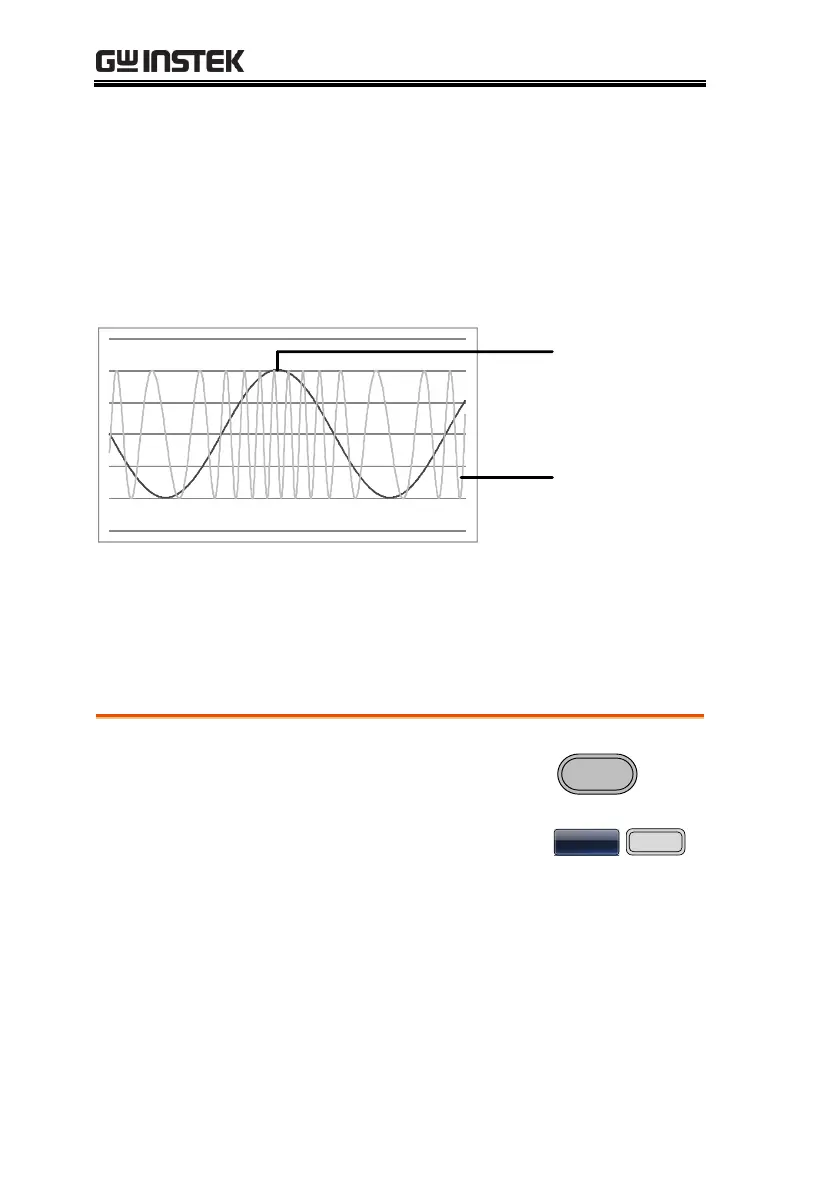

Frequency Modulation(FM)
A FM waveform is produced from a carrier waveform and a
modulating waveform. The instantaneous frequency of the carrier
waveform varies with the magnitude of the modulating waveform.
When using the MFG-2000 function generator, only one type of
modulated waveform can be created at any one time.
Modulated Carrier
Waveform
Modulating
waveform
Selecting Frequency Modulation (FM)
When FM is selected, the modulated waveform depends on the
carrier frequency, the output amplitude and offset voltage.
Panel Operation
1. Press the MOD key.

2. Press F2 (FM).


