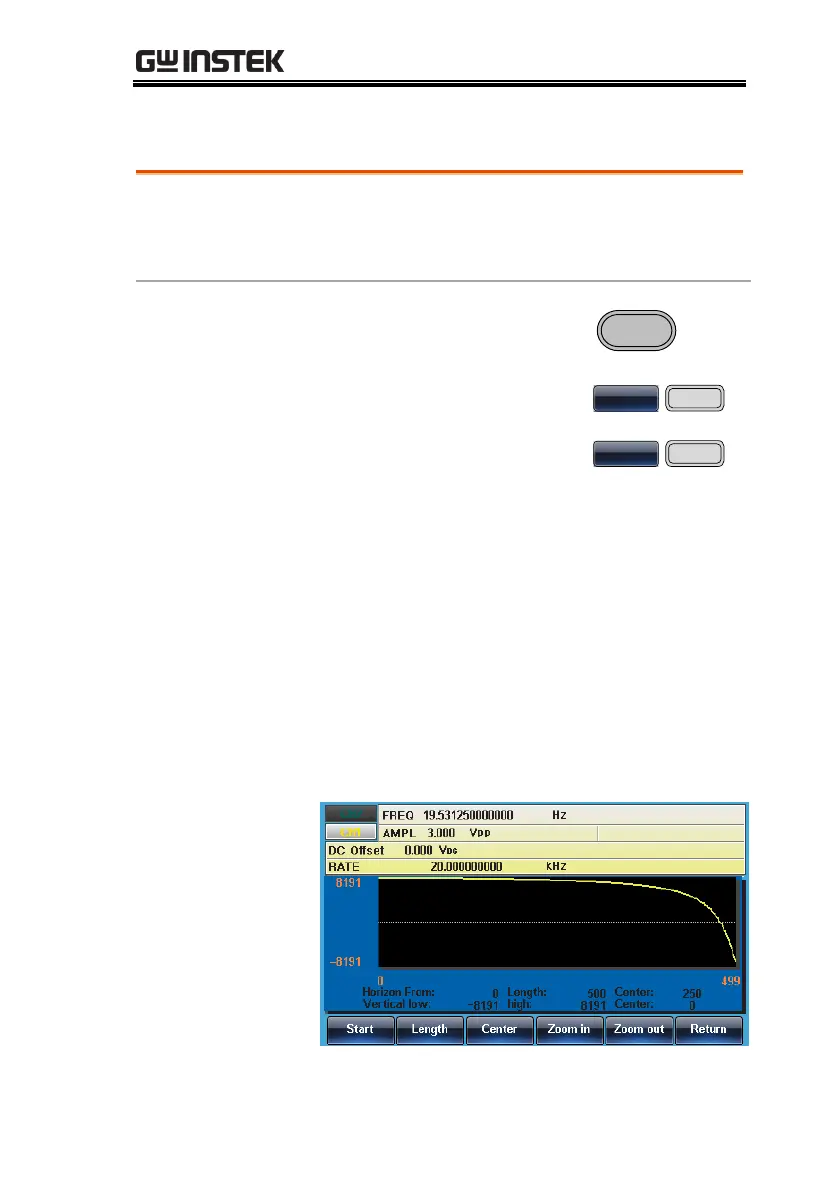

GW Instek MFG-2000 Series - Page Navigation (Back Page)

ARBITRARY WAVEFORMS
225
Page Navigation (Back Page)
Background
When viewing the waveform, the display window
can be moved forward and backward using the
Next/Back Page functions.
Panel Operation
1. Press the ARB key.

2. Press F1 (Display).
Da

3. Press F4 (Back Page) to move
the display window one view
length backward.
Bakag

Horizontal From* = Horizontal From - Length
Center*= Center – Length
*Length is not less than 2
Below, shows the display after Back Page has been
pressed.
Horizon From: 200  0
Length: 500
Center:450 250
