GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
22

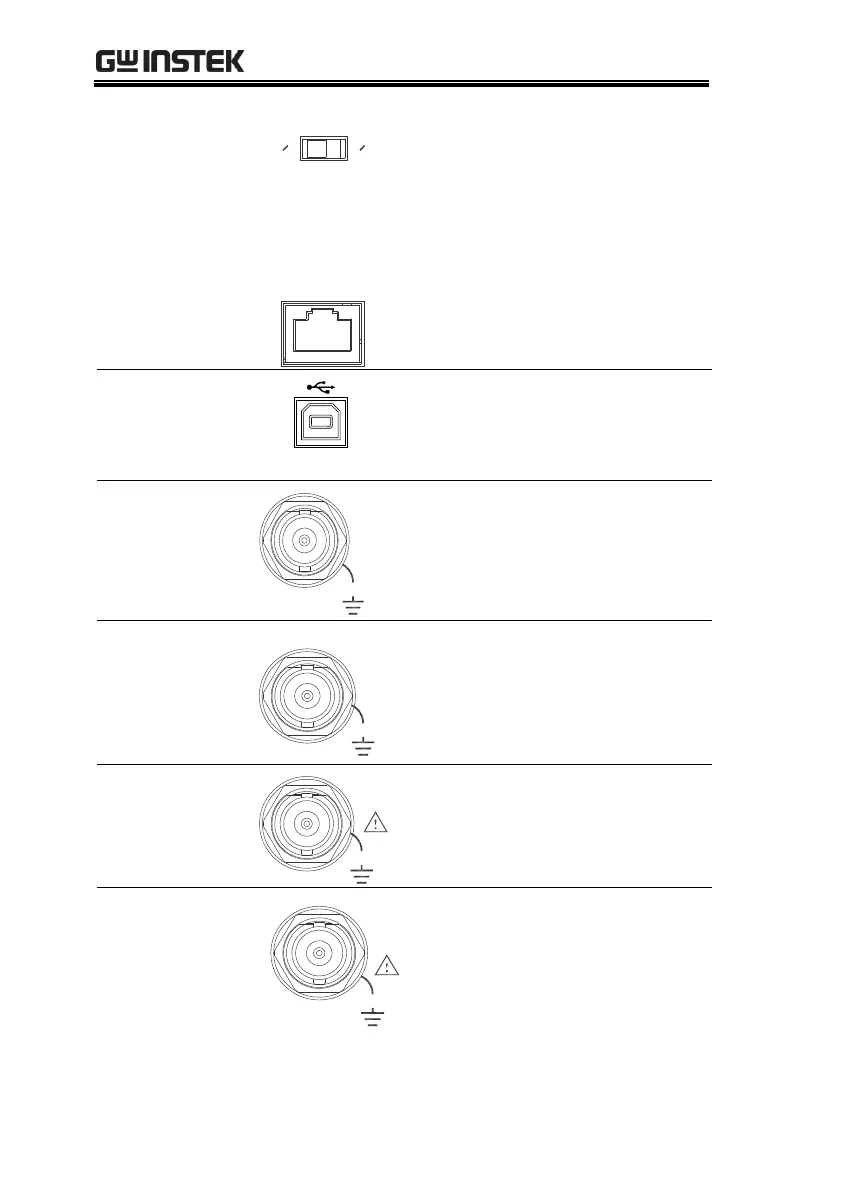

Power Switch

       




        
      
       

        
Selects AC voltage: 100V~120V
Or 220V~240V.
This function can only be used
in the models with power
amplifier machines such as
MFG-2120MA, MFG-2260MFA,
MFG-2260MRA
LAN Port
  
          
      
     
        

      
     
                                    
                               
                  
                                    
     
              
          
    
   
     

     

   
     
                         
   
   
   
Power socket input
Power switch
Fan
Trigger input
Modulation input
Counter input
Power amplifer input
Power amplifer output
SYNC input
USB port
LAN
The LAN port is used for
remote control over a network
(MFG-22XX only)
USB Device
Port
USB type-B device port is used
to connect the function
generator to a PC for remote
control.
Counter Input

     
     
      
    
   
     
  

     

     
     
     
Frequency counter input.
MOD Input

     
     
      
    
   
     
  

     

     
     
     
Please refer to the tables on
page 23.
Power
Amplifier in

     
     
      
    
   
     
  

     

     
     
     
Power Amplifier input port
Power
Amplifier out

     
     
     
    
   
     
  

     

     
     
     
Power Amplifier output port
