GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
96
Parameter
settings

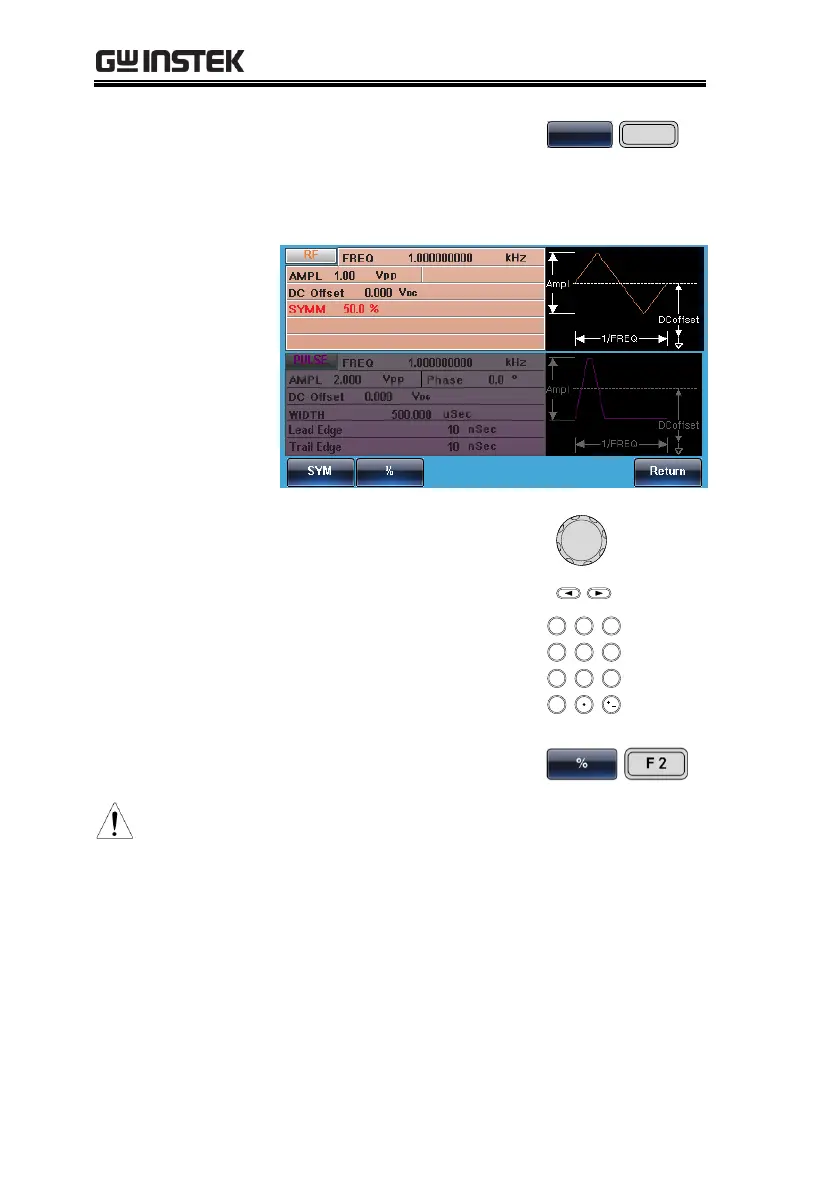

3. Press F1 (SYM). The SYM
parameter will be
highlighted in the parameter
window.
Y

4. There are two ways to set its
value :
a,Use the arrow keys and
scroll wheel
b, number pad to enter the
Duty range.

/


 




/


 



Press F2 (%) to choose %
units.
Symmetry Range
0%~100%
5. To set parameter
Load/Frequency/Amplitude/DC Offset,
please see page 97 - 101.
