Short Correction
5

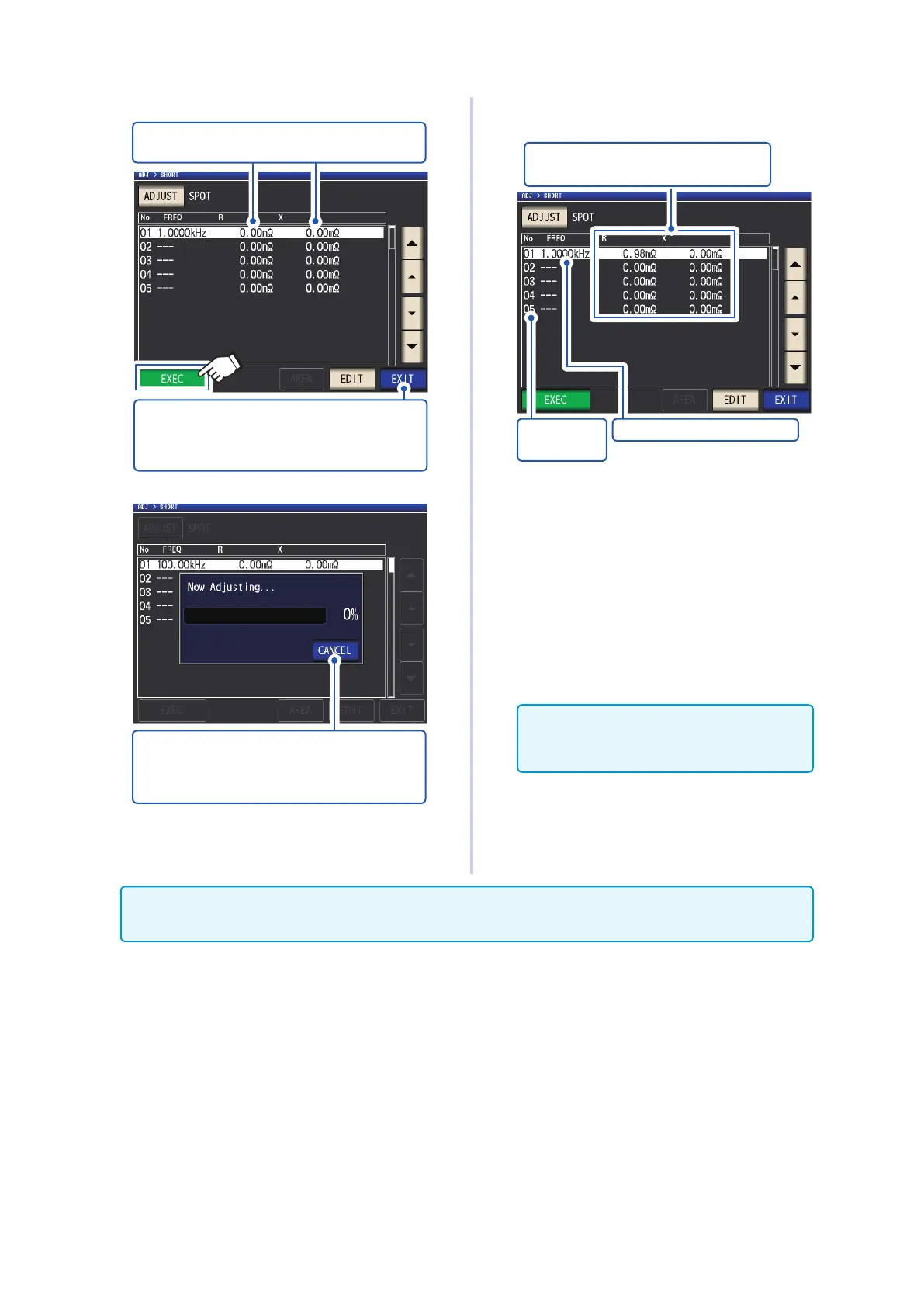

Touch the EXEC key.
Touch when you wish to cancel correction.
(The display will return to the screen shown
in step 2, and the short correction value will
remain unchanged.)
If correction has never been performed, the
correction values become 0.
Correction starts.
Touch when you wish to cancel correction.
(The display will return to the screen shown in
step 2, and the short correction value will remain
unchanged.)
Compensation value acquisition time var-
ies with the measurement frequency and
number of points.
The next screen will be displayed once cor-
rection has completed normally.
Correction results
(Effective resistance, reactance)
Correction
No.
Measurement frequency
• You can check the effective resistance
and reactance for each correction point
with the
keys.
• The valid correction range for impedance
is 1 k
Ω
or less. Correction cannot be
performed if the measured value (cable
or xture residual impedance) is 1 k
Ω
or
greater.
6
Touch the EXIT key twice.
Displays the measurement screen.
• If correction does not complete normally:
(p. 109)
• To disable the correction value: (p. 111)
For spot compensation, correction will be valid only when the measurement frequency and spot
correction frequency match.
