Setting Measurement Conditions (basic settings)
When measuring conductivity and permittivity
Set the parameters to
σ
(conductivity) and
ε
(permittivity) (p. 39) and set the conditions used to
calculate conductivity and permittivity.
Conductivity
Value indicating the ease with which electricity is conducted by a substance
Permittivity
Value indicating the ease with which an electric eld can be formed in a sub-
stance (dielectric material)
Screen display method (For more information, see p. 24):

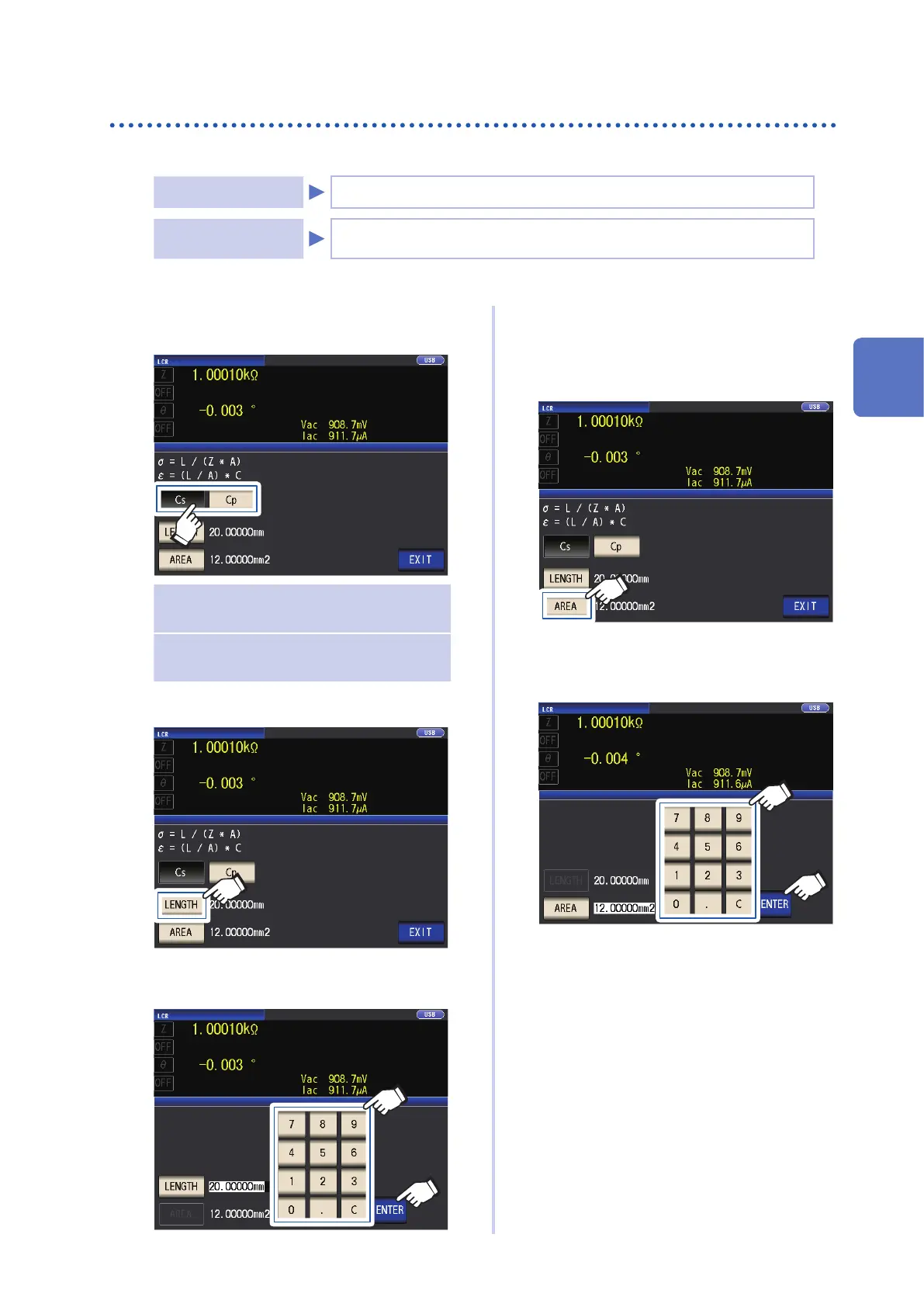

(Measurement screen) SET key>(SET screen) ADVANCED tab>σε key
1
Select the capacitance to use when cal-
culating the dielectric constant.
Cs Series equivalent circuit mode ca-
pacitance (F)
Cp Parallel equivalent circuit mode ca-
pacitance (F)
2
Touch the LENGTH key.
3
Enter the length of the measurement
sample and touch the ENTER key.
1
2
Settable range:
0.000001 mm to 1000000 mm
4
Touch the AREA key.
5
Enter the crosssectional area of the
measurement sample and touch the
ENTER key.
1
2
Settable range:
0.000001 mm
2
to 1000000 mm
2
)
6
Touch the EXIT key twice.
Displays the measurement screen.
3
Performing Measurements in LCR Mode
