Internal Circuitry
9.3 Internal Circuitry
This section provides I/O circuit diagrams, electrical specications, and example connections for
the instrument.

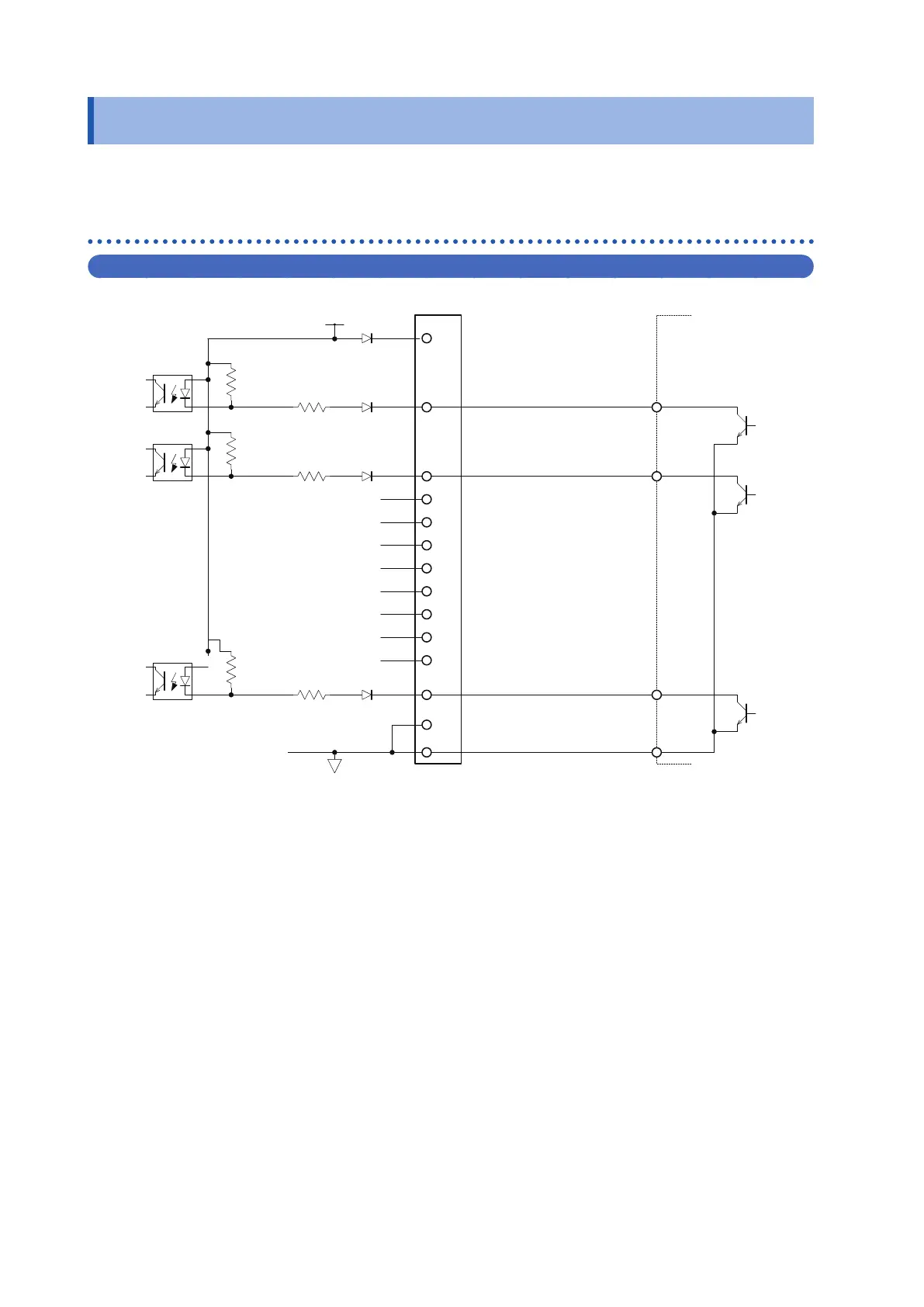

Circuit diagrams
Input circuit
Internally Isolated 5 V
8 ISO_5 V
Internally Isolated Common
Signal Ground
2kΩ
1kΩ
PLC, etc.
Output
Common
22
27 ISO_COM
9 ISO_COM
.
.
.
.
.
.
.
.
.
IM3536
1
4
5
6
21
23
24
26
(
Do not connect external power )
25
20
