Loading Measurement Conditions and Correction Values (Panel Load Function)
6.2 Loading Measurement Conditions and Correc-
tion Values (Panel Load Function)
This section describes how to load panel data that has been saved in the instrument’s memory.
The instrument’s settings will be replaced with the loaded data settings.

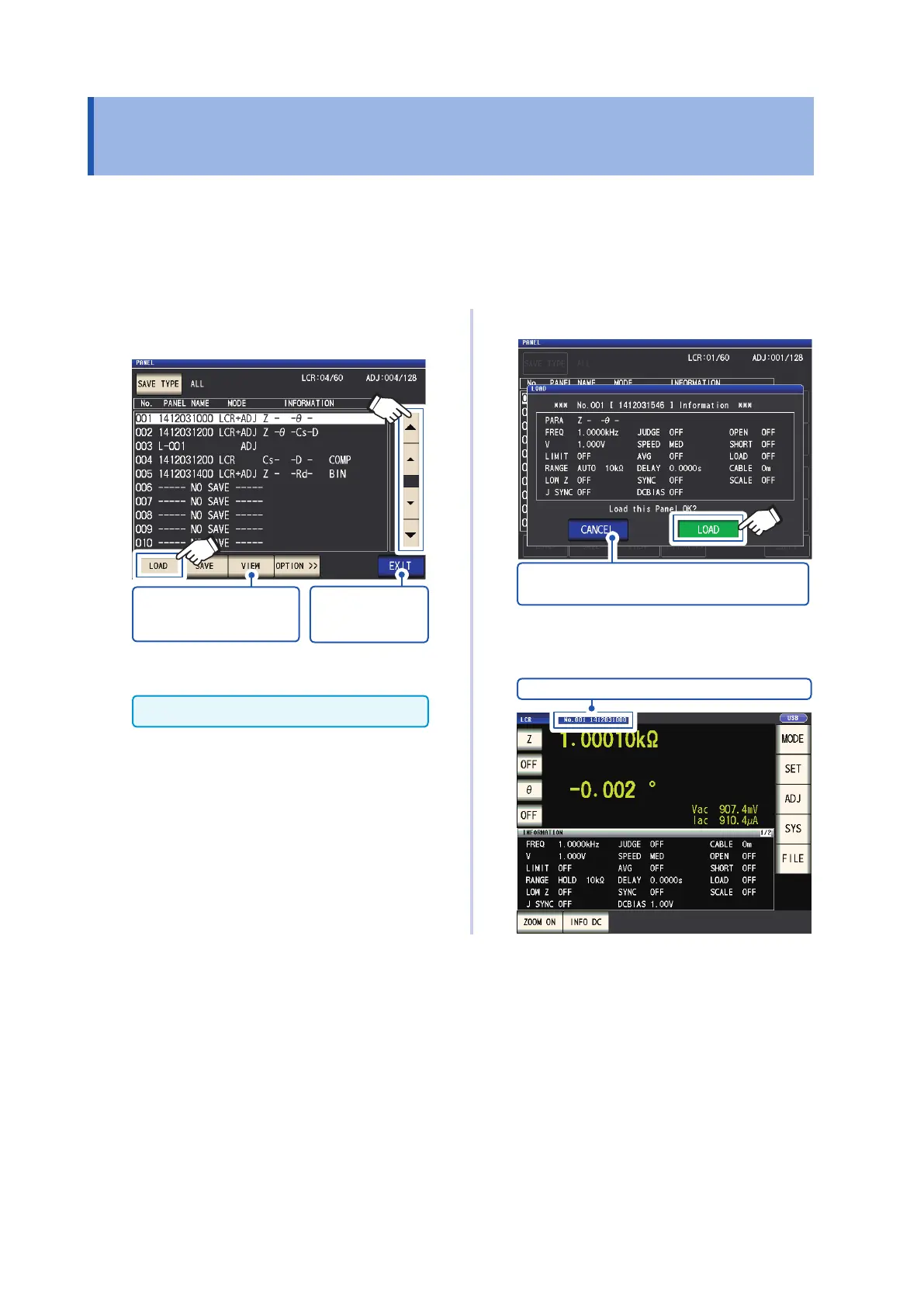

Screen display method (For more information, see p. 24.)
(Measurement screen) SET key>(SET screen) ADVANCED tab>PANEL key
1
Select the panel number to load with the
keys and then touch the LOAD key.
1
2
Touch when you wish to
check the contents of saved
panels. (See p. 127)
Touch when you
wish to cancel the
load operation.
Panel number display range:
No. 001 to No. 128
See "PANEL screen layout" (p. 125).
2
Touch the LOAD key.
Cancels the load operation and closes the dialog
box.
The data will start to load.
Once the load operation has completed,
the measurement screen will be displayed.
Displays the panel number that was loaded.
To Next Page
