Product Overview and Features
1
Overview
1.1 Product Overview and Features

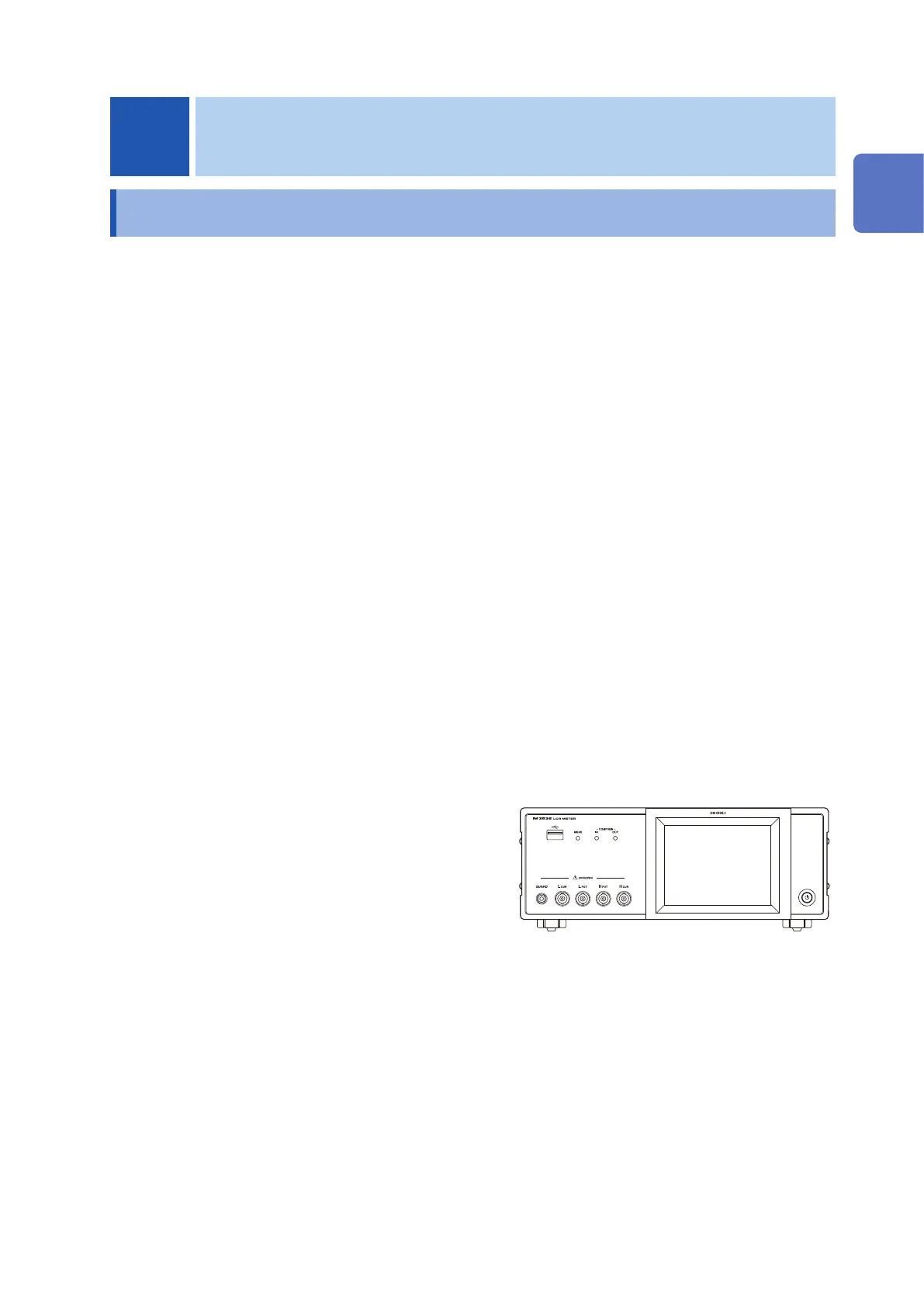

The HIOKI IM3536 LCR Meter is an impedance measuring instrument which achieves high speed
and high accuracy.
It can be used in a wide range of applications thanks to its broad range of measurement frequen-
cies and its ability to set measurement conditions based on measurement signal levels.
Wide range of measurement condi-
tions
Measurement frequencies: 4 Hz to 8 MHz
Measurement signal levels: 10 mV to 5 V
Capable of high-speed measure-
ment
Up to 1 ms (typical values)
Continuous measurement mode
Allows measurements to be performed con-
tinuously using precongured measurement
conditions. This function enables, for example,
making pass/fail judgment with different mea-
surement conditions.
(Example: Performing C-D measurement with
120 Hz and Rs measurement with 100 kHz in
succession)
Various interfaces supported
Supports the most suitable EXT I/O (handler
interface) for production lines, USB, GP-IB,
RS-232C and LAN.
Comparator function (p. 69)
Makes HI/IN/LO judgments based on mea-
sured values and two precongured param-
eters.
BIN function (p. 74)
Ranks measured values in up to 10 categories
based on 2 precongured parameters.
Low impedance can be measured
with high degree of accuracy
Allows you to congure the instrument to mea-
sure low impedance values at a high level of
precision. (p. 55)
