Setting Display Parameters
3
Performing Measurements in
LCR Mode
The LCR mode allows you to measure the impedance, phase angle, and other items by applying
any frequency or level (effective value) signal to the element you want to measure. This function is
suitable for evaluating the passive element of a capacitor, coil, or the like.
First, set the measurement mode to LCR mode (p. 24).

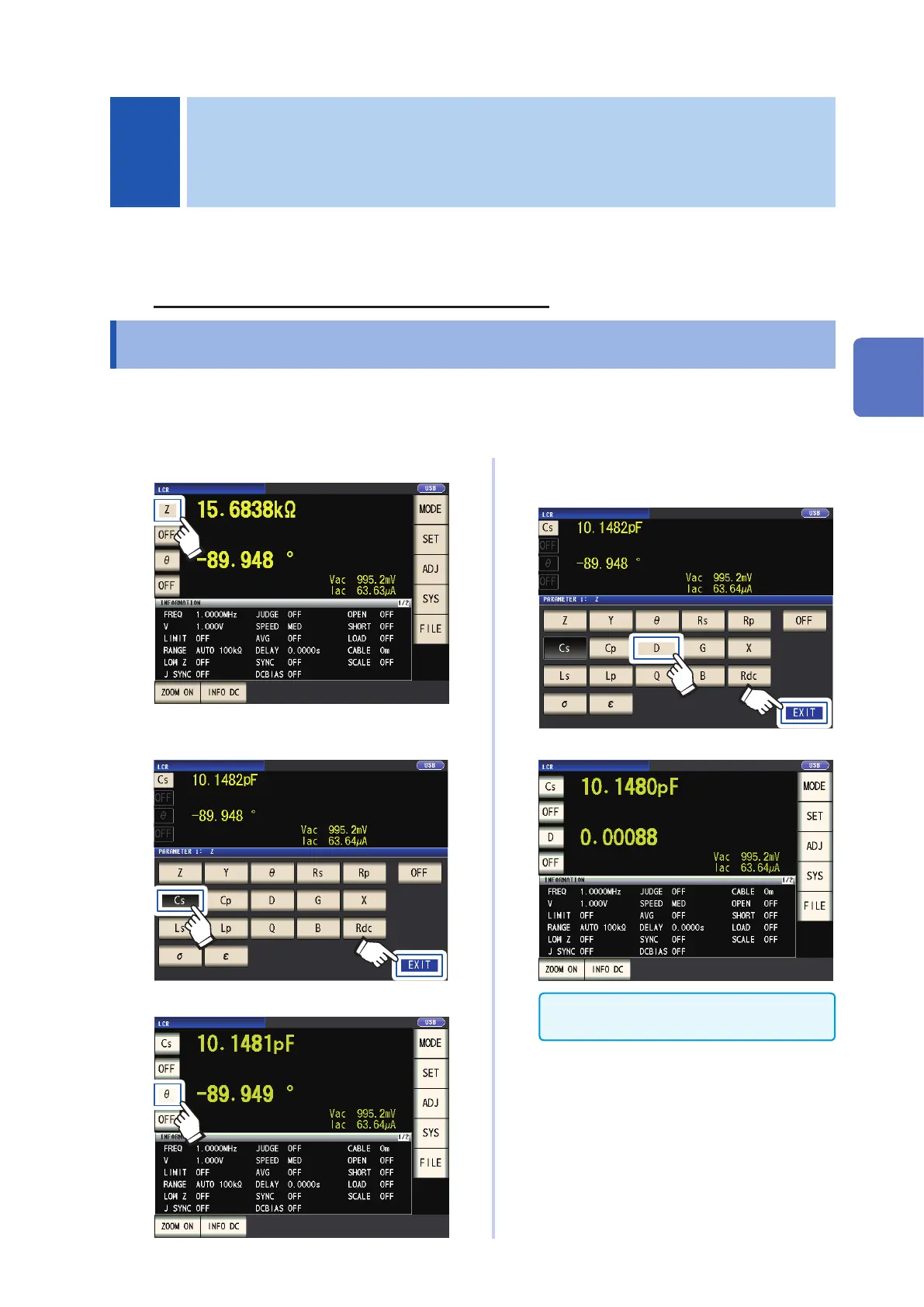

3.1 Setting Display Parameters
You can select up to 4 of the 16 measurement parameters to display on the measurement screen.
These parameters are set on the measurement screen.
<Example> No. 1 parameter: Cs, No. 3 parameter: D (See "Parameters" (p. 40).)
1
Touch the No. 1 parameter key.
2
Touch the Cs key and then the EXIT key
to accept the settings.
1
2
3
Touch the No. 3 parameter key.
4
Touch the D key and then the EXIT key
to accept the setting.
1
2
Cs and D are set as the parameters.
If OFF is selected in the parameter setting, a
measurement value is not displayed.
