Hioki IM3536 - X84; Setting the Judgment Mode; Based on One Judgment Standard)

69
Judging Measurement Results

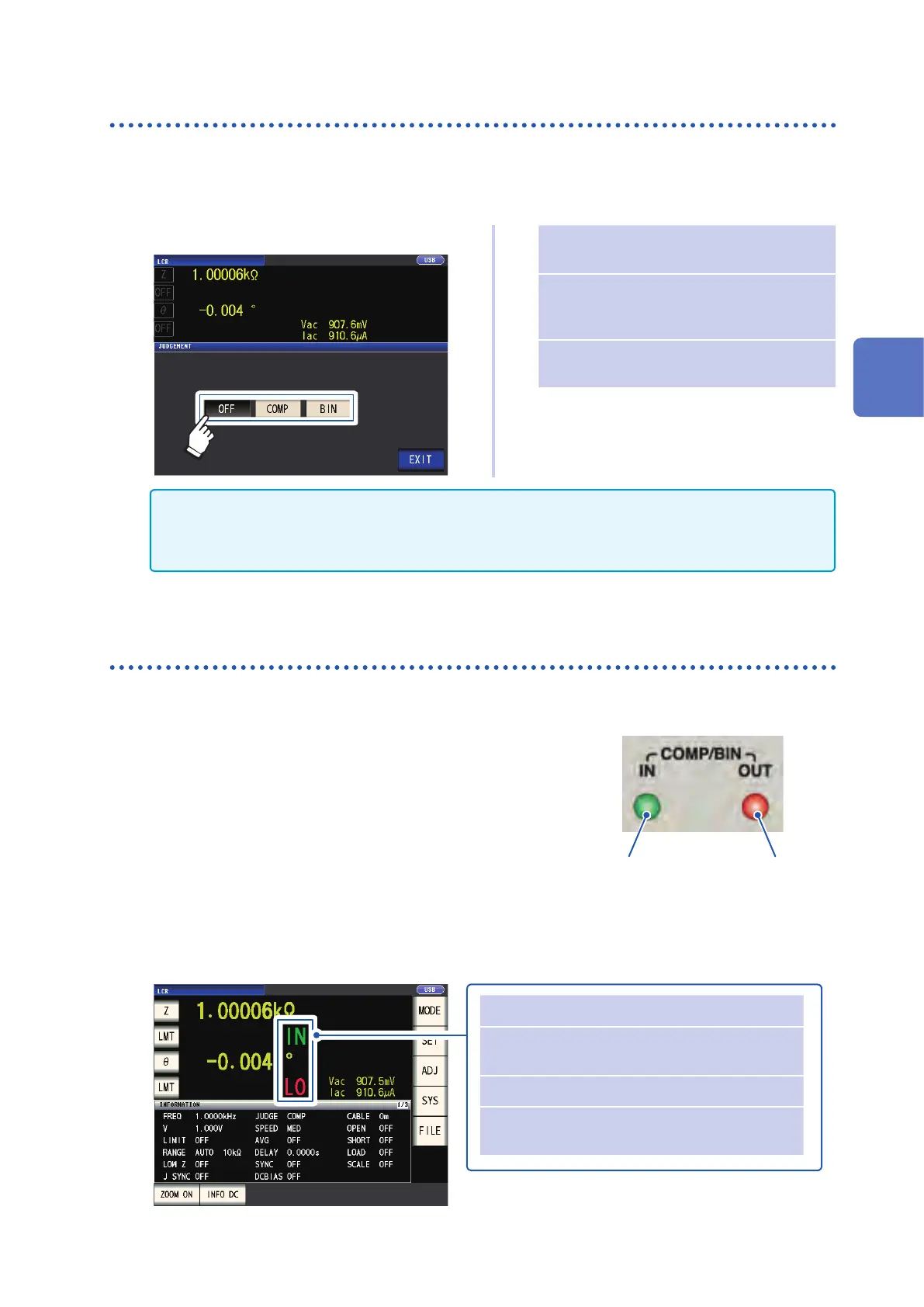

Setting the judgment mode
Select a judgment mode as described below and congure the settings.
Screen display method (For more information, see p. 24):
(Measurement screen) SET key>(SET screen) ADVANCED tab>JUDGE key
1
Select the judgment mode.
OFF Disables comparator and BIN func-
tion.
COMP Enables comparator function.
Congure the comparator function
settings (p. 69).
BIN Enables BIN function. Congure the
BIN function settings (p. 74).
2
Touch the EXIT key twice.
Displays the measurement screen.
• When comparator measurement and BIN measurement are performed, only the rst and third parameters
can be set. (During BIN measurement, the No. 3 parameter will be displayed in the No. 2 parameter area.)
• During comparator measurement, the No. 2 and No. 4 parameter displays will indicate [LMT].
• During BIN measurement, the No. 4 parameter display will indicate [BIN].
Conguring comparator function settings (judging measurement re-
sults based on one judgment standard)
The comparator function allows you to do the following.
Preset a reference value and upper and lower limit values
as the judgment reference, and display a judgment result
as HI (higher than the upper limit value), IN (within the
range set for the upper and lower limit values), or LO (lower
than the lower limit value).
• Output the judgment results to an external device (via the
EXT I/O connector).
• Select different settings and perform judgment for up to
two parameters.
• Be notied of judgment results by buzzer.
See "Key tones and judgment tones" (p. 89).
• Conrm the judgment result from the judgment result indi-
cation LEDs on the front panel of the instrument.
When the compar-
ator measurement
result is IN, the
green indicator
will light up.
When the compara-
tor measurement
result is HI or LO,
the red indicator will
light up.
(Judgment result indication LEDs)
HI Measured value is above upper limit
IN Upper limit value ≥ calculated value ≥
lower limit value
LO Measured value is below lower limit
- - -
When no reference standards have been
set
3
Performing Measurements in LCR Mode
