If Open or Short Correction Fails to Complete Normally
5.4 If Open or Short Correction Fails to Complete
Normally

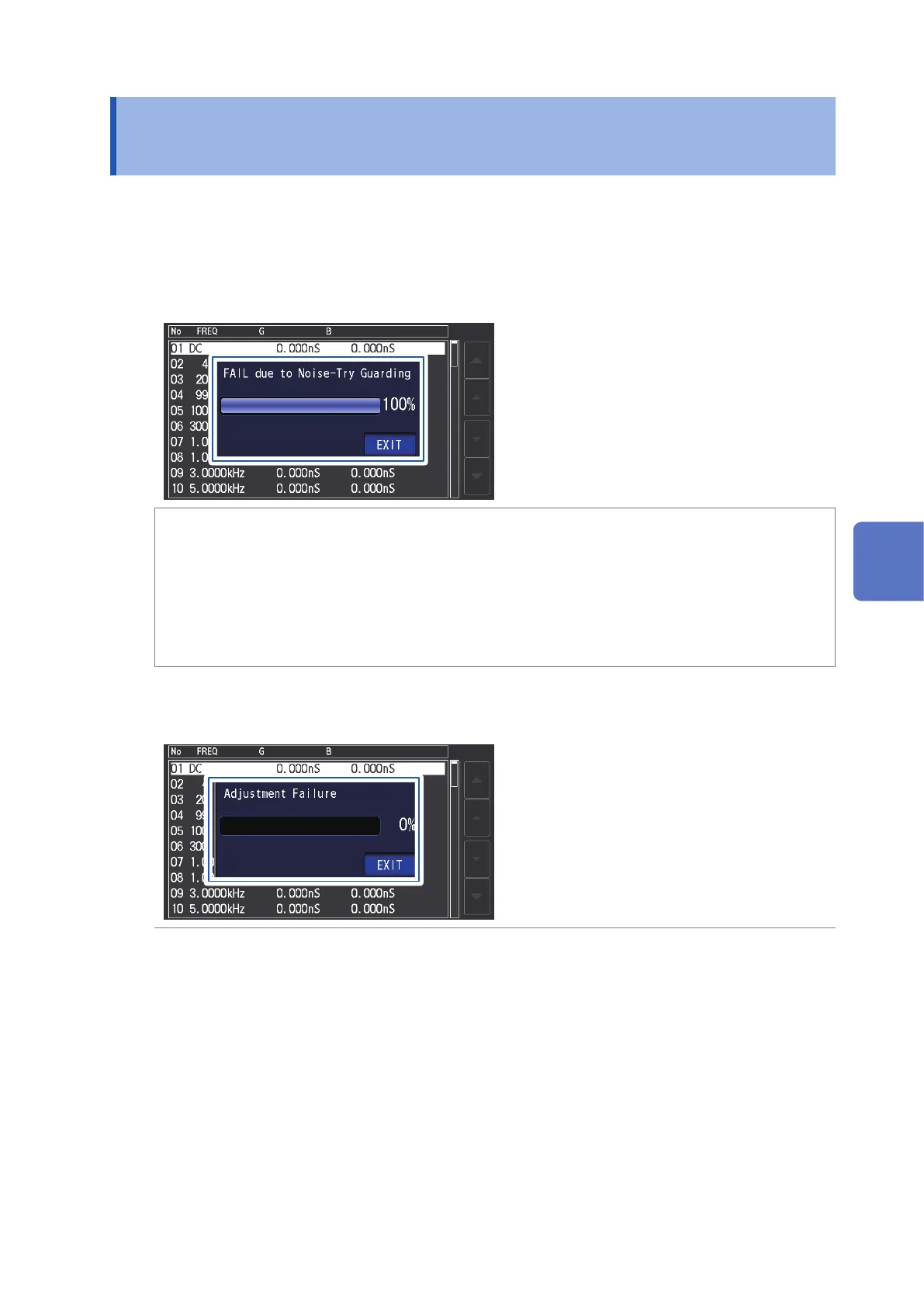

A window such as the following will be displayed.
(1) If the instrument was unable to acquire a compensation value for the optimal range due
to the effects of noise
A window such as the following will be displayed. If this occurs, the acquired compensation val-
ues can be enabled by touching EXIT key. However, those values are not guaranteed.
Solution
• During the correction process, be sure not to disturb the measurement cables (probe, xture)
or to move your hand near them.
• Execute the guarding process, because the open correction process is quite sensitive to noise.
See "Appx. 2 Measurement of High Impedance Components" (p. Appx.3).
• If the DC bias unit is connected, turn on the internal DC bias setting and set it to 0.00
V(p. 59).
(2) When correction failed
A window such as the following will be displayed. If this window is displayed and correction can-
celed (if you touch EXIT key), the instrument will revert to its state prior to correction.
5
Error Correction
