Setting Measurement Conditions (basic settings)
Refer to the “AC,” “DC,” “AC/DC,” and “Common” notation next to settings.
(AC)
Set when performing AC measurement.
(DC)
Set when performing DC measurement.
(AC/DC)
• Set when performing AC or DC measurement.
Set on the BASIC tab screen for AC measurement and on the [Rdc] tab
screen for DC measurement. (This explanation uses the [Basic] screen to
explain the setting method, which is the same for both.)
• AC measurement settings do not apply to DC measurement.
• DC measurement settings do not apply to AC measurement.
(Common)
The setting applies to both AC and DC measurement and is set on the [Basic]
tab screen.
Required settings
Measurement frequency (AC)
Set the frequency of the signal to apply to the test sample.
Changing the measurement frequency setting may cause measured values to vary for some sam-
ples.
Screen display method (For more information, see p. 24.)

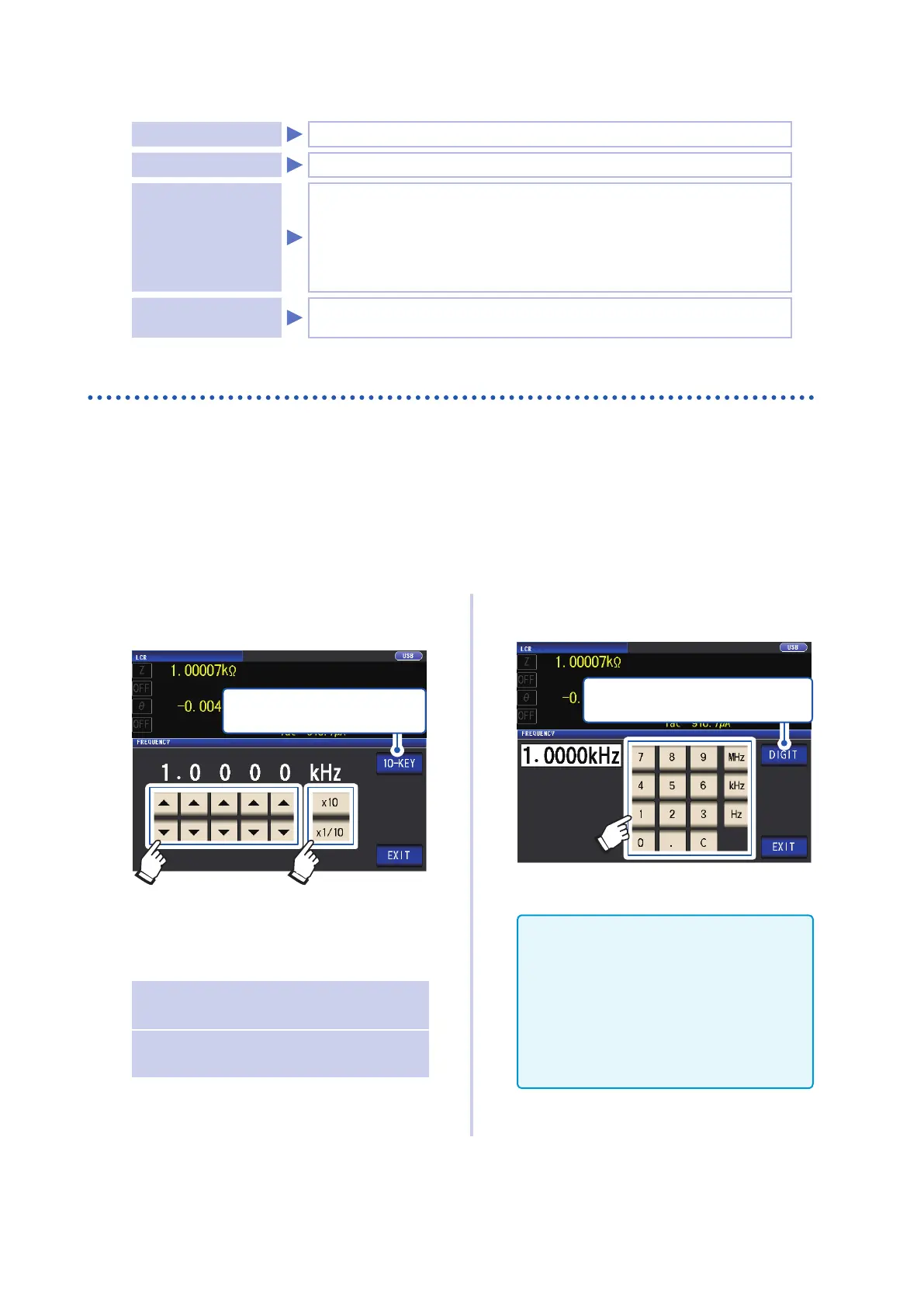

(Measurement screen) SET key>(SET screen) BASIC tab>FREQ key
1
Enter each digit of the frequency with
the buttons.
You can also set the value with
the numeric keypad
*
.
1 2
(Settable range :4 Hz to 8 MHz)
Set the decimal point and unit with the
×10 and ×1/10 keys.
×10 Sets the measurement frequency to
×10.
×1/10 Sets the measurement frequency to
×1/10.
2
Touch the EXIT key twice.
Displays the measurement screen.
*Use the numeric keypad to enter the
frequency.
The digit input setting screen will
be displayed.
If you make a mistake, touch the C key to
reenter the value.
• The frequency is not conrmed until a unit
key is pressed. (During numeric keypad
entry only)
• The unit keys are disabled until a number is
entered. (During numeric keypad entry only)
• If you set a value in excess of 8 MHz, the
value will be automatically set to 8 MHz.
• If you set a value less than 4 Hz, the value
will be automatically set to 4 Hz.
