External I/O Settings
Outputting measured values (switching to BCD mode) *LCR mode only
This section describes how to switch the output mode (between judgment mode and BCD mode)
during LCR mode operation. The default setting is judgment mode, in which case judgment results
are output. Changing the mode to BCD mode causes measured values to be output.
Screen display method (For more information, see p. 24.):
(Measurement screen) SET key>(SET screen) ADVANCED tab>IO BCD key

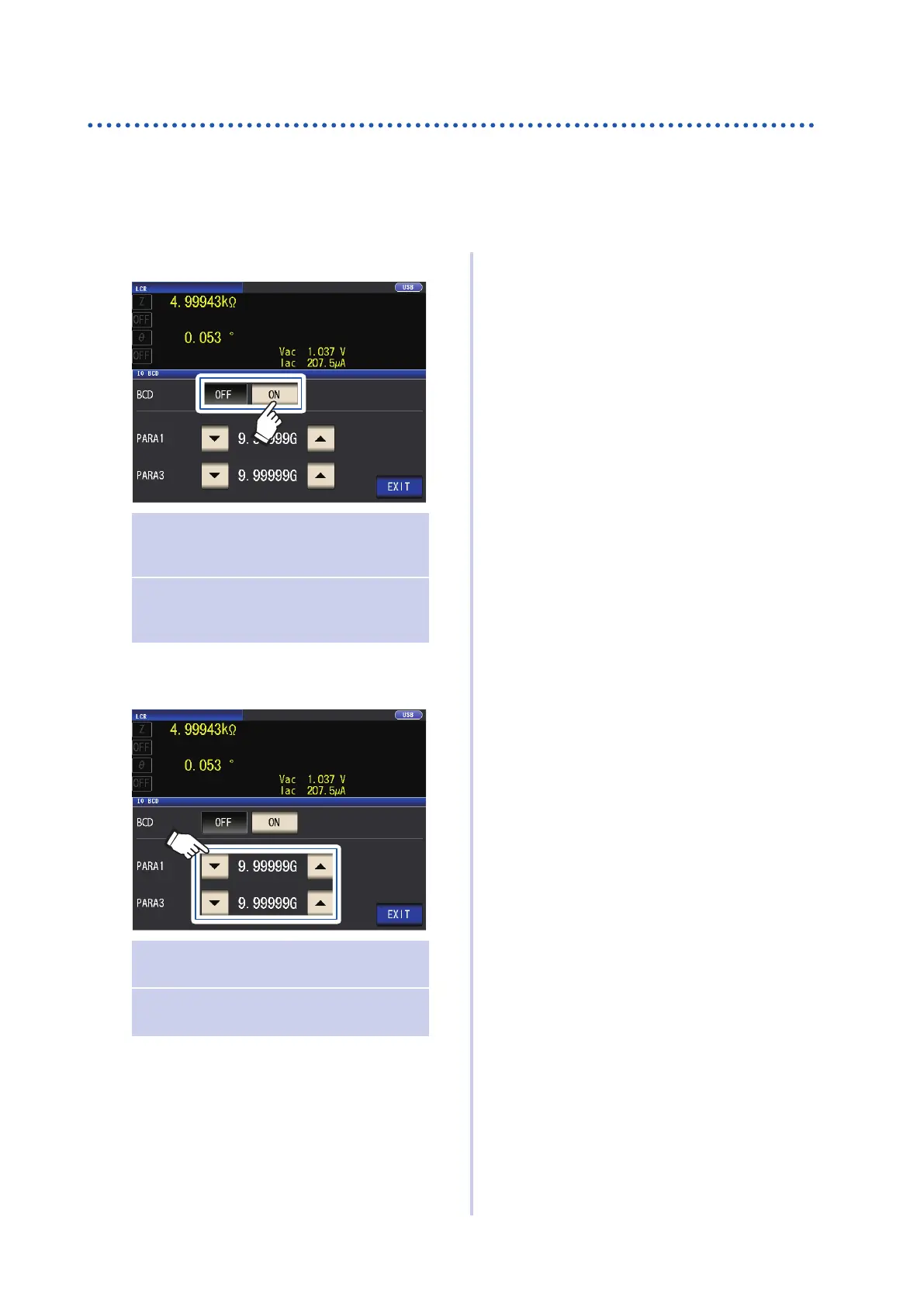

1
Touch the ON key.
OFF Sets the output mode to judgment
mode. (Judgment results will be
output.)
ON Sets the output mode to BCD
mode. (Measured values will be
output.)
2
Set the decimal point position with the
keys.
PARA1 Sets the decimal point position for
the No. 1 parameter.
PARA3 Sets the decimal point position for
the No. 3 parameter.
(Select: 9.99999G/
999.999M/ 99.9999M/ 9.99999M/
999.999k/ 99.9999k/ 9.99999k/
999.999/ 99.9999/ 9.99999/
999.999m/ 99.9999m/ 9.99999m/
999.999µ/ 99.9999µ/ 9.99999µ/
999.999n/ 99.9999n/ 9.99999n/
999.999p/ 99.9999p)
Example:
To display the No. 1 parameter measured
value as 12.3456 µF and the No. 3 param-
eter measured value as -80.567°, use the
following settings:
PARA1: 99.9999µ
PARA3: 99.9999
3
Touch the EXIT key twice.
Displays the measurement screen.
