External I/O Settings
Disabling the trigger input during measurement and setting the trigger
input effective edge
This section describes how to select whether to enable or disable trigger input from EXT I/O during
measurement. Erroneous input due to chattering can be prevented by disabling
trigger input during measurement.
Furthermore, you can also select either the rising edge or falling edge as the valid edge of trigger
input from the EXT I/O.
("9.2 Example Measurement Timing (Timing Charts)" (p. 171).)
Screen display method (For more information, see p. 24.):
(Measurement screen) SET key>(SET screen) ADVANCED tab>IO TRIG key
1

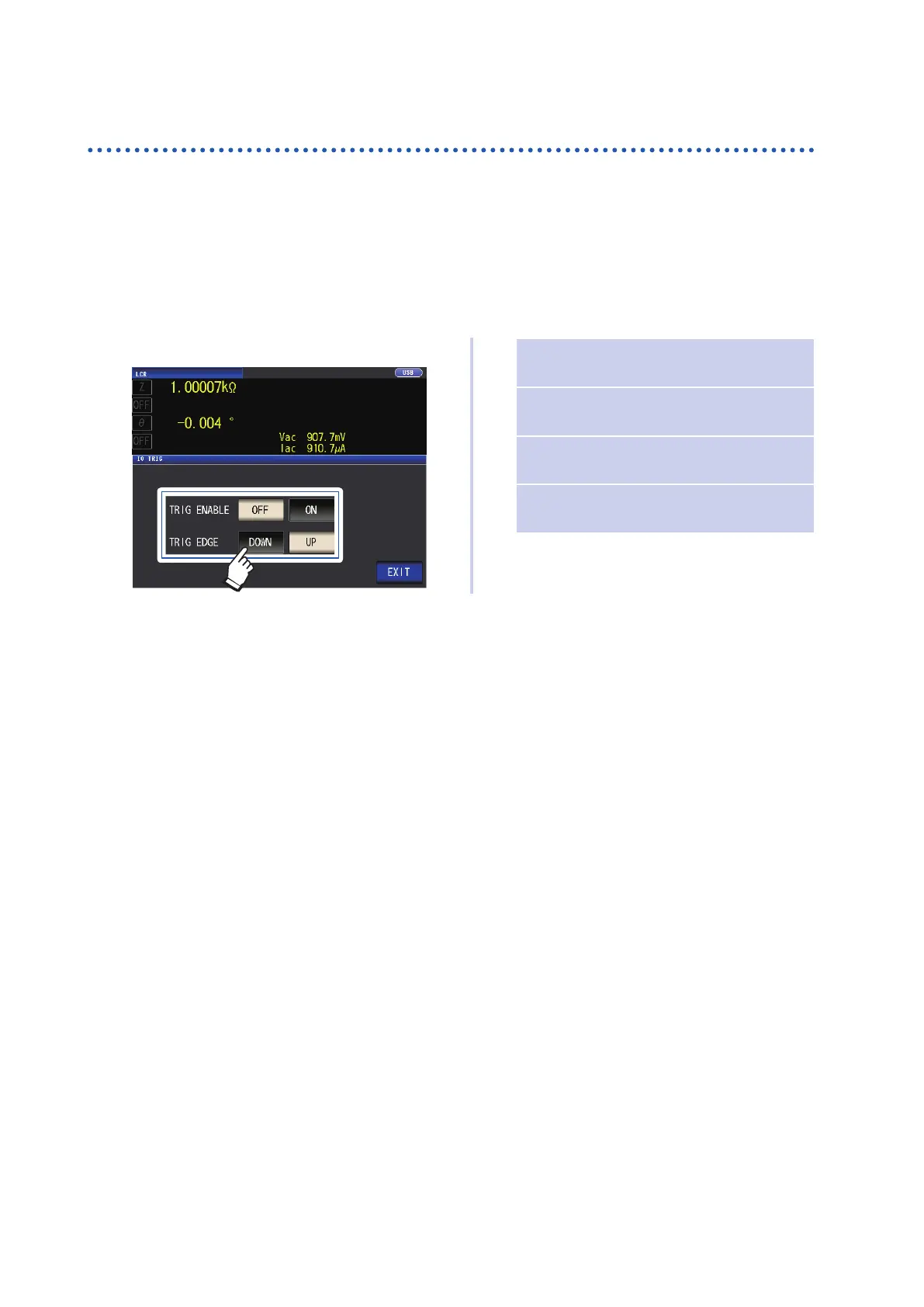

Select the I/O trigger function setting.
OFF Disables trigger input from the
EXT I/O during measurement.
ON Enables trigger input from the
EXT I/O during measurement.
DOWN Sets the falling edge as the valid
edge of trigger input.
UP Sets the rising edge as the valid
edge of trigger input.
2
Touch the EXIT key twice.
Displays the measurement screen.
