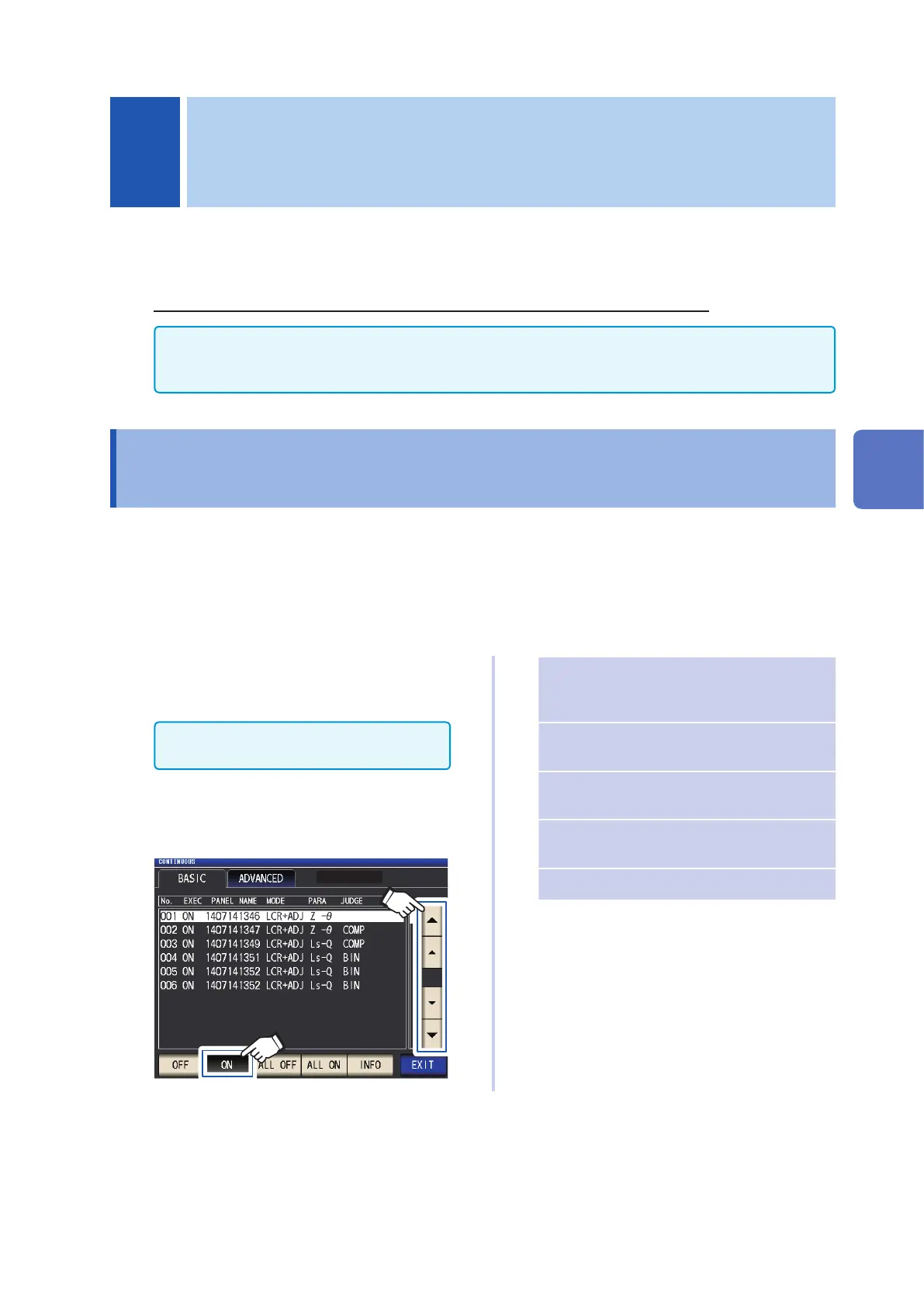

Setting Which Panels to Use in Continuous Measurement
4
Using Continuous Measurement
Mode
In continuous measurement mode, a series of measurement conditions saved using the panel save
function (p. 124) are loaded in order, and measurement is performed continuously using multiple
different sets of conditions. Measurement can be performed using up to 60 sets of conditions.
First, set the measurement mode to continuous measurement mode (p. 24).
• Setting the measurement conditions so that the measurement frequency or measurement signal level dif-
fers for each panel allows you to simply evaluate the characteristics of the test sample.
• Continuous measurement can also be performed from the EXT I/O (p. 165).
4.1 Setting Which Panels to Use in Continuous Mea-
surement
Before performing continuous measurement, set which panels to use.
Save the measurement conditions with the panel save function in advance.
See "6.1 Saving Measurement Conditions and Correction Values (Panel Save Function)" (p. 124).
Screen display method (For more information, see p. 24):
(Measurement screen) SET key>(SET screen) BASIC tab
A list of the measurement conditions saved
appears.
Any panel for which only the compensation
value (ADJ) was saved is not displayed.
1
Use the
key to select a panel for
which to perform continuous measure-
ment, and touch the ON key.
1
2
OFF Removes the selected panel from
the targets for continuous mea-
surement.
ON Sets the selected panel as a tar-
get for continuous measurement.
ALL OFF Removes all panels from the tar-
gets for continuous measurement.
ALL ON Sets all panels as targets for con-
tinuous measurement.
INFO Display the panel information.
2
Touch the EXIT key.
Displays the measurement screen.
4 Using Continuous Measurement Mode
4
Using Continuous Measurement Mode
