Hioki IM3536 - 5.4 If Open or Short Correction Fails to Complete Normally

103

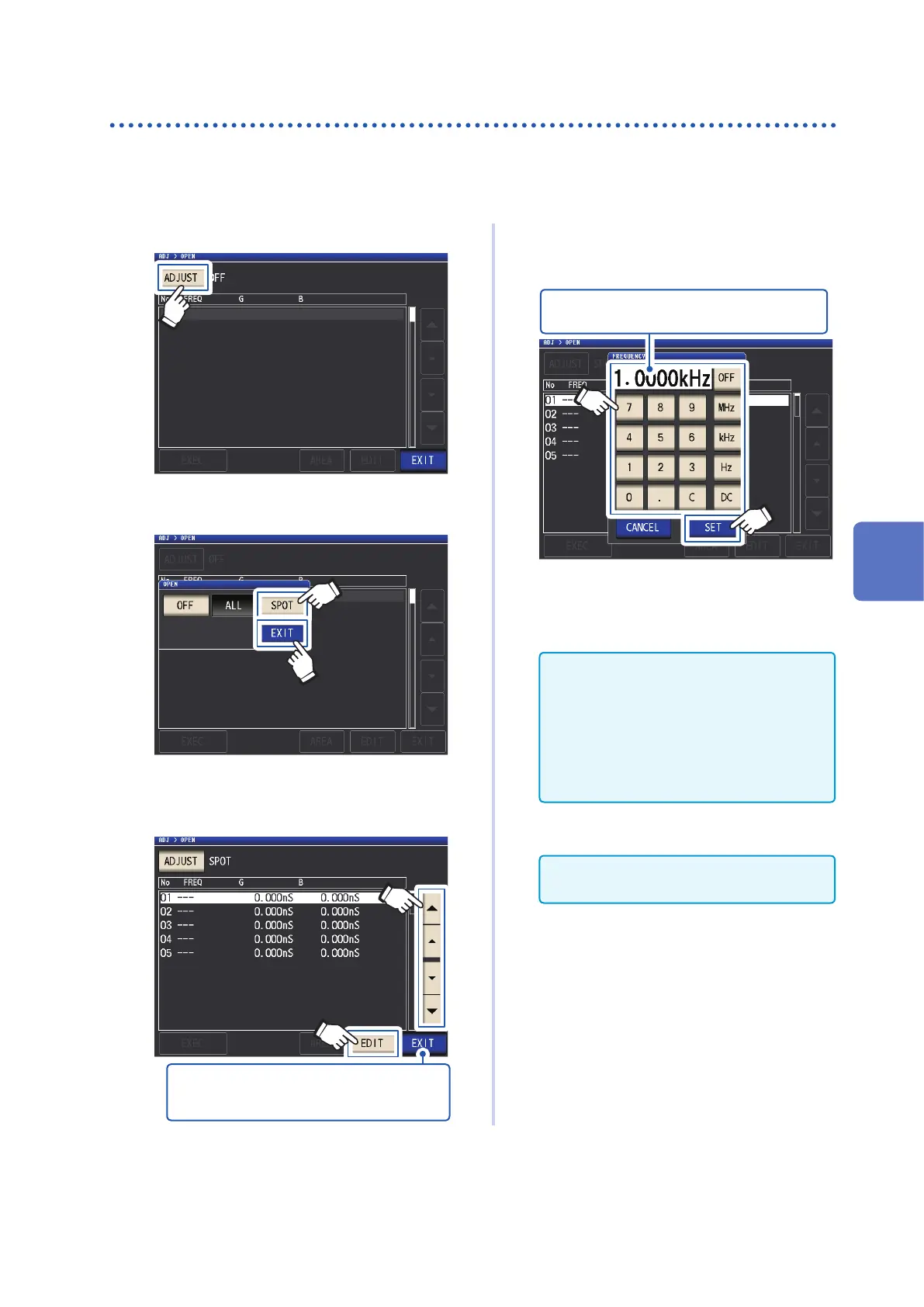

Open Correction
Spot correction
Acquire the correction values at the set measurement frequencies. Measurement frequencies can
be set for up to ve points.
Screen display method (For more information, see p. 27):
(Measurement screen) ADJ key>(ADJ screen) OPEN key
1
Touch the ADJUST key.
2
Touch the SPOT key and then touch the
EXIT key.
1
2
3
Select the correction point you want to
set or edit with the  key, and touch
the EDIT key.
2
1
Touch when you wish to cancel correction.
(The instrument will return to the screen
shown in step 2.)
4
Enter the frequency to correct with the
numeric keypad and touch the SET key
to accept the setting.
1
2
The previous value will be displayed until
you enter a value.
• Settable range: DC, 4 Hz to 8 MHz
*
*: The maximum frequency varies with the
cable length (p. 215).
• Touch the C key to cancel input.
• If you attempt to set a measurement fre-
quency greater than the maximum fre-
quency for each cable length setting, it will
automatically be reduced to the maximum
frequency for each cable length setting.
• If you attempt to set a measurement fre-
quency lower than 4 Hz, it will automatically
be increased to 4 Hz.
The correction values from last time are
displayed in a conrmation screen.
Check that the measurement cable is in an
open circuit state.
5
Error Correction
