Judging Measurement Results
3.5 Judging Measurement Results
The measurement results are compared to an arbitrarily set reference and then the judgment re-
sults are displayed.
This function is useful for quality evaluation and the like.
There is comparator measurement which compares one judgment reference and the measurement
values, and BIN measurement which compares multiple judgment reference values (up to 10) and
the measurement values.
Judgment by comparator measurement and BIN measurement is performed for the No. 1 param-
eter and No. 3 parameter.
Therefore, set the measurement values you want to judge for the No. 1 parameter and No. 3 pa-
rameter in advance.
See "3.1 Setting Display Parameters" (p. 39).

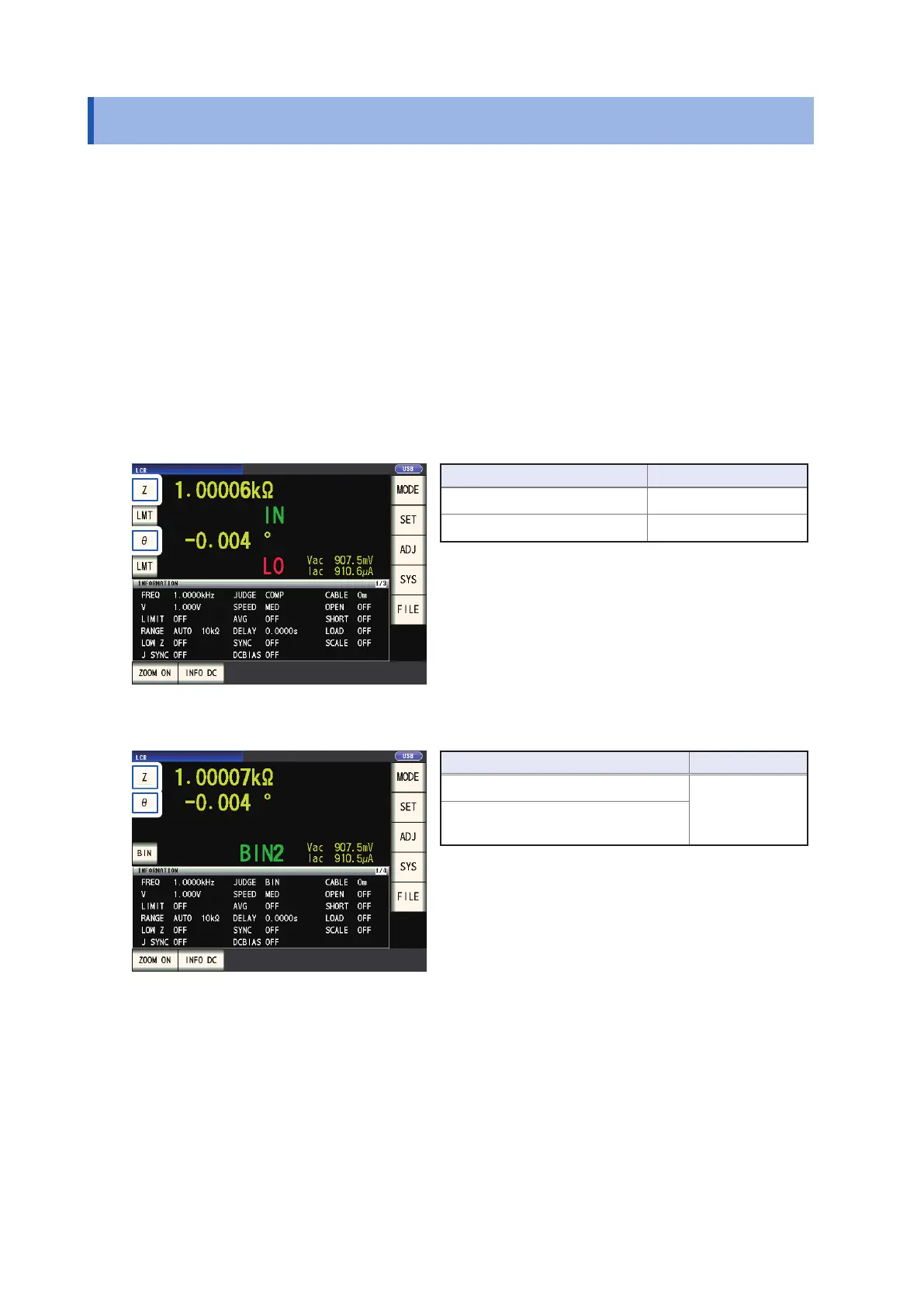

Comparator measurement
Judgment Target Result Display
No. 1 parameter No. 2 parameter
No. 3 parameter No. 4 parameter
BIN measurement
Judgment Target Result Display
No. 1 parameter
No. 4 parameter
No. 3 parameter
(The No. 2 parameter area is shown.)
