External I/O Settings
Setting the delay time (from judgment result output to EOM
―――
output) and
judgment result reset operation
The delay time for the period from the output of the comparator and BIN judgment results until the
output of EOM
―――
from the EXT I/O can be set.
You can also select whether to reset comparator and BIN judgment results when EOM
―――
output
changes to HI (indicating that measurement is in progress).
(See "9.2 Example Measurement Timing (Timing Charts)" (p. 171).)
Screen display method (For more information, see p. 24.):
(Measurement screen) SET key>(SET screen) ADVANCED tab>IO JUDGE key

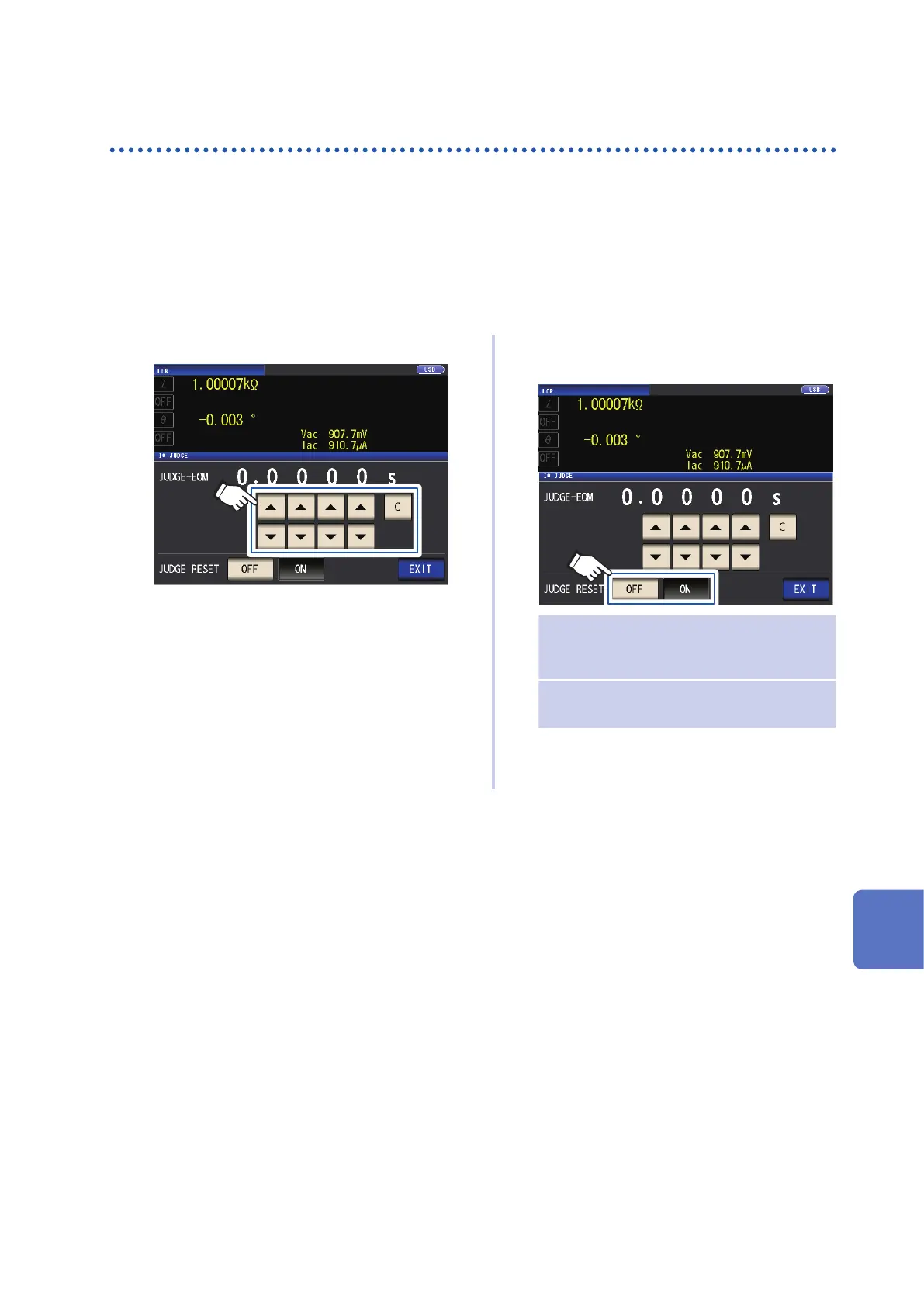

1
Set the delay time with the key.
Settable range: 0.0000 s to 0.9999 s
If you make a mistake, touch the C key to
reenter the value.
2
Select the judgment result hold/reset
setting.
OFF Stores the last judgment results
until the next judgment results are
output.
ON Resets the judgment results when
the EOM
―――
signal change to HI.
3
Touch the EXIT key twice.
Displays the measurement screen.
