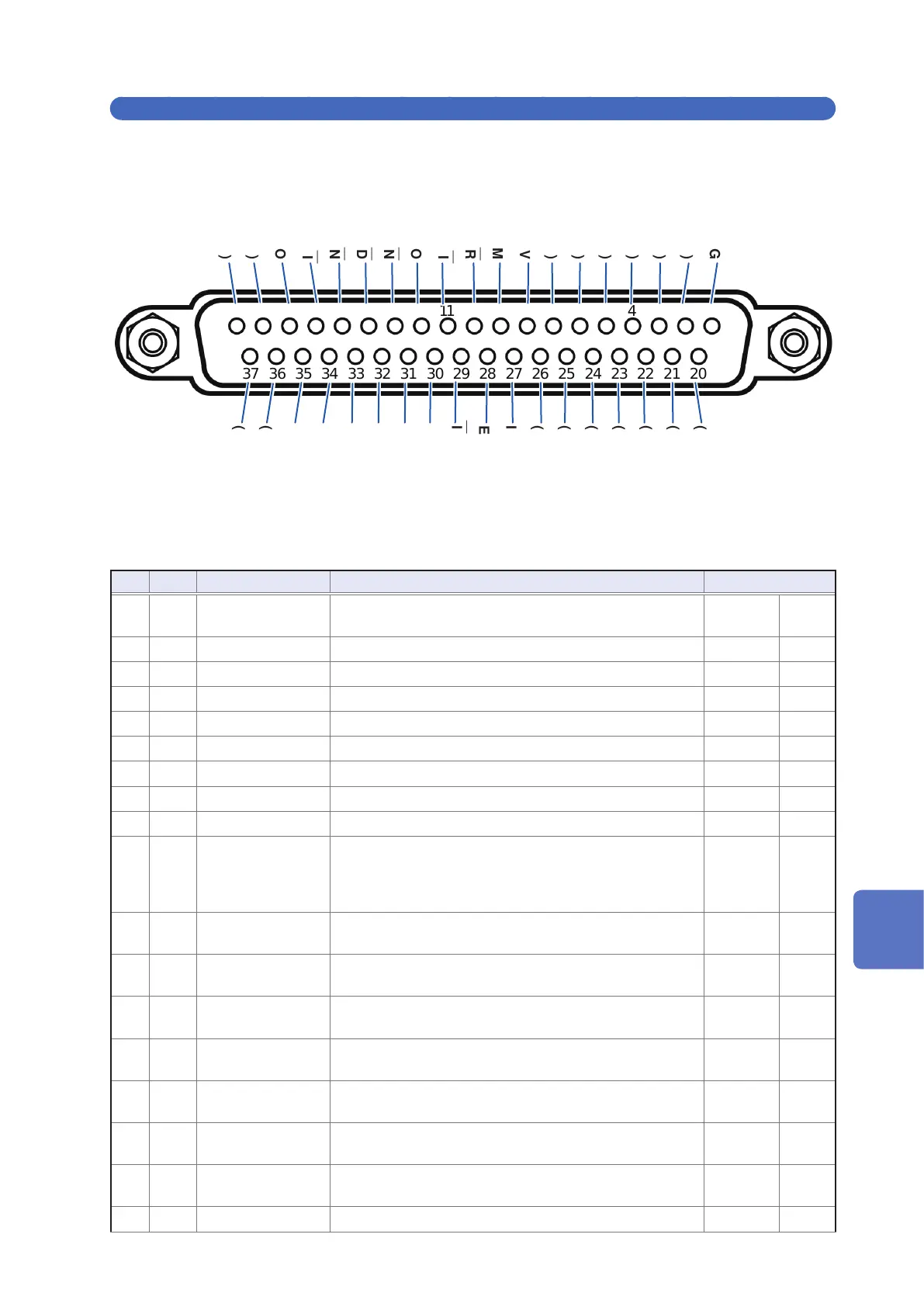

External Input/Output Connector and Signals
Continuous measurement mode (CONTINUOUS) operation
2 14 36 58 79
202122232425262728293031323334353637
141516171819 10111213
TRIG
― ―――
(Unused) (Unused) (Unused) (Unused) (Unused) (Unused)
ISO_5V
ISO_COM
ERR
―――
No.1_PARA1-HI
―― ― ――――― ――
No.1_PARA1-LO
―― ― ――――― ――
No.1_PARA3-IN
―― ― ―――――――
AND
―――
No.2_PARA1-
―― ― ―――――
IN
――
No.2_PARA
―― ― ――――
3
―
-
HI
――
No.2_PARA3-
―― ― ―――――
LO
――
(Unused) (Unused)
(Unused) (Unused) (Unused) (Unused) (Unused) (Unused) (Unused) ISO_COM EOM
―――
INDEX
―― ― ― ―
No.1_PARA1-IN
―― ― ―――――――
No.1_PARA3-HI
―― ― ――――― ――
No.1_PARA3-LO
―― ― ――――― ――
No.2_PARA1-
―― ― ―――――
HI
――
No.2_PARA
―― ― ――――
1
―
-
LO
――
No.2_PARA3-IN
―― ― ―――――――
(Unused) (Unused)
Pin I/O
*
Signal name Function Logic
1 IN TRIG
― ―――
External trigger
(See "Input (IN) signal function details" (p. 167).)
Rising/
falling
Edge
2 - (Unused) - - -
3 - (Unused) - - -
4 - (Unused) - - -
5 - (Unused) - - -
6 - (Unused) - - -
7 - (Unused) - - -
8 - ISO_5V Isolated 5 V power output - -
9 - ISO_COM Isolated common signal ground - -
10 OUT ERR
―――
Outputs when a sampling error, overcurrent error, contact
error, High-Z reject error, constant voltage/ constant cur-
rent error, or voltage/current limit value exceeded error
occurs.
Negative Level
11 OUT No.1_PARA1-HI
―― ― ――――― ――
Outputs HI comparator judgment results for the rst No. 1
parameter.
Negative Level
12 OUT No.1_PARA1-LO
―― ― ――――― ――
Outputs LO comparator judgment results for the rst No. 1
parameter.
Negative Level
13 OUT No.1_PARA3-IN
―― ― ―――――――
Outputs IN comparator judgment results for the rst No. 3
parameter.
Negative Level
14 OUT AND
―――
Outputs when all panel judgments are IN and the instru-
ment is not OUT_OF_BINS.
Negative Level
15 OUT No.2_PARA1-IN
―― ― ―――――――
Outputs IN comparator judgment results for the second
No. 1 parameter.
Negative Level
16 OUT No.2_PARA3-HI
―― ― ――――― ――
Outputs HI comparator judgment results for the second
No. 3 parameter.
Negative Level
17 OUT No.2_PARA3-LO
―― ― ――――― ――
Outputs LO comparator judgment results for the second
No. 3 parameter.
Negative Level
18 - (Unused) - - -
9
