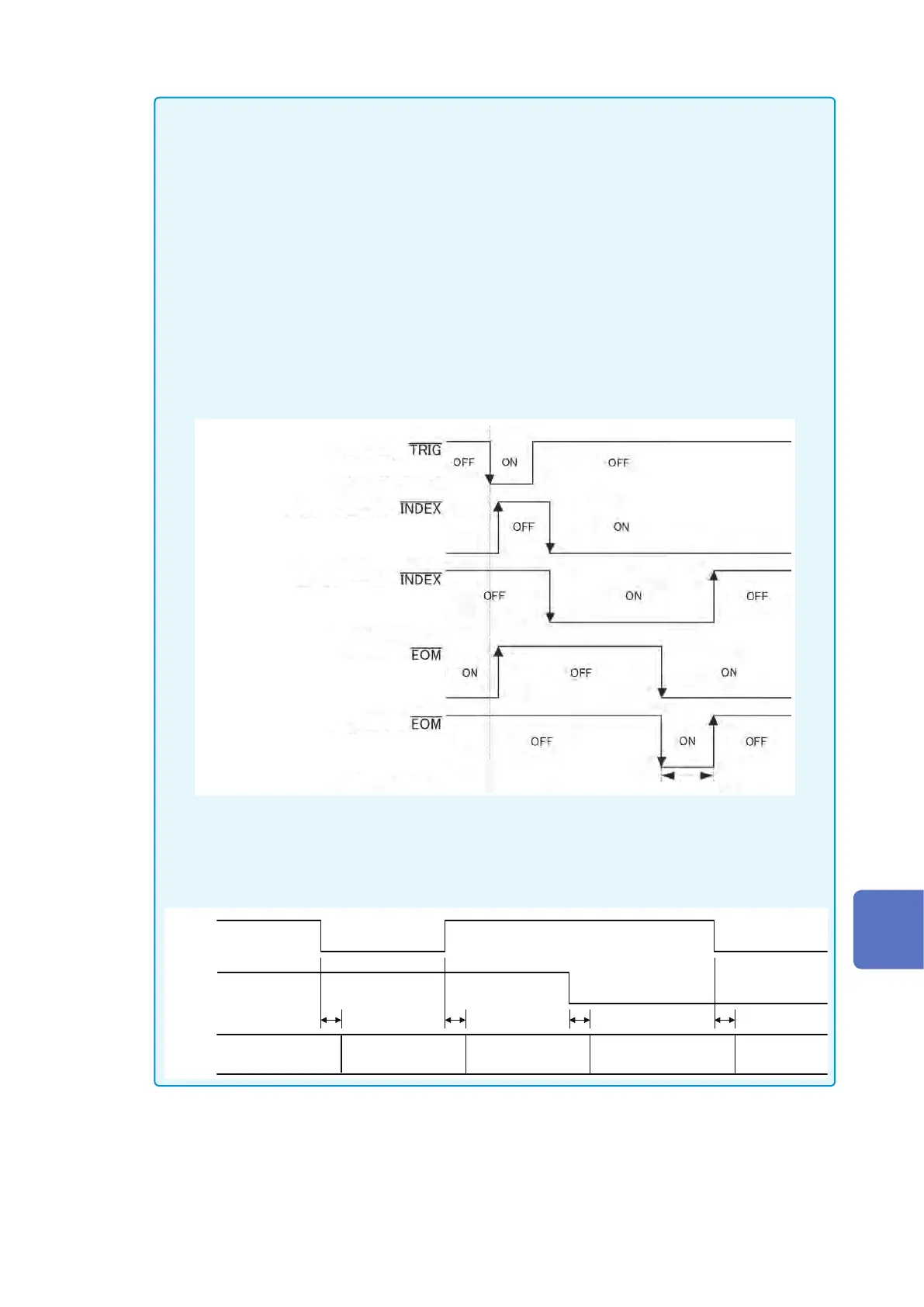

Example Measurement Timing (Timing Charts)
• The shorter the measurement time, the shorter the time that INDEX
―― ― ――
and EOM
―――
are HI (off).
The HI (OFF) time when receiving the INDEX
―― ― ――
and EOM
―――
signals may be too short depending on the input
circuit. By setting the EOM output method to PULSE, an adequately long HI (OFF) time can be congured.
The instrument can be congured to maintain the low (on) state for a preset time once EOM
―――
changes to
LO (on) before reverting the signal to HI (off) after the completion of measurement.
When trigger input is received at EOM
―――
: LO (on) and INDEX
―― ― ――
: LO (on), the signal transitions to HI (off) when
measurement starts.
Setting the INDEX
―― ― ― ―
and EOM
―――
output method
Setting on the instrument:
See"Setting the EOM output method and output time" (p. 183).
Setting with a communications command:
See LCR Application Disc - Communications Command (
:IO:EOM:MODE
).
Setting the pulse width for which LO (on)
EOM
―――
is held
Setting on the instrument:
See "Setting the EOM output method and output time" (p. 183).
Setting with a communications command:
See LCR Application Disc - Communications Command (
:IO:EOM:PULSe
).
(Start-of-measurement signal)
(Analog end of measurement signal)
When HOLD
(Analog end of measurement signal)
When PULSE
(End of measurement signal)
When HOLD
(End of measurement signal)
When PULSE
T: pulse width
ON
In the above gure, “ON” indicates signal input and output, while “OFF” indicates the absence of signal
input or output.
(ON: HI, OFF:LO)
BCD signal timing
BCD single DM-n transition time based on the C1 and C2 signals
0.2ms max 0.2ms max
No. 1 Parameter
High-order digit
D1-0toD-4-3
BCDm-n
Low-order digit
(ON
High-order digit
)
(
OFF
)
Low-order digit (ON)
C1
C2
High-order digit (OFF)
No. 1 Parameter (OFF) No. 3 Parameter (OFF)
0.2ms max 0.2ms max
No. 1 Parameter
High-order digit
D1-0toD-4-3
No. 2 Parameter
High-order digit
D1-0toD-4-3
No. 1 Parameter
Low-order digit
D1-0toD-4-3
No. 2 Parameter
Low-order digit
D1-0toD-4-3
9
External Control
