Setting Measurement Conditions (basic settings)
Line frequency (DC)
When performing DC measurement, be sure to set the line frequency of the power supply being
used.
Screen display method (For more information, see p. 24.):
(Measurement screen) SET key>(SET screen) Rdc tab>LINE FREQ key
1

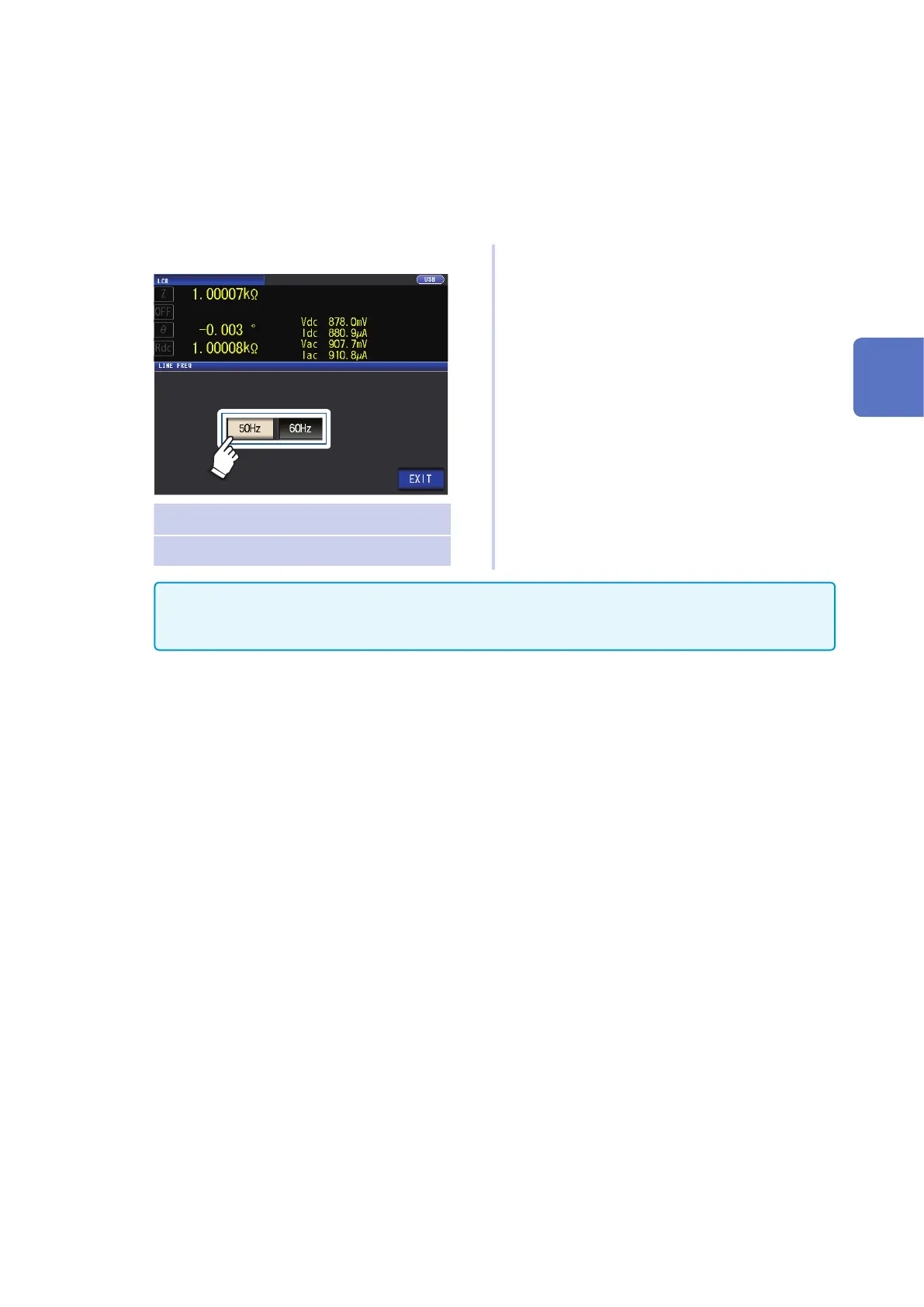

Select the line frequency.
50 Hz Sets the line frequency to 50 Hz.
60 Hz Sets the line frequency to 60 Hz.
2
Touch the EXIT key twice.
Displays the measurement screen.
To suppress noise, the instrument needs to be set to match the frequency of the power source. Before
operating, set the instrument to the frequency of your commercial power. If the supply frequency is not set
properly, measurements will be unstable.
