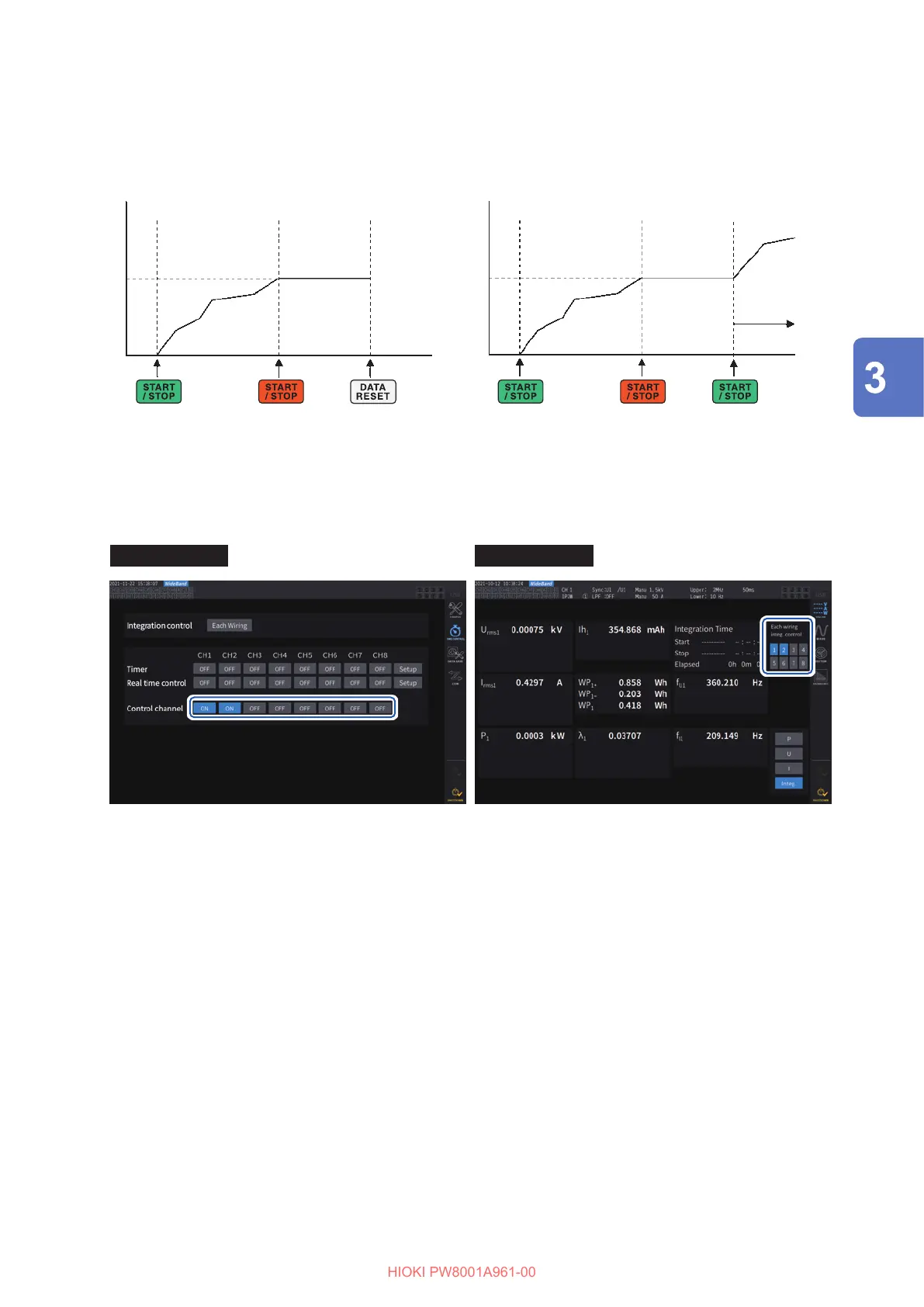

Integrating Current and Power
This section describes how to start and stop integration manually.
Integrated display value
Start Stop Reset
Hold
Time
Manual integration operation
Integrated display value
Start Stop Addition start
Hold
Time
Addition
Cumulative integration operation
(Lit up in green) (Lit up in green) (Lit up in green)(Lit up in red)(Lit up in red)
When the integration control is set to [Each Wiring]
Select the channels to be operated by the START/STOP key or the DATA RESET key in either of
the following screens to control.
Display screen [SYSTEM] > [TIME CONTROL] Display screen [MEAS] > [VALUE]
11
11
1
Select a button on the [TIME CONTROL] screen or a channel number button in the upper
right corner of [MEAS] > the [VALUE] screen.
2
Press the START/STOP key.
The instrument starts integrating values of channels whose integration has been reset or stopped among the
channels selected in step 1. The key does not light up, but the integration state indicator in the upper right
corner of the screen turns green.
3
Press the START/STOP key.
The instrument stops integrating values of channels whose integration is in progress among the channels
selected in step 1. The key does not light up, but the integration state indicator in the upper right corner of the
screen turns red.
4
Press the DATA RESET key as necessary.
The instrument resets integrated values of the channels selected in step 1. When using the timer control or
real time control settings, integration will stop at the set end time.
