D1-N Series Servo Drive User Manual Servo Drive Configuration
5-28 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906

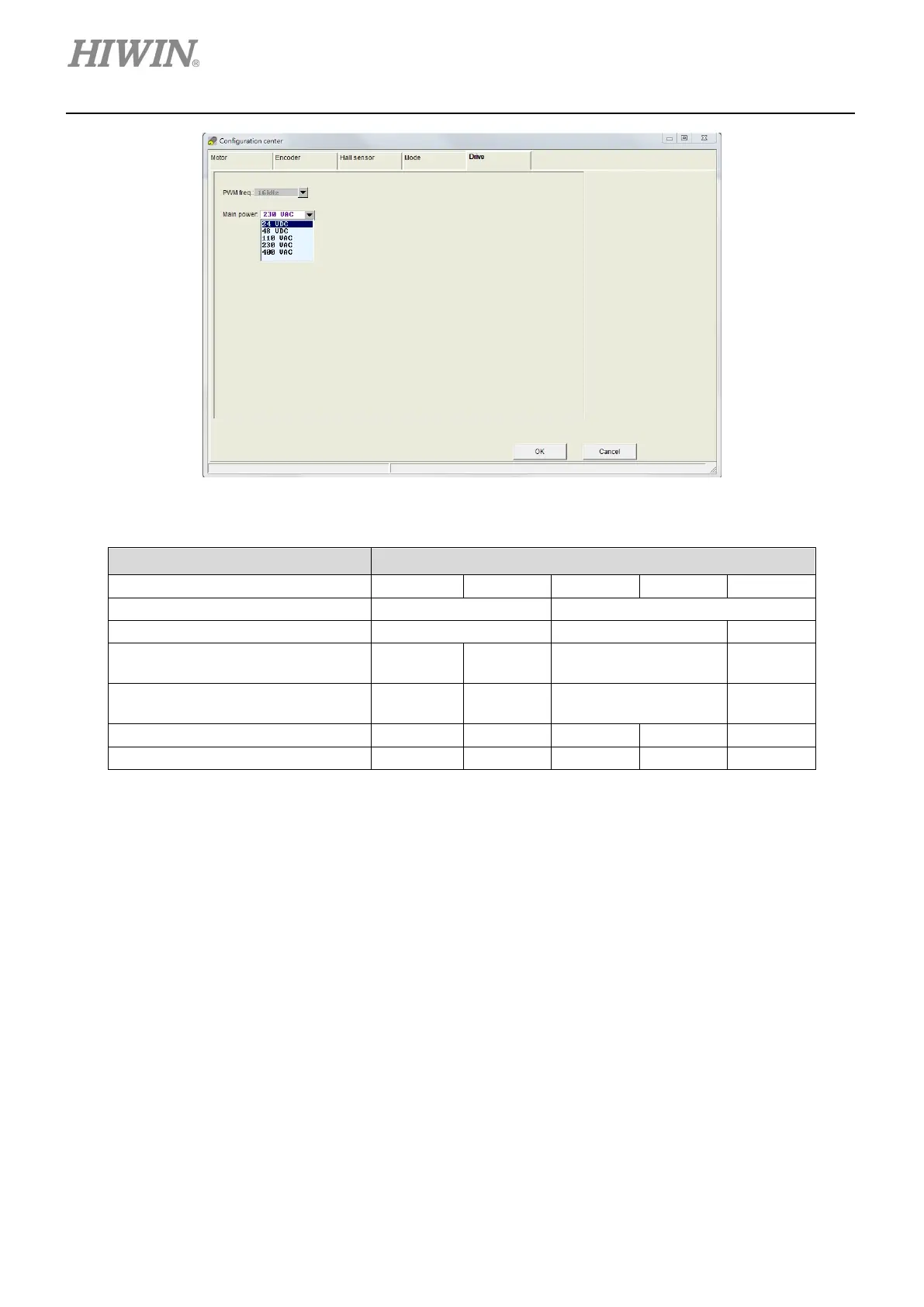

Figure 5.2.5.1
Table 5.2.5.1
Item Specification
Main Power
24 Vdc
48 Vdc
110 Vac
230 Vac
400 Vac
Frequency
0 Hz
50/60Hz
Phase
NA
1 Ø/3 Ø
3 Ø
Voltage Threshold of Activating
Regenerative Resistor
50 Vdc 90 Vdc 390 Vdc 735 Vdc
Voltage Threshold of Deactivating
Regenerative Resistor
40 Vdc 80 Vdc 380 Vdc 695 Vdc
Threshold of Overvoltage Warning
60 Vdc
100 Vdc
404 Vdc
404 Vdc
800 Vdc
Threshold of Undervoltage Warning
19 Vdc
30 Vdc
60 Vdc
184 Vdc
320 Vdc
Note:
(1) D1-N---4-- supports voltage inputs 24 Vdc, 48 Vdc, 110 Vac, 230 Vac and 400 Vac.
(2) D1-N-90 supports voltage inputs 110 Vac, 230 Vac and 400 Vac.
(3) D1-N-09, D1-N-18 and D1-N-36 support voltage inputs 110 Vac and 230 Vac.
