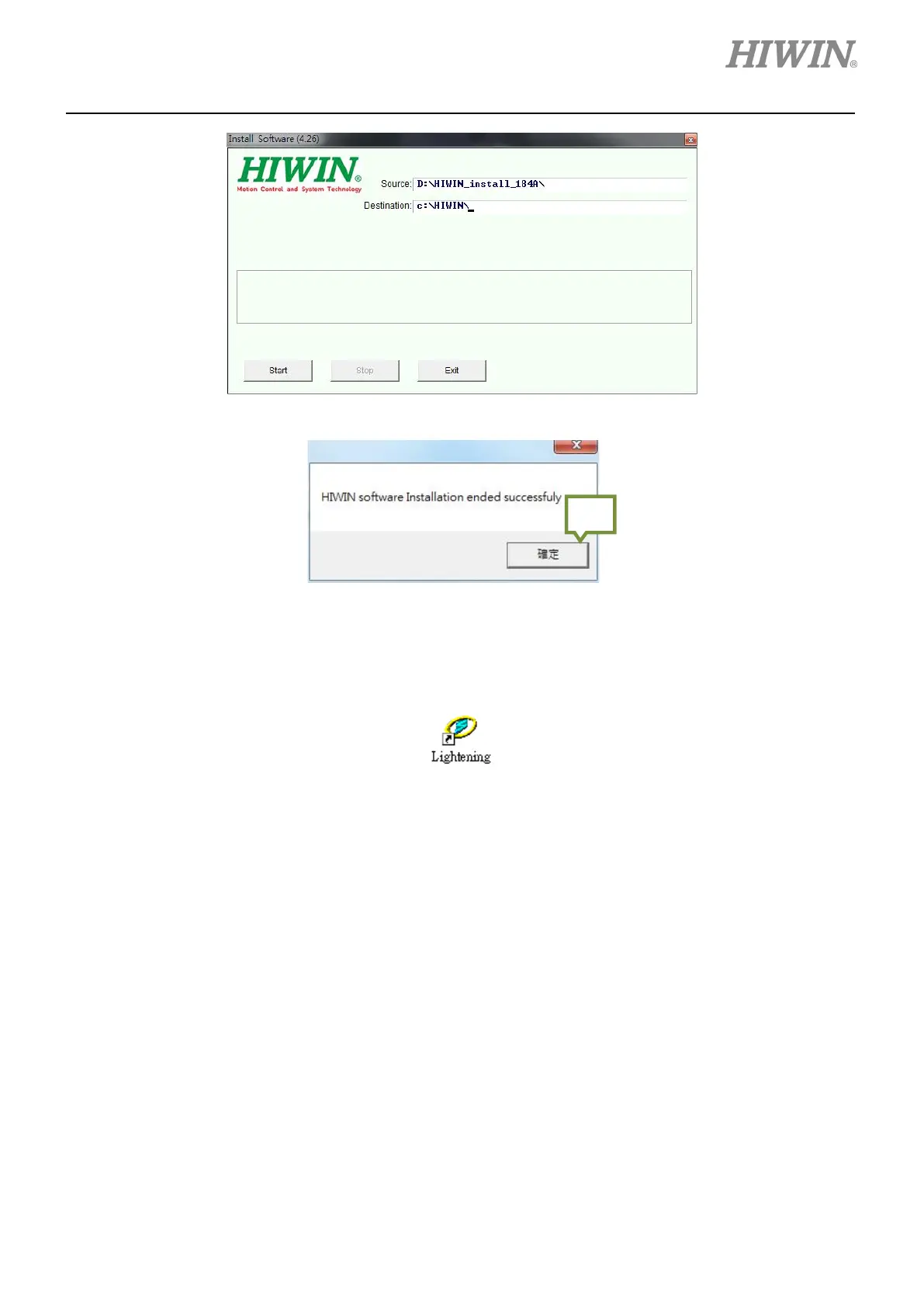

Figure 5.1.1.2
Figure 5.1.1.3
A shortcut of Lightening will be created on the desktop which is shown as figure 5.1.1.4. The path of the
shortcut is “C:\HIWIN\dce\toolswin\winkmi\lightening.exe”.
Figure 5.1.1.4
5.1.2 Communication setup
There are three ways to communicate with the servo drive:
 USB communication
 mega-ulink communication
 CoE communication
Section 5.1.2 will introduce how to set up USB communication and mega-ulink communication. For CoE
communication, please refer to HIWIN CoE Drive User Guide. While using USB communication and CoE
communication, it is suggested to use supported network controllers of Beckhoff. (Refer to:
https://infosys.beckhoff.com/english.php?content=../content/1033/tcsystemmanager/reference/ethercat/h
tml/ethercat_supnetworkcontroller.htm&id=)
