D1-N Series Servo Drive User Manual Tuning
HIWIN MIKROSYSTEM Corp. 6-3
6.1.2 Quick view

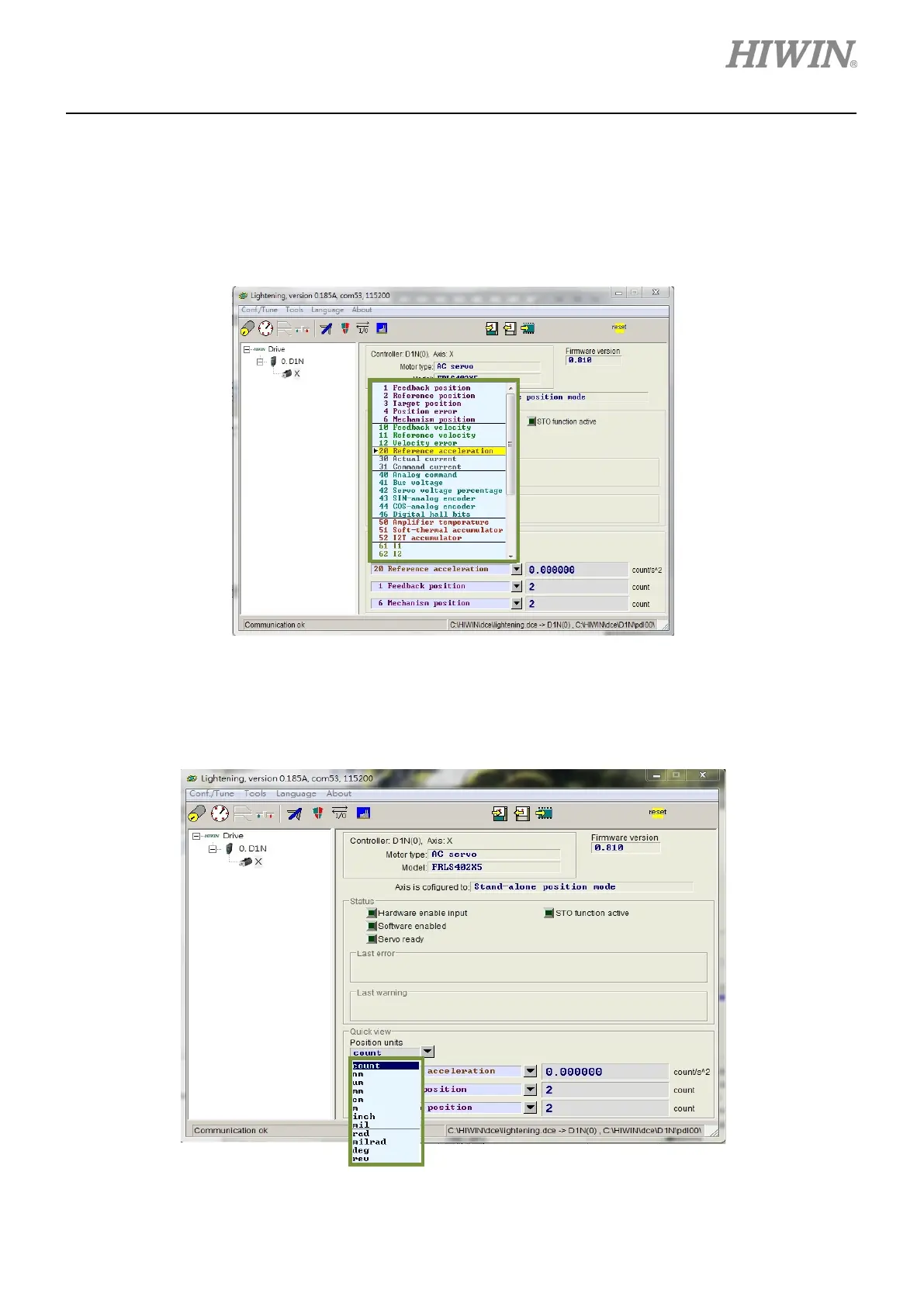

In the main window, there is an area called Quick view as figure 6.1.2.1. Quick view can display three
user-defined physical quantities. The values of these physical quantities will be updated for users to
observe and analyze the system. For supported physical quantities, please refer to section 3.11.
Figure 6.1.2.1 Selection of physical quantities
Unit setting
For physical quantities related to distance, users are allowed to display physical quantities (such as
position or velocity) in their desired units.
Figure 6.1.2.2 Unit setting
To Next Page
