D1-N Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM Corp. 4-13
MD17UE01-1906

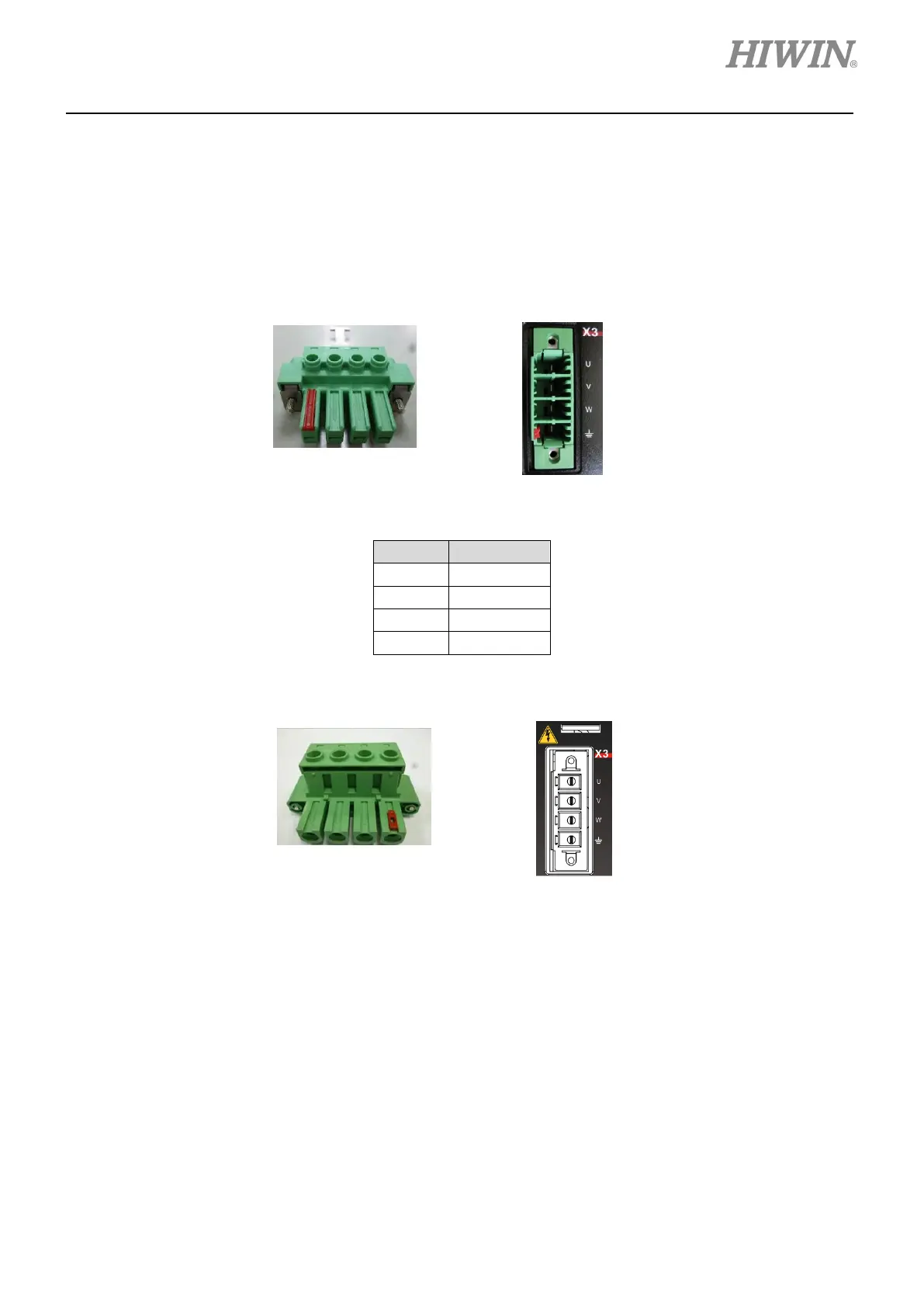

4.4 Motor power (X3)
The servo drive and motor must be properly grounded.
(1) Connector
A. D1-N-09/18/36 servo drive
Figure 4.4.1 Connector: PC 5/4-STF-SH1-7, 62 (1778191)
Table 4.4.1
Pin
Signal
1
U
2
V
3
W
4
PE
B. D1-N-90 servo drive
Figure 4.4.2 Connector: PC16/4-STF-SH-10.16 (1970359)
The pin definition is the same as table 4.4.1.
3
4
2
1
3
4
2
1
