D1-N Series Servo Drive User Manual Wiring
4-12 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906

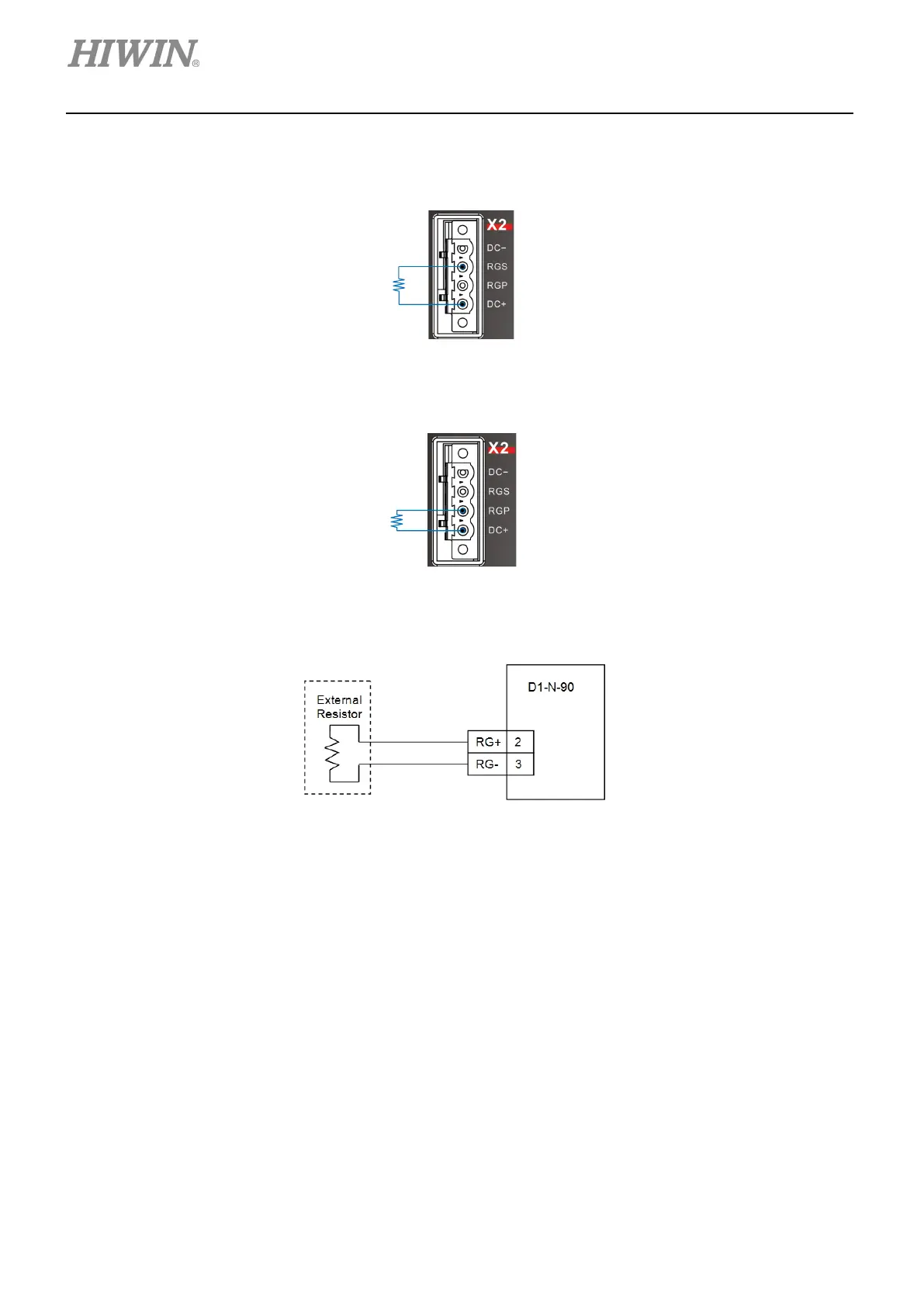

c. Both the internal regenerative resistor and external regenerative resistor are used. (Serial
connection)
Figure 4.3.5
d. Only the external regenerative resistor is used.
Figure 4.3.6
B. D1-N-90 servo drive
Figure 4.3.7
