D1-N Series Servo Drive User Manual LCD Display
7-2 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906

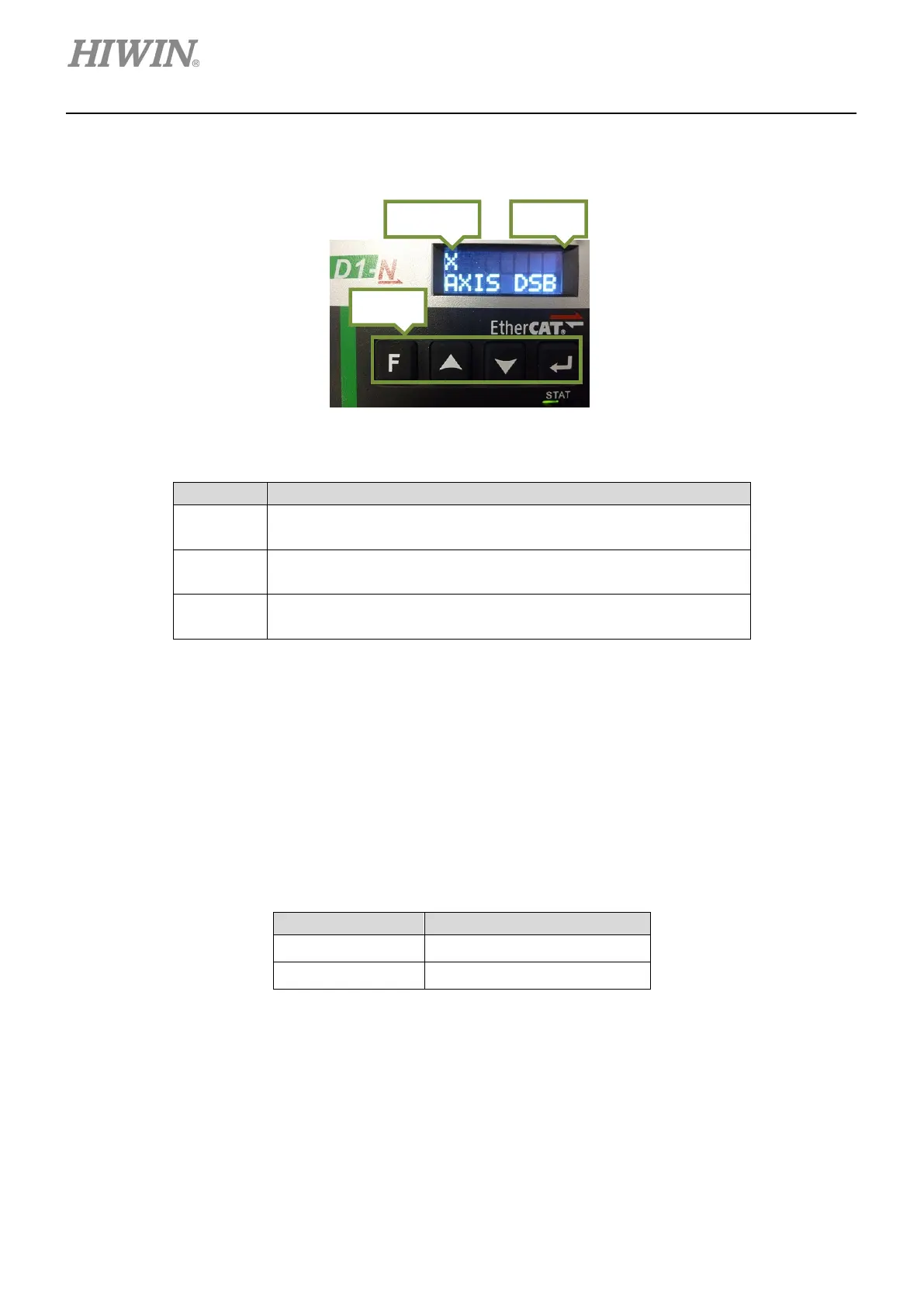

7.1 LCD panel
Figure 7.1.1 LCD panel
Table 7.1.1 Function description
Name
Function
Display
Display
s servo drive status, error or warning message and axis
name.
Axis name
Displays axis name and error or warning message. Axis name can
be modified in Lightening, please refer to section 5.1.3.
Keys
Includes F key, Up key, Down key and Enter key.
The keys on D1-N servo drive have no function.
7.2 LCD display description
When power is applied to the servo drive, the LCD display shows the enabling status of the connected
motor. If the servo drive has not been configured before, the LCD display shows “NOT CNFG” in the first
line of the LCD display.
Table 7.2.1 Enabling status
Displayed Symbol Description
AXIS RDY The motor is enabled
AXIS DSB The motor is disabled.
If an error or a warning occurs, the error message or warning message will be shown in the second line,
as figure 7.2.1. For the description of error message or warning message, please refer to table 7.2.2 and
7.2.3. For D1-N firmware version 0.808, D1-N CoE firmware version 0.513 and previous version, the LCD
display shows the abbreviation of error message or warning message. For D1-N firmware version 0.809,
D1-N CoE firmware version 0.514 and later version, the LCD display shows error code or warning code.
Axis name
Display
Keys
