D1-N Series Servo Drive User Manual Errors And Warnings
HIWIN MIKROSYSTEM Corp. 9-7
9.2 Error and warning log
When D1-N servo drive detects error or warning, the error or warning will be displayed in the main window
of Lightening and will be saved in Errors and Warnings Log, as figure 9.2.1. To prevent users from
missing the errors or warnings reported by the servo drive, the errors or warnings occur after power on
(24 Vdc) are saved in Errors and Warnings Log. In Time log tab of Errors and Warnings Log window,
errors and warnings occur after power on are recorded in time sequence. The time when each error or
warning occurs will also be recorded.

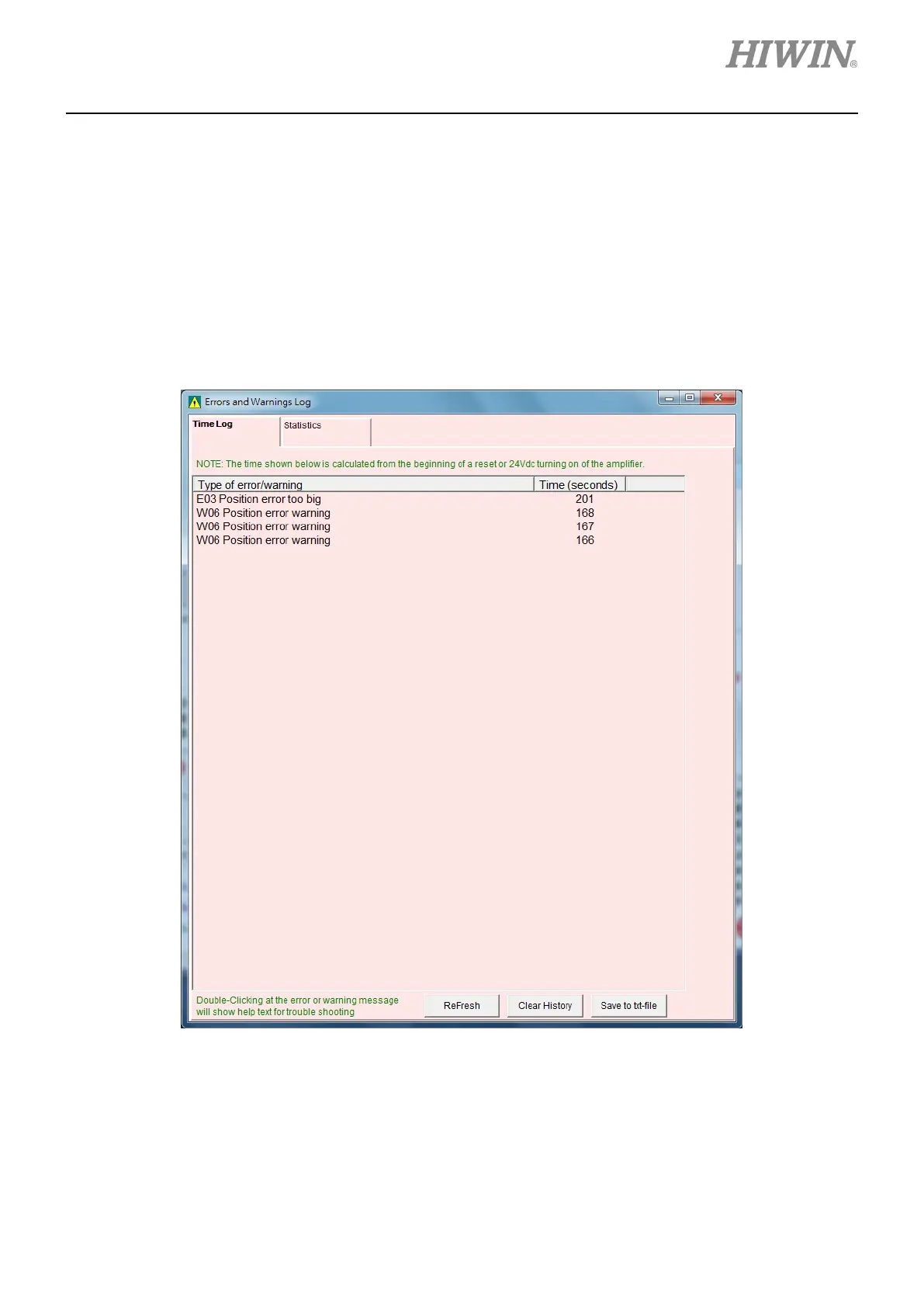

Figure 9.2.1
The frequencies of occurring errors and warnings are saved in Statistics tab of Errors and Warnings
Log window. Users can know which error or warning frequently occurs.
