D1-N Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM Corp. 4-15

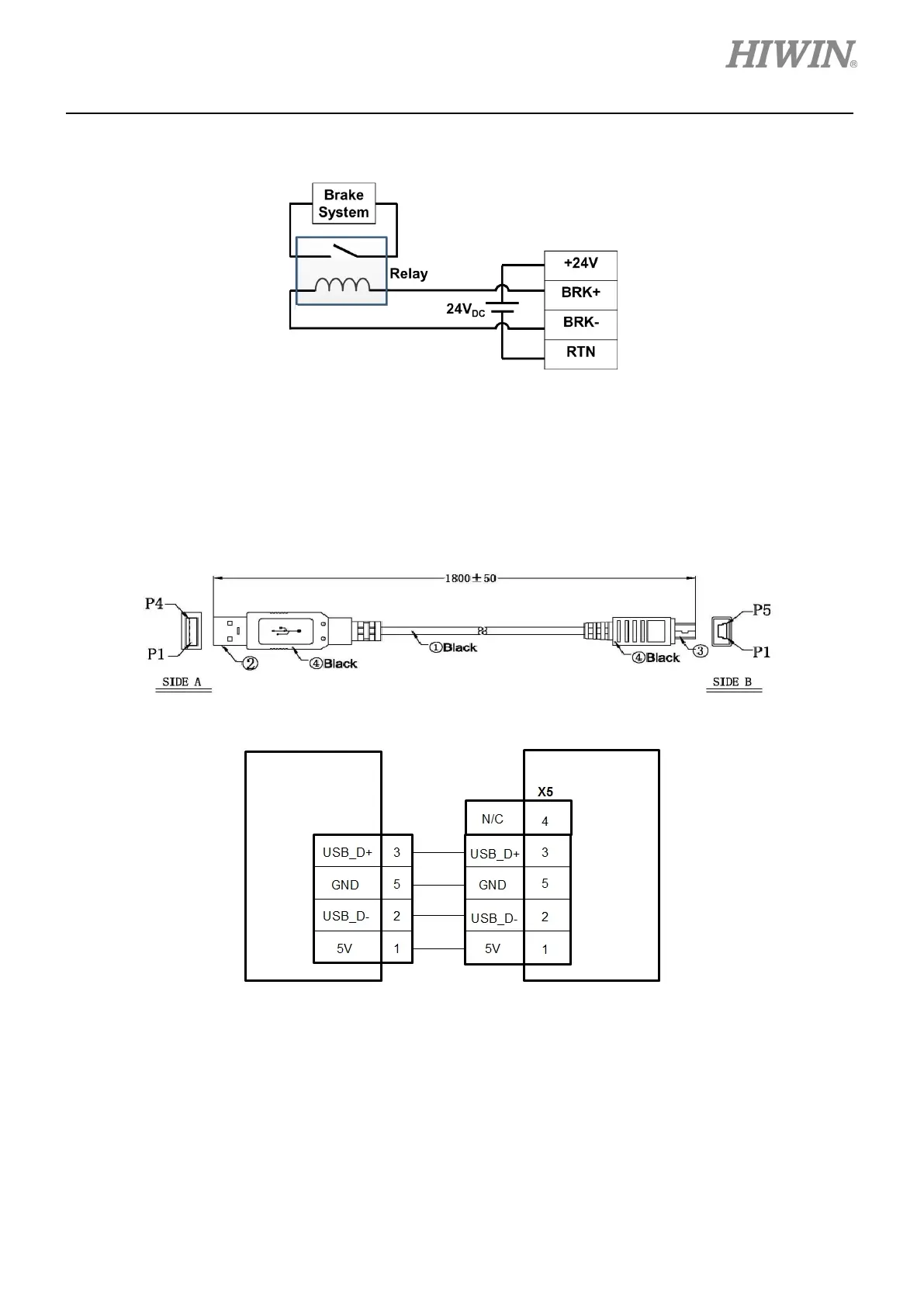

(2) Wiring example
Figure 4.5.2
4.6 USB communication (X5)
Connect to PC by mini USB cable (HIWIN USB 2.0 type A to mini-B 5-pin (1.8 M) cable is suggested.) for
monitoring, test run, parameter writing, etc. For servo drive operation, please refer to chapter 5.
Figure 4.6.1
Figure 4.6.2
4.7 Control signals (X6)
The high-level input voltage and low-level input voltage for pulse command must be greater than 2 V and
lower than 0.8 V.
