Hiwin D1-N Series User Manual

D1-N Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM Corp. 4-7
MD17UE01-1906

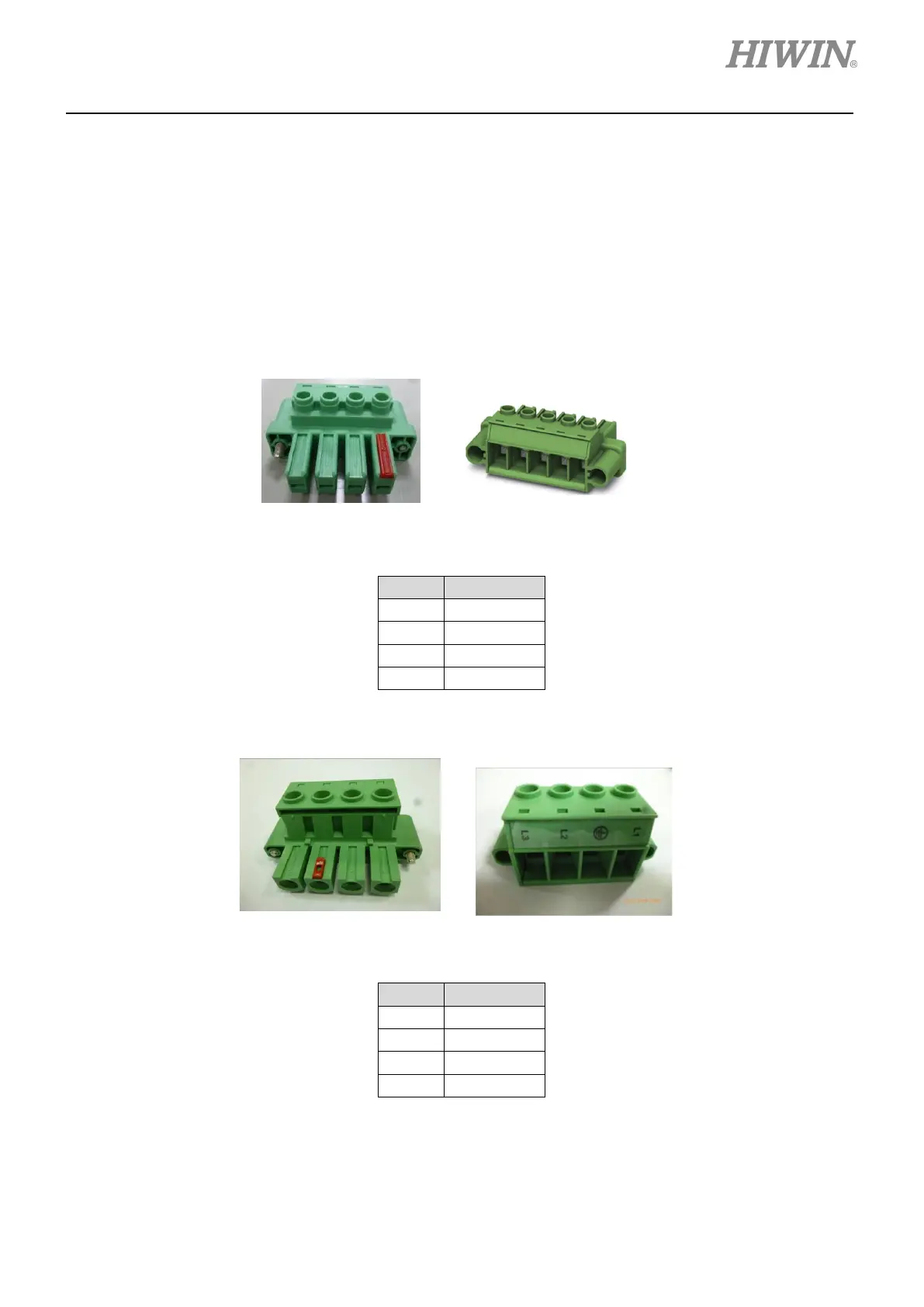

4.2 Main power (X1)
Ensure the servo drive is properly grounded before connecting to its main circuit. If the power for the
servo drive is turned off during operation, the motor will not be disabled immediately, since there is
residual power in capacitors. It is suggested to use STO safety function for emergency stop.
(1) Connector
A. D1-N-09/18/36
Figure 4.2.1 Connector: PC 5/4-STF1-7, 62 (1777859)
Table 4.2.1
Pin
Signal
1 L3
2
PE
3
L2 (N)
4
L1
B. D1-N-90
Figure 4.2.2 Connector: PC 16/4-STF-10.16 (1967472)
Table 4.2.2
Pin
Signal
1
L1
2 PE
3
L2 (N)
4
L3
4
2
1
3
4
1
2
3
