D1-N Series Servo Drive User Manual Wiring
4-8 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906

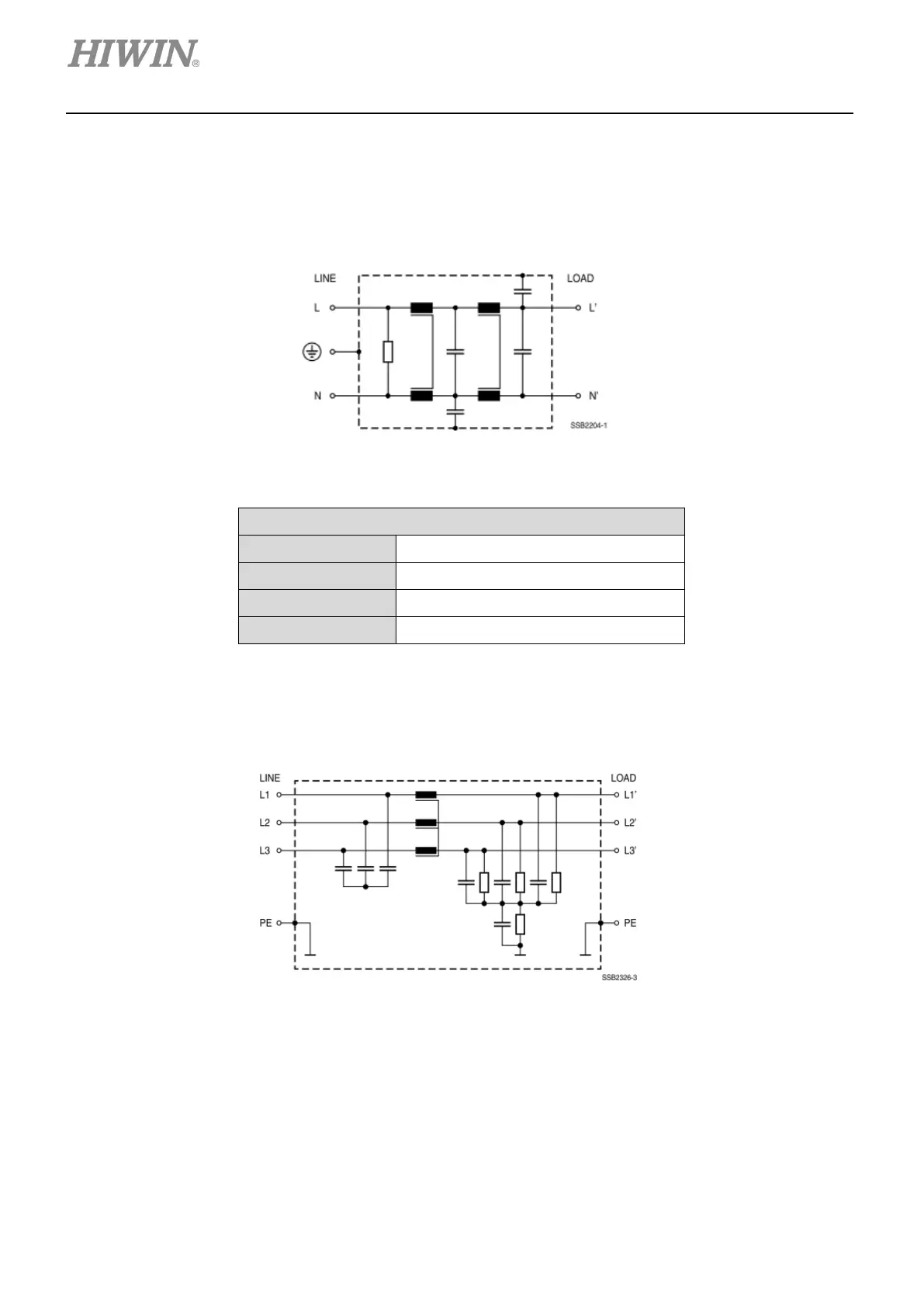

(2) Wiring example
A. Wiring for single-phase filter for D1-N-09/18/36 servo drive
For selecting single-phase filter for D1-N-09/18/36 servo drive, B84113H filter (Part number:
B84113H0000G120) from TDK (EPCOS) is suggested.
Figure 4.2.3 Wiring diagram for single-phase filter (Part number: B84113H0000G120) (Reference: Datasheet of B84113H filter)
Table 4.2.3
Filter (Part number: B84113H0000G120)
Rated Voltage 250 Vac, 50/60 Hz
Rated Current 20 A at 40
o
C
Leakage Current 1.73 mA (250 Vac, 50 Hz)
Approval IEC 60939, UL 1283, CSA C22.2 No.8
B. Wiring for three-phase filter for D1-N-09/18/36 servo drive
For selecting three-phase filter for D1-N-09/18/36 servo drive, B84143A filter (Part number:
B84143A0020R106) from TDK (EPCOS) is suggested.
Figure 4.2.4 Wiring diagram for three-phase filter (Part number: B84143A0020R106) (Reference: Datasheet of B84143A filter)
