D1-N Series Servo Drive User Manual Parameter Comparison
12-2 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906
12.1 Comparing the parameters in RAM and Flash
When motor parameters are modified but have not been saved to the Flash, Compare parameters RAM
to FLASH window appears as users are closing Lightening or saving error map parameters to the Flash
(Refer to section 6.9.1.), as figure 12.1.1. This window is to remind users that parameters are modified but
have not been saved to the Flash.

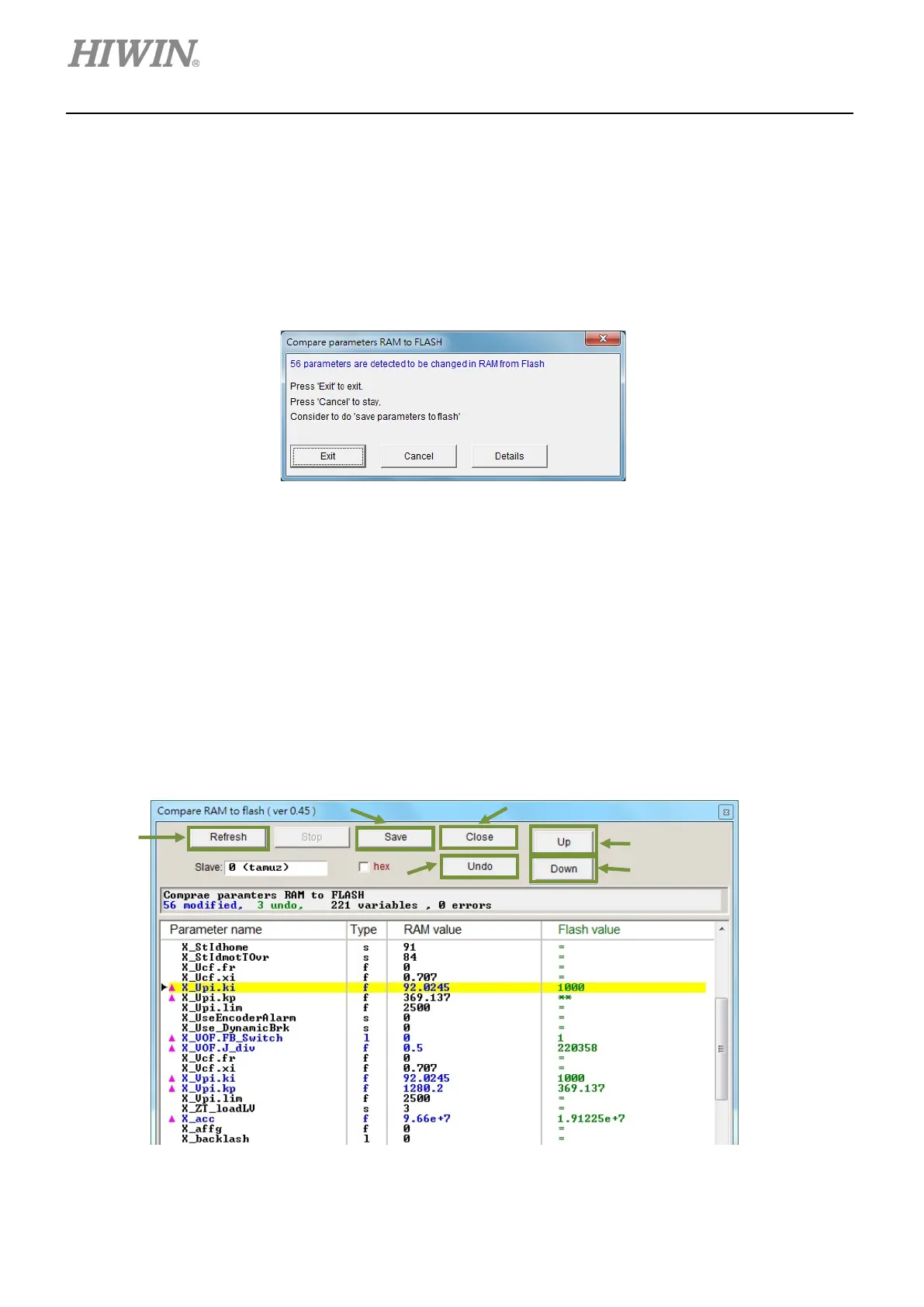

Figure 12.1.1Compare parameters RAM to FLASH window
Click on Details button to do further comparison. Users are allowed to check which parameter has
different settings in RAM and Flash. If the settings in RAM and Flash are not identical, the parameter and
its value will be shown in blue.
The following two symbols may also appear in the Flash value column.
(1) =: The value saved in the Flash is the same as the one in the RAM.
(2) ＊＊: Users undid the parameter before. The value in the RAM is changed to the one saved in the
Flash.
Figure 12.1.2Compare RAM to flash window
○
5
○
4
○6
○
3
○1
○
2
