D1-N Series Servo Drive User Manual Specifications
HIWIN MIKROSYSTEM Corp. 2-11
2.3 Installation
When the servo drive is installed in an electric box, ensure the servo drive is mounted with conductive
screws. The insulating materials, such as paint, on the contact surface of the electric box must be
removed for grounding the servo drive through the electric box. For further information about grounding,
please refer to chapter 15. The suction hole and vent hole of the servo drive must not be obstructed.

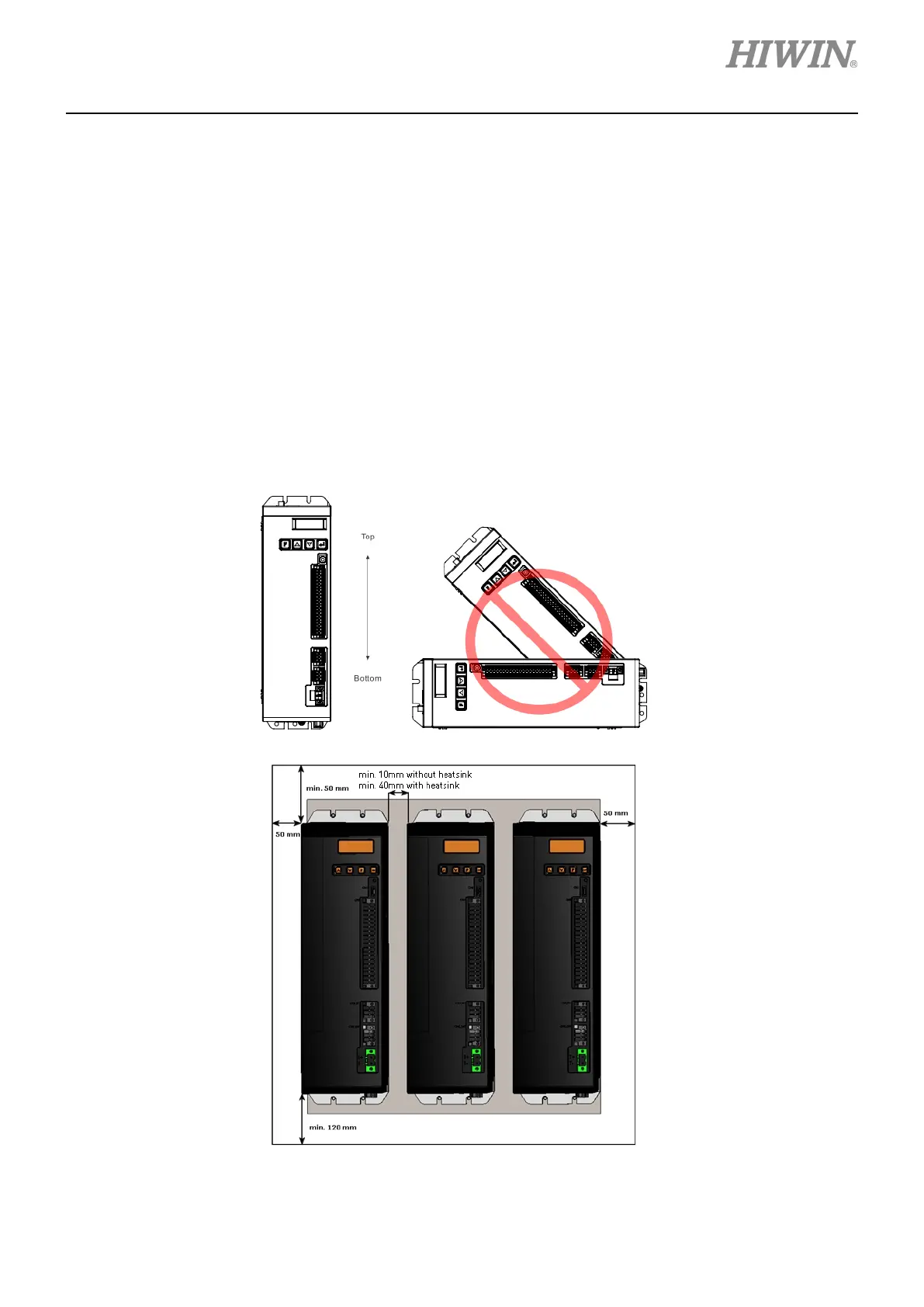

Install the servo drive according to the specified orientation. Otherwise the servo drive may malfunction.
To ensure well cooling and circulation effect, there must be enough clearance space between the servo
drive and the adjacent objects or baffles. While installing multiple servo drives, if the servo drives are
without heat sinks, the clearance space between two servo drives must be at least 10 mm. If the servo
drives are with heat sinks, the clearance space between two servo drives must be at least 40 mm. Install
a fan in the electric box to facilitate heat dissipation.
Figure 2.3.1
Figure 2.3.2
