D1-N Series Servo Drive User Manual Updating Firmware And Loading PDL

HIWIN MIKROSYSTEM Corp. 13-5

MD17UE01-1906

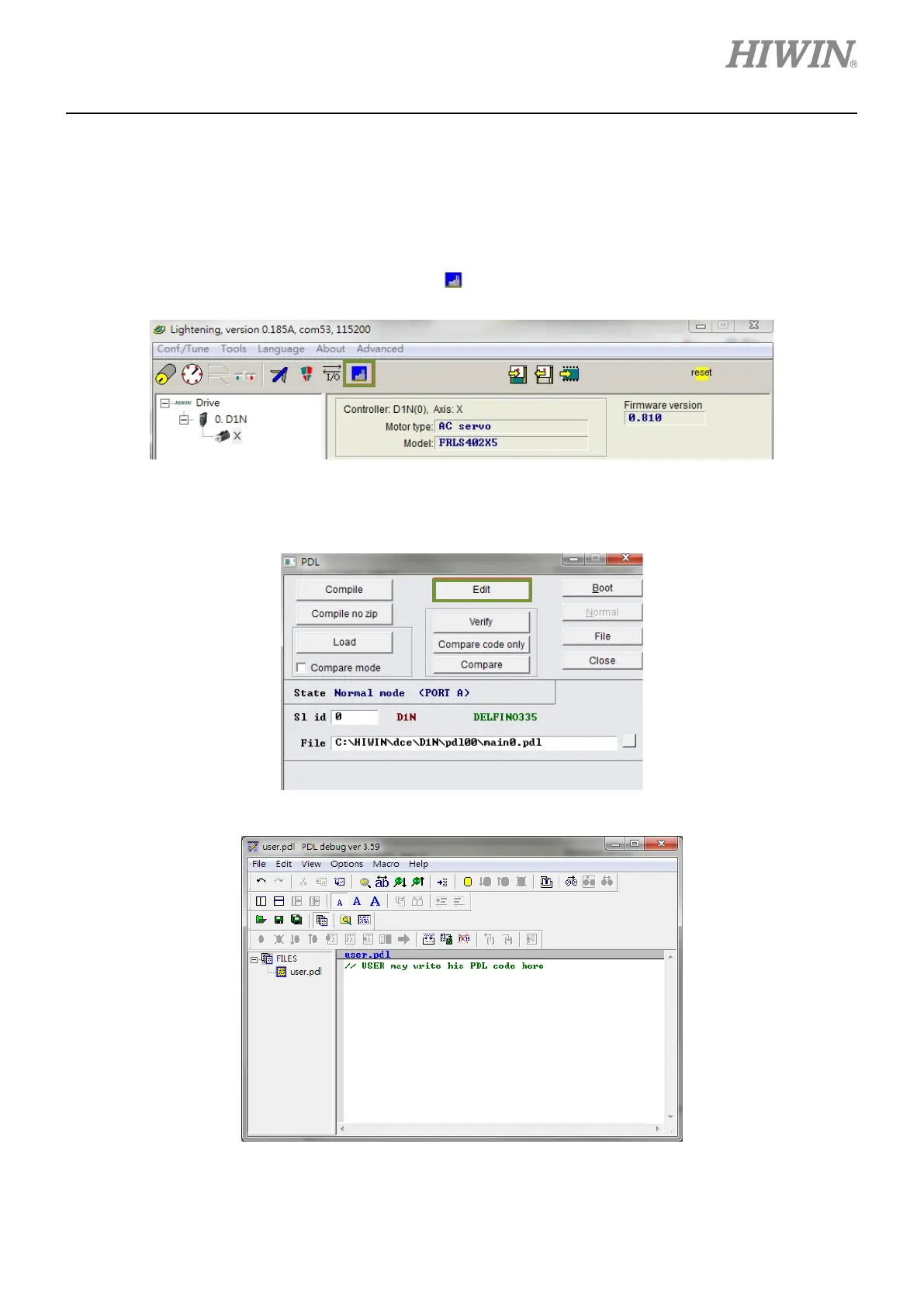

13.2 Loading PDL program

Follow the steps provided below to load PDL program to the servo drive. To clear the PDL program in the

servo drive, please delete the program codes in user.pdl.

Step 1: To open PDL window, click on the icon (

) indicated in figure 13.2.1.

Figure13.2.1

Step 2: Click on Edit button to open the interface for editing PDL program.

Figure13.2.2

Figure13.2.3
