Hiwin D1-N Series - Dimensions

D1-N Series Servo Drive User Manual Specifications
HIWIN MIKROSYSTEM Corp. 2-9
MD17UE01-1906
2.2.2 Dimensions
The dimensions and mounting holes of D1-N servo drives are shown in figure 2.2.2.1 to 2.2.2.3. The unit
is mm. The diameter of the mounting hole is 4 mm.

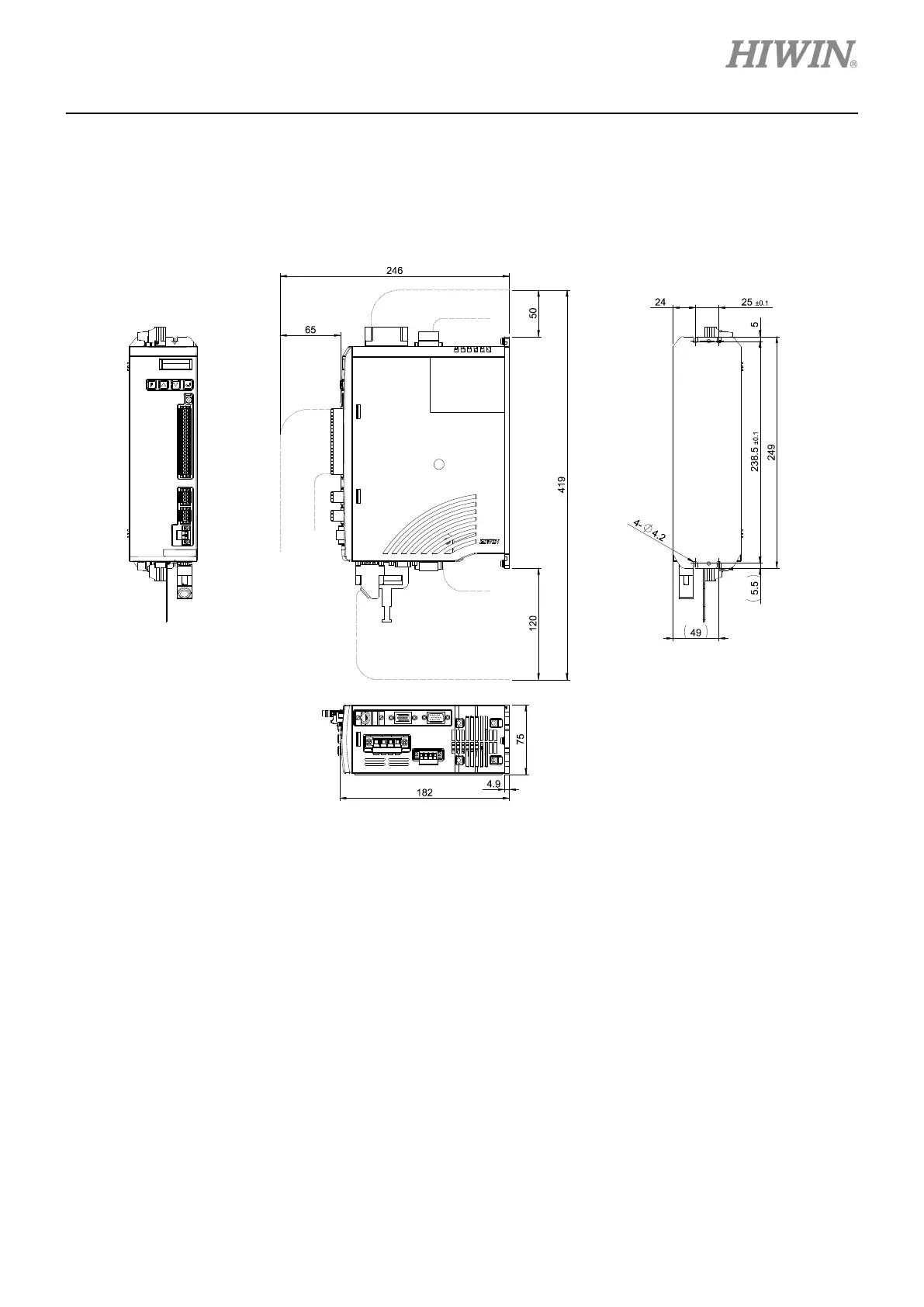

Figure 2.2.2.1 D1-N-09 and D1-N-18 servo drives
