Hiwin D1-N Series User Manual

D1-N Series Servo Drive User Manual Wiring
4-20 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906
4.7.3 Encoder output
The encoder output is 5 V differential output.

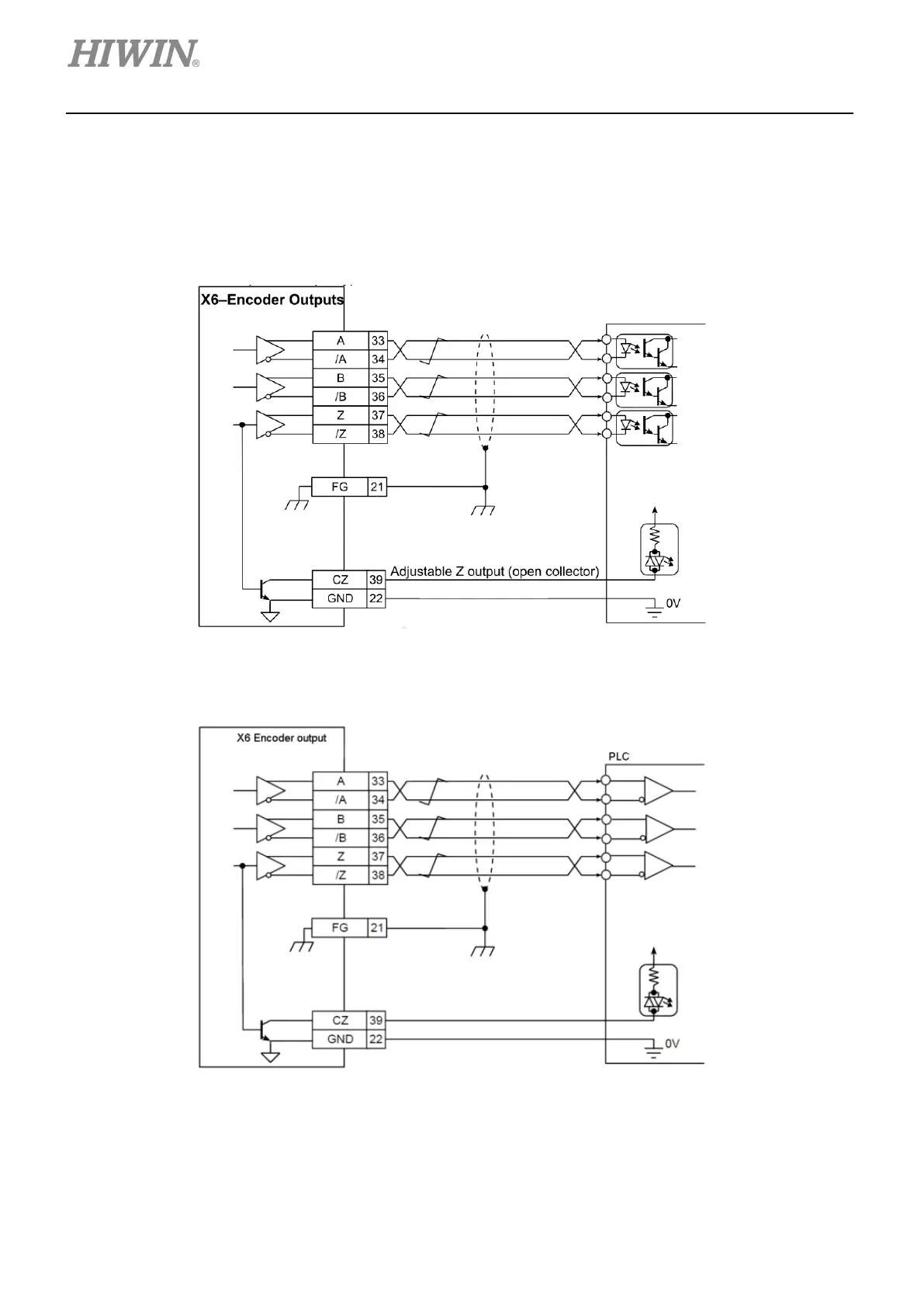

A. Optical coupler
Figure 4.7.3.1
B. Differential type
Figure 4.7.3.2
