D1-N Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM Corp. 4-19
MD17UE01-1906

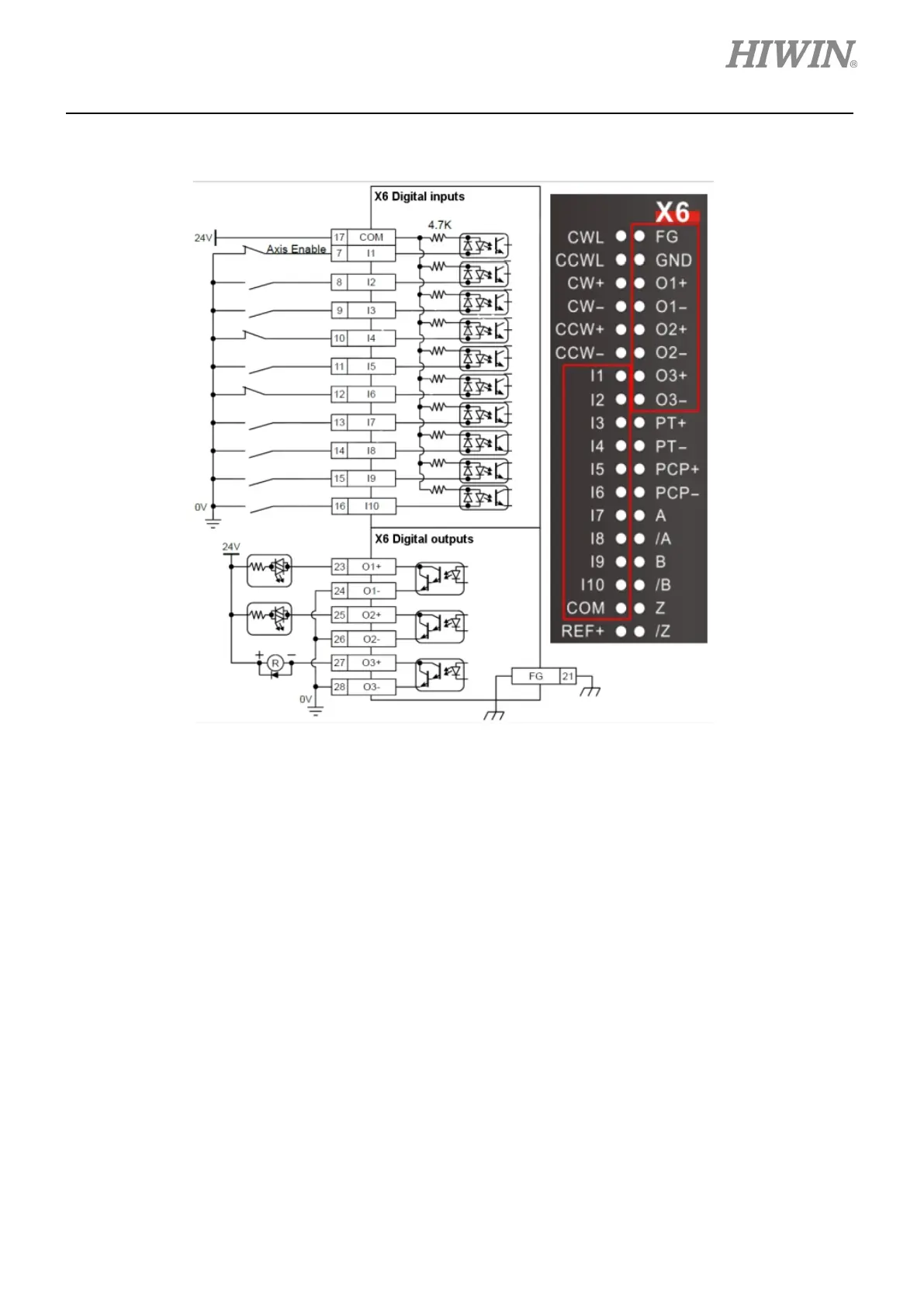

B. NPN type: COM is connected to 24 V.
Figure 4.7.2.2
