Hiwin D1-N Series User Manual

D1-N Series Servo Drive User Manual Servo Drive Configuration
HIWIN MIKROSYSTEM Corp. 5-25
MD17UE01-1906
(2) It is not suggested to use Hall phase check function for application of short travel distance (within two
pole pitches).

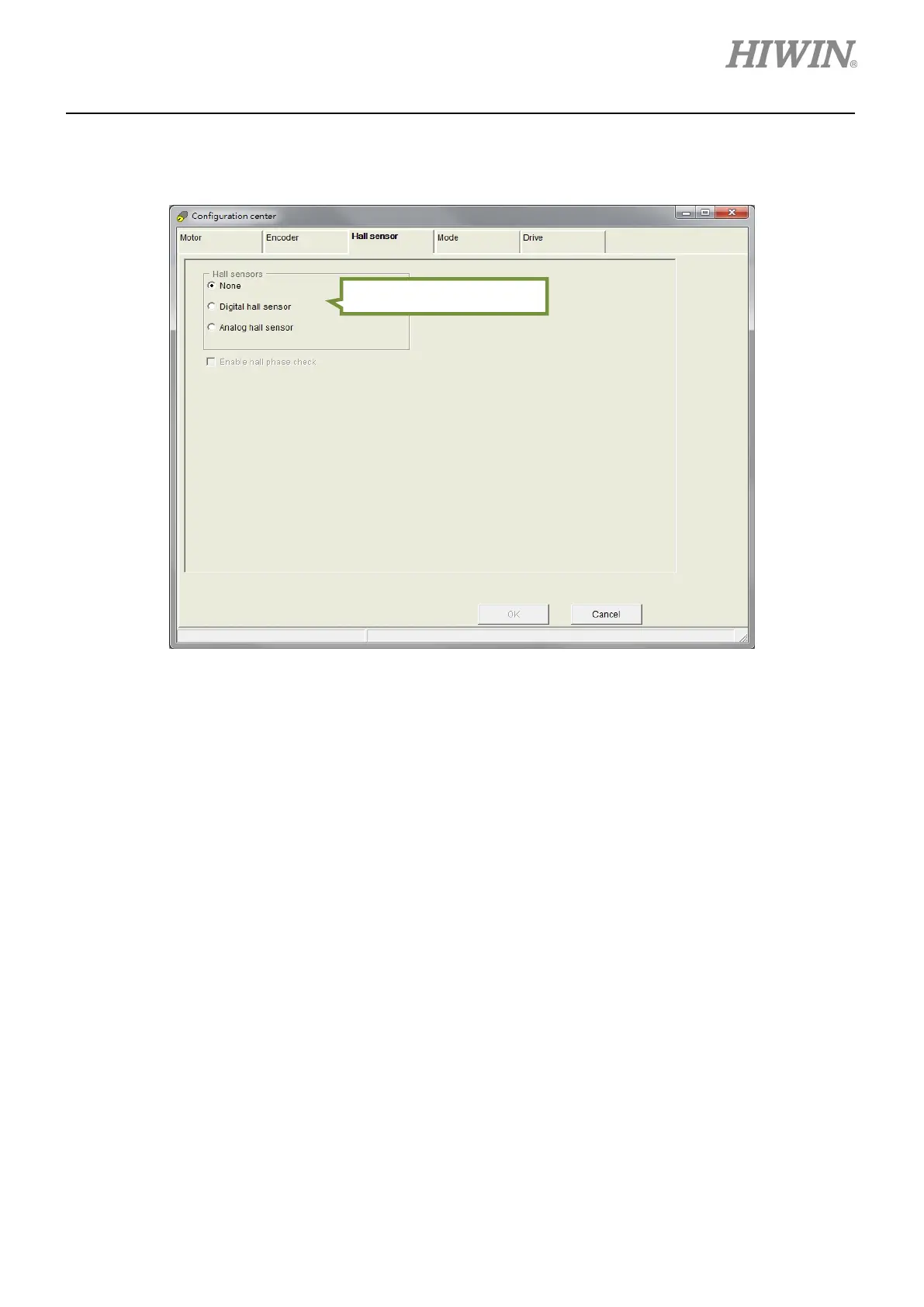

Figure 5.2.3.1
5.2.4 Setting operation mode
The setting page for operation mode is shown as figure 5.2.4.1. The operation mode of the servo drive
should be set after the parameters of motor, encoder and Hall sensor are set.
Selecting Hall sensor type
