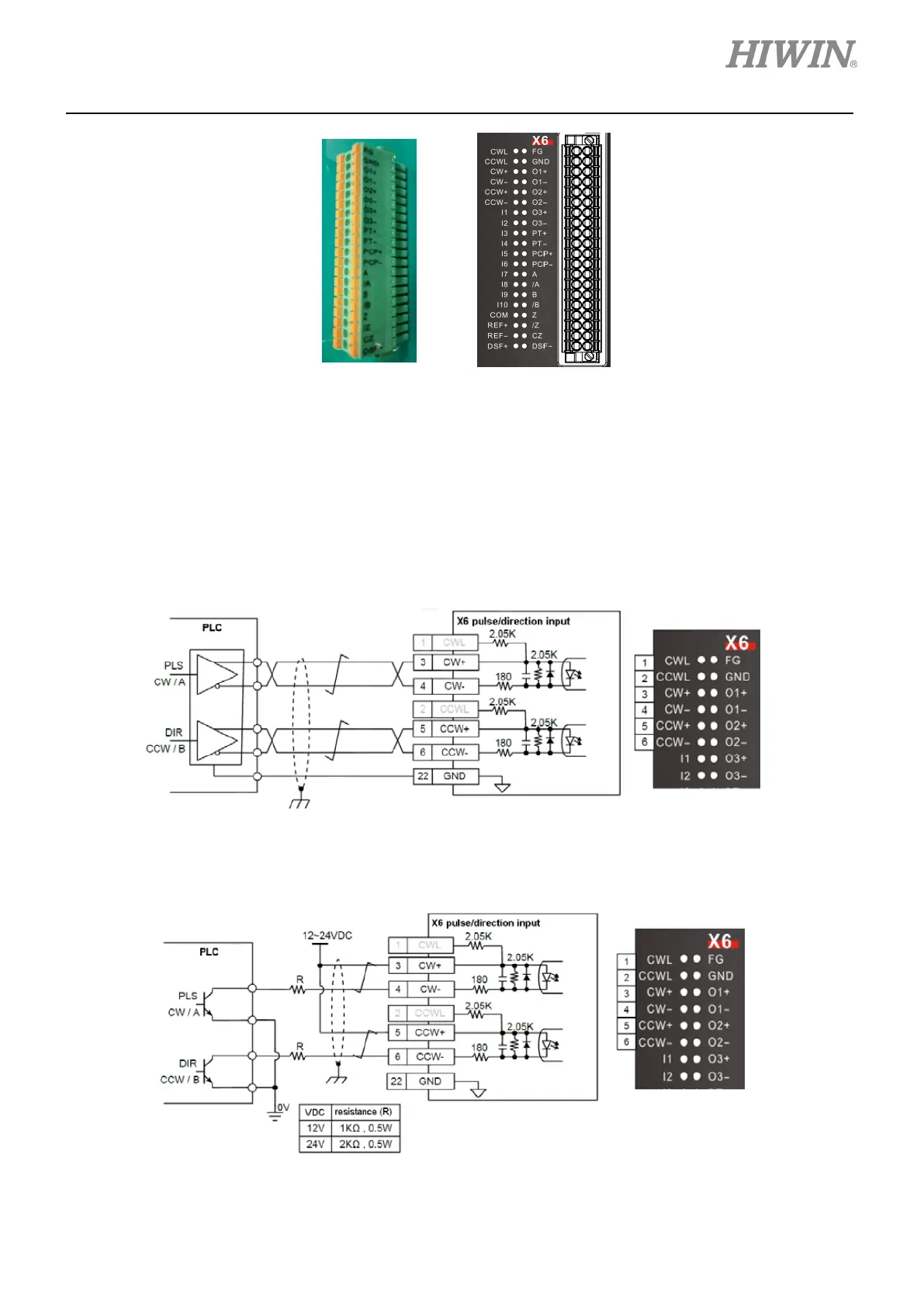

D1-N Series Servo Drive User Manual Wiring

HIWIN MIKROSYSTEM Corp. 4-17

MD17UE01-1906

Figure 4.7.1 Connector: R-DFMC 1.5/20-STF-3.5 (1790470)

4.7.1 Digital command

Optical coupler: HCPL-060L, 5 mA < I

< 15 mA, 1.4 V < V

< 1.75 V

A. Differential input

Figure 4.7.1.1

B. Single-ended input (With external resistor)

Figure 4.7.1.2
