D1-N Series Servo Drive User Manual Parameter Comparison
HIWIN MIKROSYSTEM Corp. 12-3
MD17UE01-1906
The buttons in Compare RAM to flash window are described as below:
○1 Save: Save parameter to the drive Flash
○2 Close: Close the window.
○3 Up: Go to the previous parameter which has different settings in the RAM and Flash.
○4 Down: Go to the next parameter which has different settings in the RAM and Flash.
○5 Undo: Change the value of the selected parameter. Its value in the RAM is changed to the one saved
in the Flash.
○6 Refresh: Compare the parameters in the RAM and Flash again.
○7 Redo: Cancel Undo of the selected parameter.

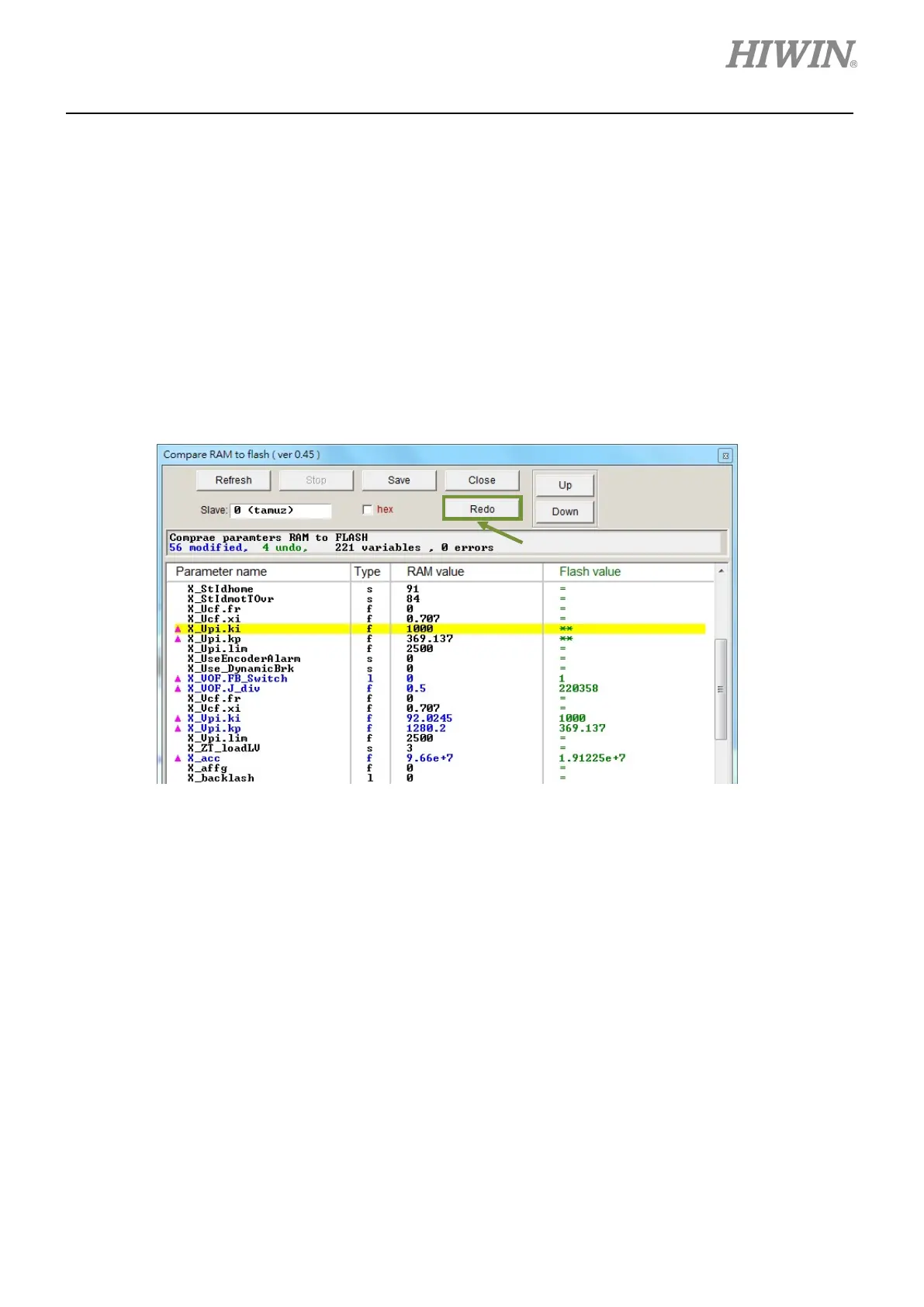

Figure 12.1.3Compare RAM to flash window
○7
