D1-N Series Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM Corp. 4-9
MD17UE01-1906
Table 4.2.4
Filter (Part number: B84143A0020R106)
Rated Voltage 520/300 Vac, 50/60 Hz
Rated Current 20 A at 50
o
C
Leakage Current 3.1 mA (520/300 Vac, 50 Hz)
Approval IEC 60939, UL 1283, CSA C22.2 No.8
C. Wiring for three-phase filter for D1-N-90 servo drive
For selecting three-phase filter for D1-N-90 servo drive, B84143A filter (Part number:
B84143A0035R166) from TDK (EPCOS) is suggested.

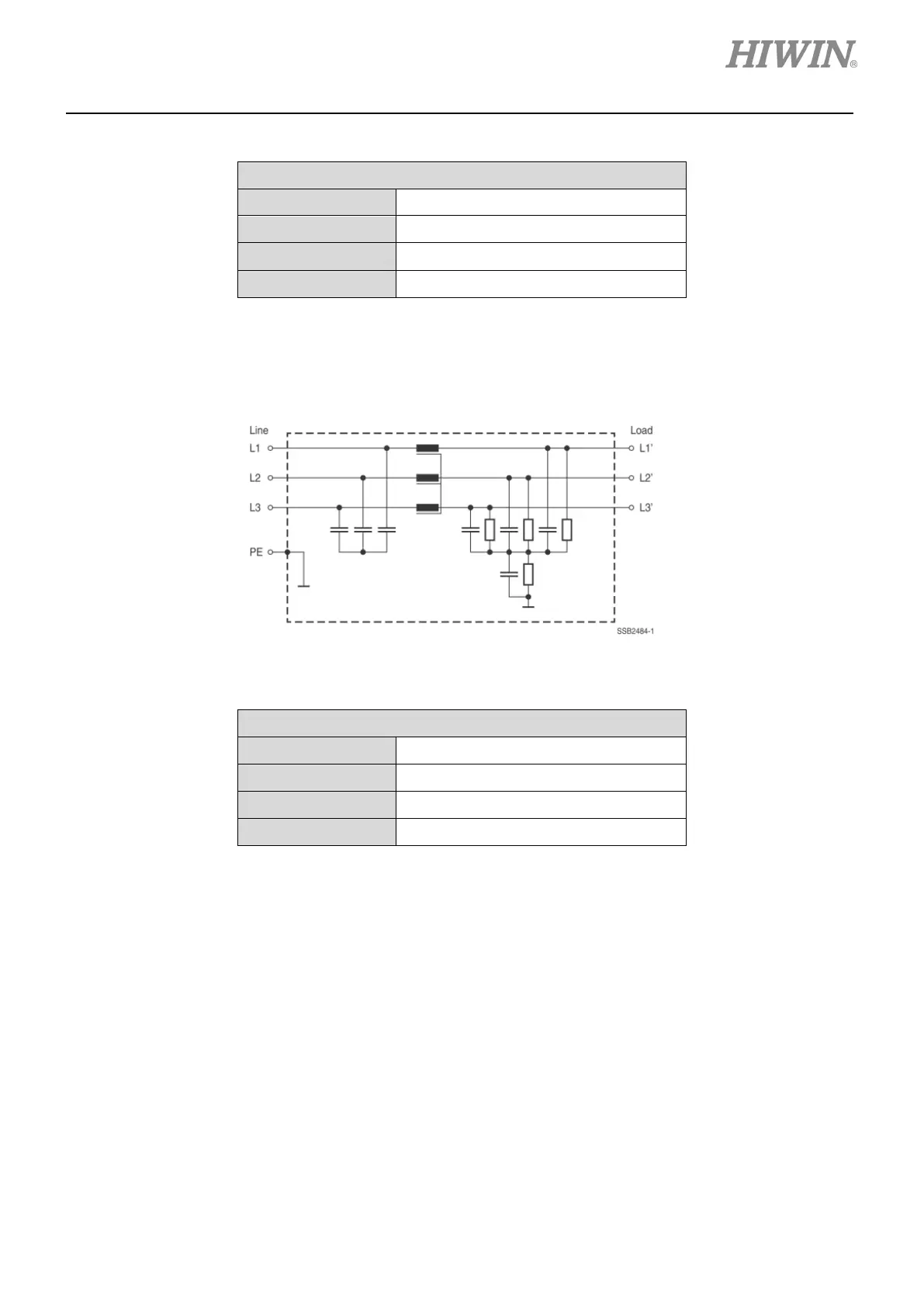

Figure 4.2.5 Wiring diagram for three-phase filter (Part number: B84143A0035R166) (Reference: Datasheet of B84143A filter)
Table 4.2.5
Filter (Part number: B84143A0035R166)
Rated Voltage 520/300 Vac, 50/60 Hz
Rated Current 35 A @ 50
o
C
Leakage Current 5.0 mA (520/300 Vac, 50 Hz)
Approval IEC 60939, UL 1283, CSA C22.2 No.8
 How to select no-fuse breaker (NFB)
While using no-fuse breaker for current shunt, its rated capacity should be 1.5 to 2.5 times of the
rated current of the servo drive.
While using one servo drive: I
B
= C×I
n
While using two or more servo drives, but do not power on at the same time: I
B
= (ΣI
n
-I
nMAX
)×K＋C
MAX
I
nMAX
While using two or more servo drives, and power on at the same time: I
B
= C1×I
n1
＋C2×I
n2
＋‧‧‧‧＋CN×I
nN
Note:
I
B
: Rated current of no-fuse breaker
I
n
: Rated current of servo drive
