D1-N Series Servo Drive User Manual Tuning
HIWIN MIKROSYSTEM Corp. 6-19

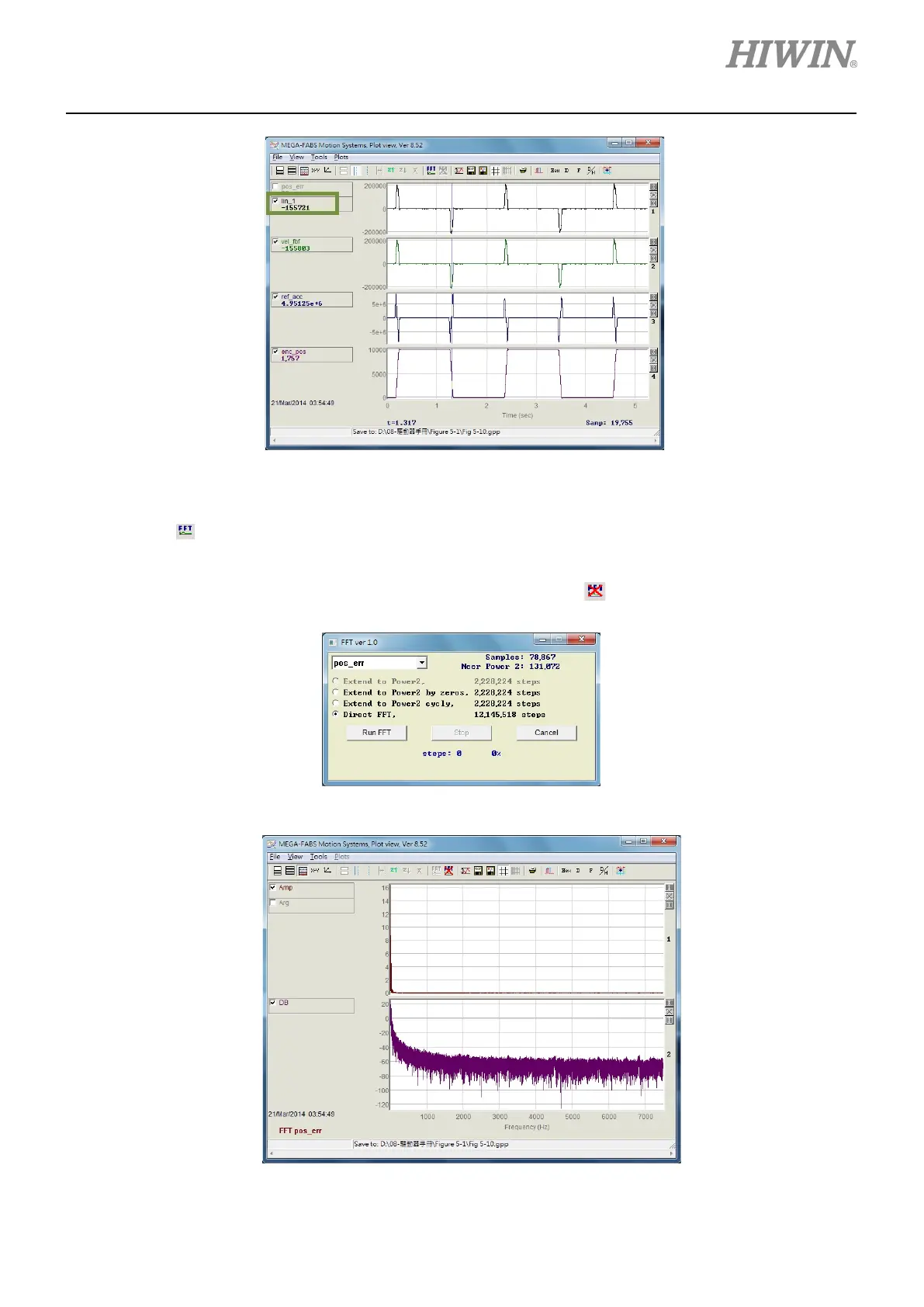

Figure 6.5.3.3
Fast Fourier transform (FFT)
Click on
to show FFT window as figure 6.5.3.4. Select physical quantity to do fast Fourier
transform. Take pos_err as an example here. Click on Run FFT button to generate the graph as
figure 6.5.3.5. To cancel fast Fourier transform, please click on
.
Figure 6.5.3.4
Figure 6.5.3.5
