Hiwin D1-N Series User Manual

D1-N Series Servo Drive User Manual Tuning
6-58 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906

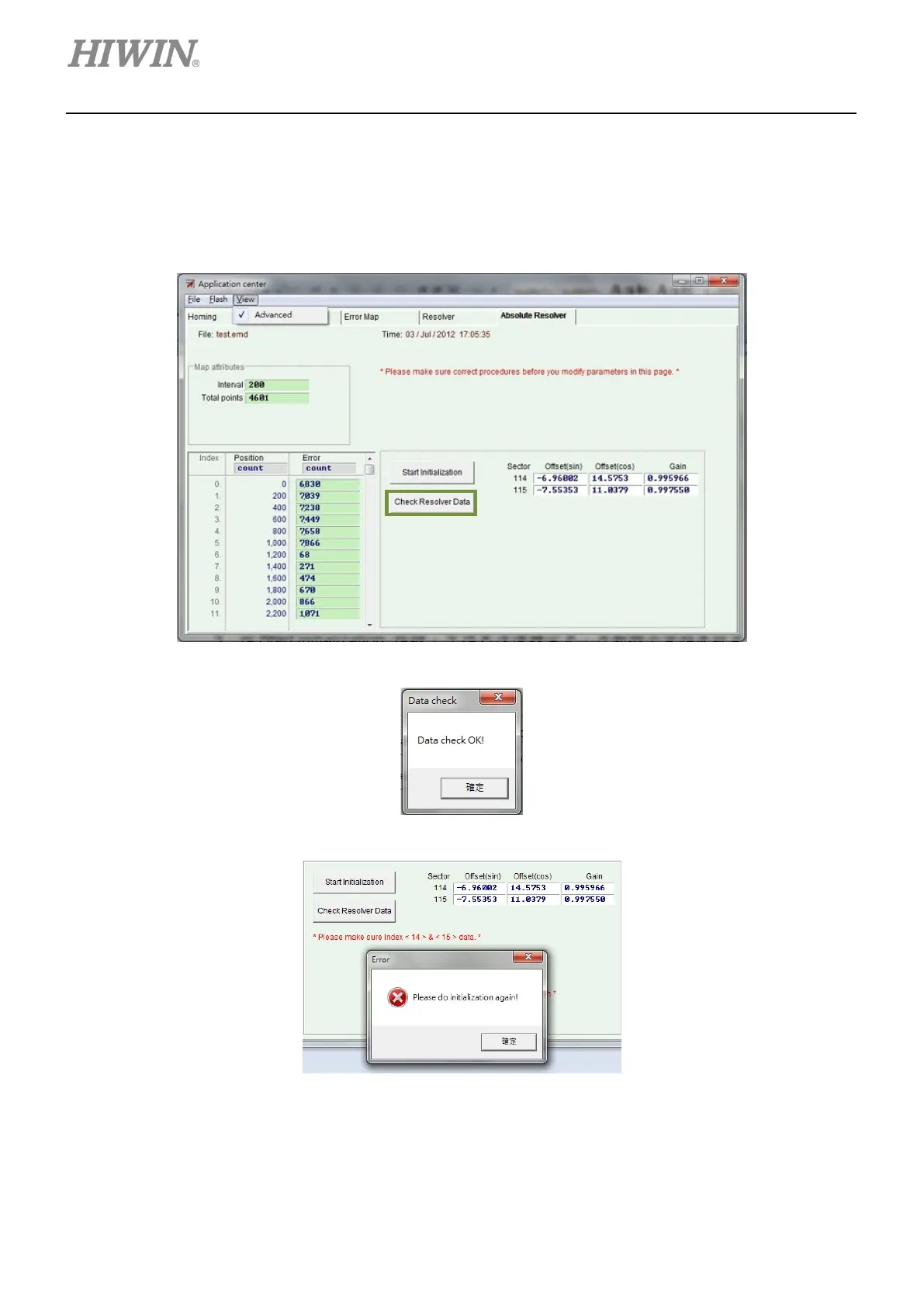

Step 6: Click on Check Resolver Data button in figure 6.11.1.2. If the check is OK, Data check window
appears as figure 6.11.1.3. If not, Error window appears as figure 6.11.1.4 and please repeat
step 5. If the check fails for three times, go to Resolver tab and decrease the value of Learning
velocity. Then repeat step 5.
Figure 6.11.1.2
Figure 6.11.1.3
Figure 6.11.1.4
