D1-N Series Servo Drive User Manual Motor Power Cable Shielding And Grounding
HIWIN MIKROSYSTEM Corp. 15-3

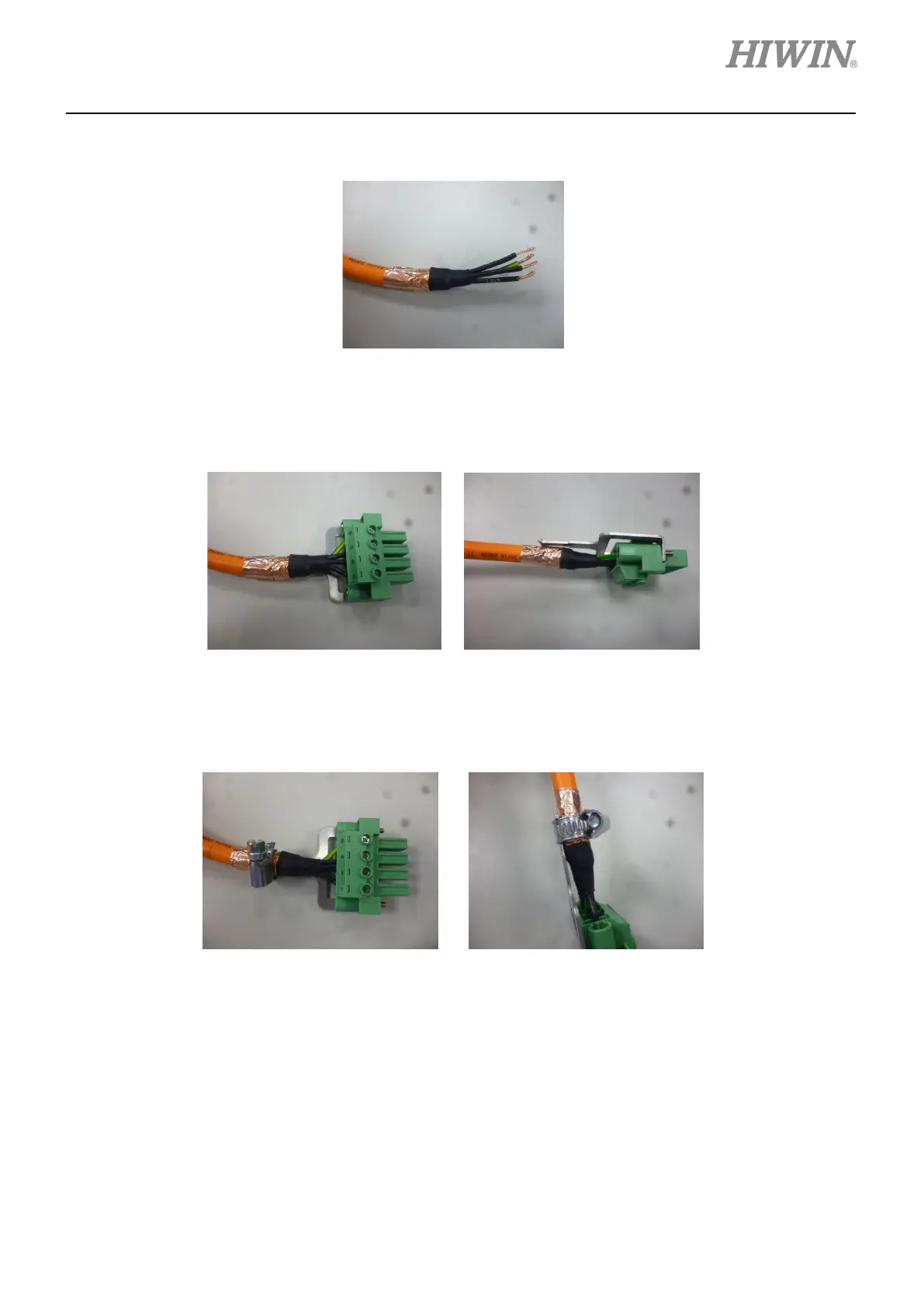

(4) Put a 2 cm heat shrink to fix copper foil tape and wires.
Figure15.1.4
(5) Fix the wires with the terminal block by referring to the symbols indicated on the servo drive X3
connector. Ensure the shield plate is in contact with the exposed copper foil tape.
Figure15.1.5
(6) Use the clamp provided in the accessory kit to tighten the shield plate and the cable by the part
covered by copper foil tape. Ensure they are securely tightened.
Figure15.1.6
(7) Move the heat shrink in step 1 to the part covered by copper foil tape and fix it. Ensure the copper foil
tape does not loosen.
To Next Page
