Hiwin D1-N Series User Manual

D1-N Series Servo Drive User Manual Motor Power Cable Shielding And Grounding
HIWIN MIKROSYSTEM Corp. 15-5
MD17UE01-1906

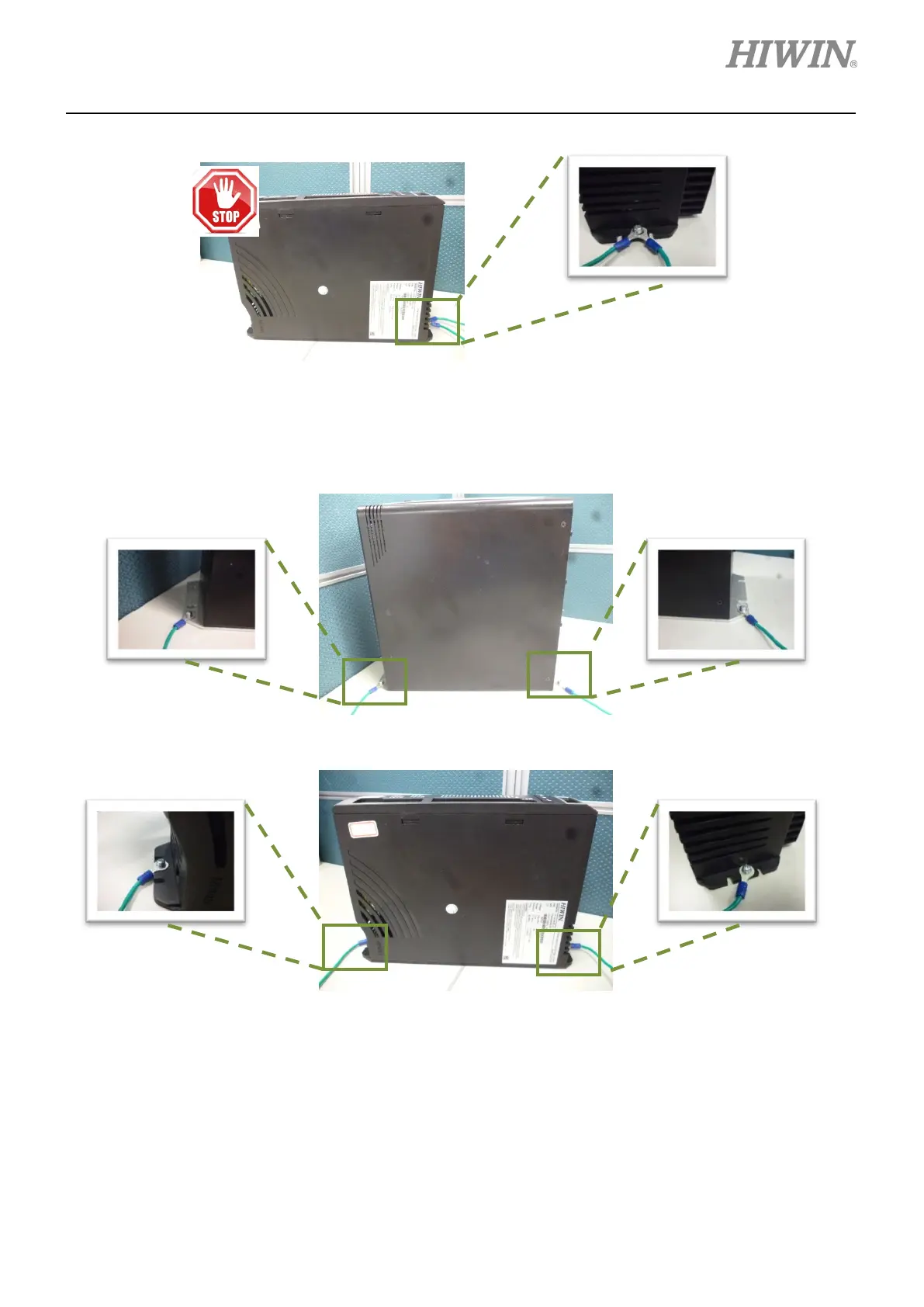

Figure15.2.3 Prohibited wiring method of D1-N-09/18/36
(4) If it is necessary to connect two ground wires, please connect them to the separate ground terminals,
as figure 15.2.4 and 15.2.5.
Figure15.2.4 Grounding of D1-N-90
Figure15.2.5 Grounding of D1-N-09/18/36
